DC-DC Converter 12V 24V to 5V 10A 50W Step Down Power Supply Voltage Transformer Waterproof Buck Module for Electric Bike Motorcycle LED
| Product Name | DC-DC Converter 12V 24V to 5V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 12V / 24V |
| Input Voltage Range | DC 8-35V |
| Output Voltage | DC 5V |
| Output Current | 10A |
| Output Power | 50W |
| Conversion Efficiency | >93% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -25℃ ~ +65℃ ( extreme -40~80℃, If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Over-temperature | |
| Short circuit protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

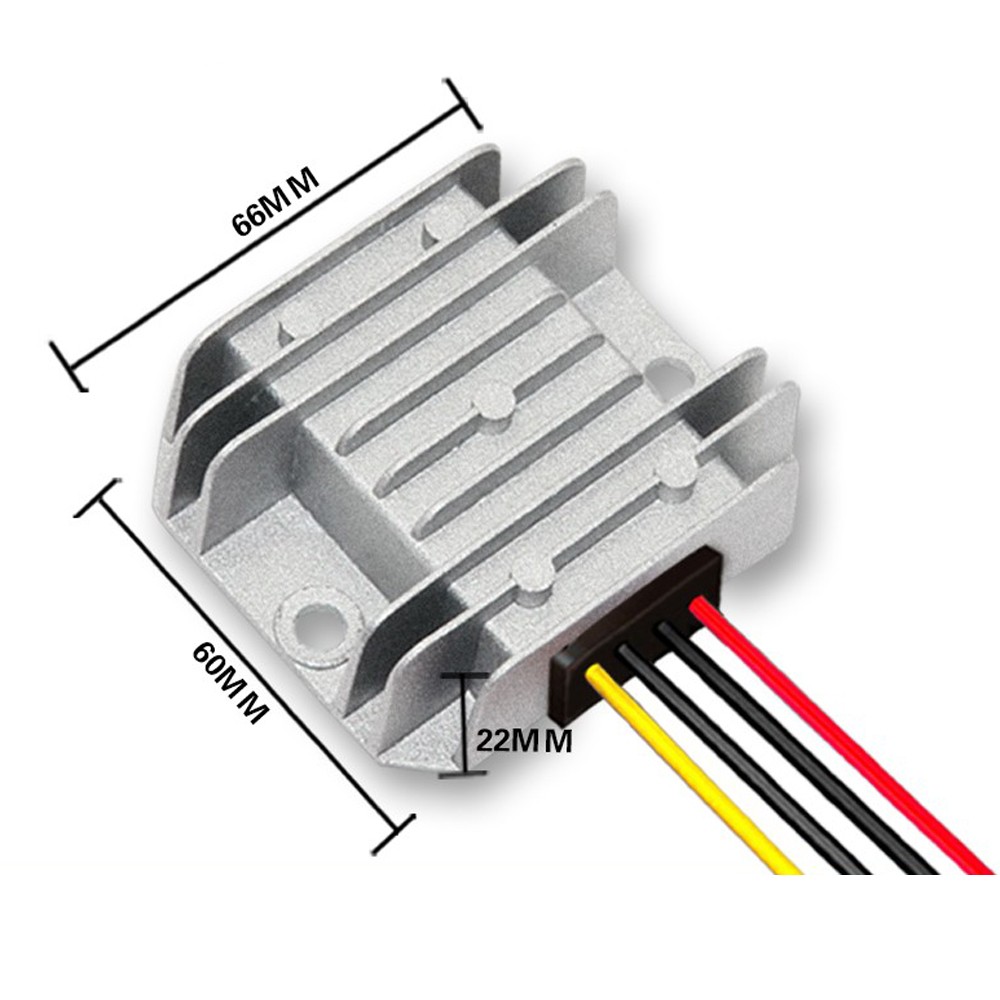

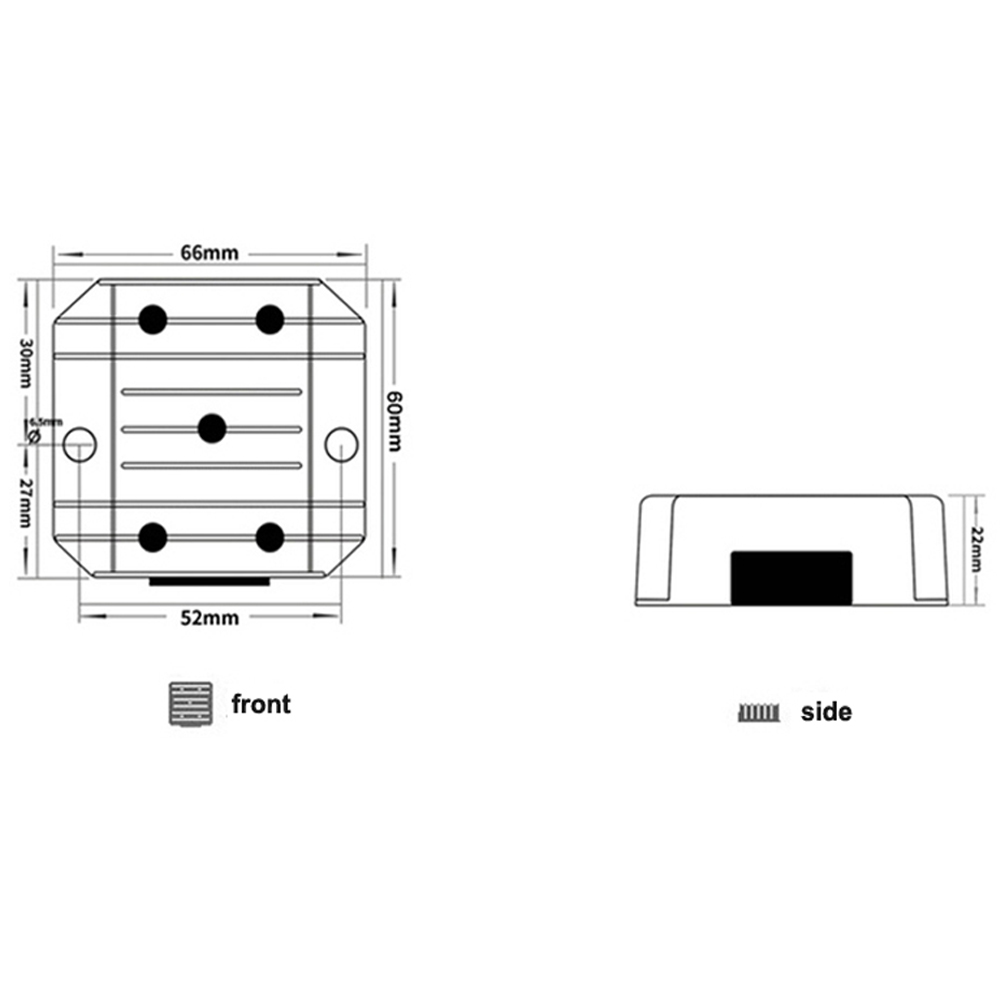

| Product Size (L x W x H) | 66*60*22mm |
| Product Weight | 104g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
