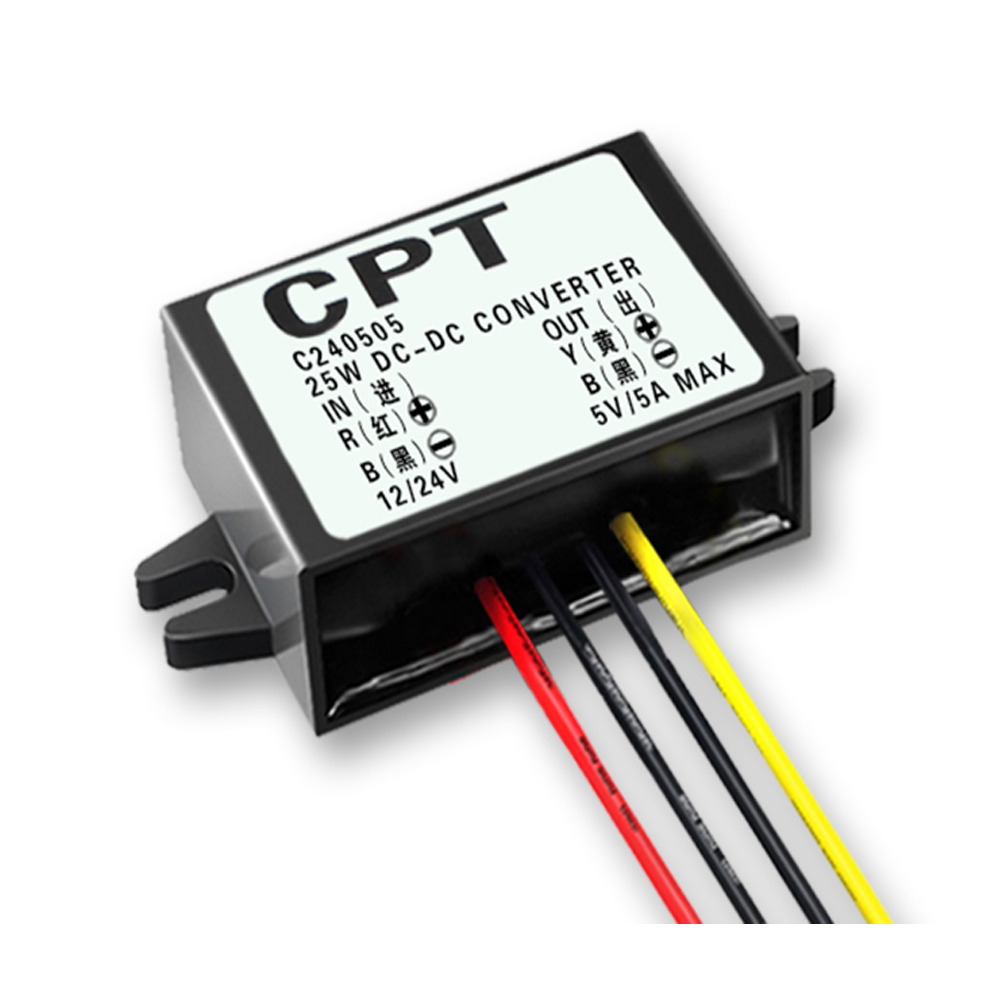

DC-DC Converter 12V 24V to 5V 5A 25W Step Down Power Supply Voltage Transformer Waterproof Buck Module for Car Audio Conversion Electric Motors, Fans, Audio, Trucks
| Product Name | DC DC Converter 12V 24V to 5V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 12V 24V |
| Input Voltage Range | DC 8-35V |
| Output Voltage | DC 5V |
| Output Current | 5A |
| Output Power | 25W |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | < 100mA |
| Conversion Efficiency | >90%,95% max |
| Working Temperature | -25℃ ~ +65℃ ( extreme -40~80℃, If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat protection | |
| Short circuit protection | |
| Input/Output | Please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need Reverse Polarity Protection function, please contact with us to customize it. |
| Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
| GPS Navigation, Monitoring, Air conditioning | |
| LED car display, DVD, LED bulb lights | |
| Wind Power System, Solar Panel Power System | |
| Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
| Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

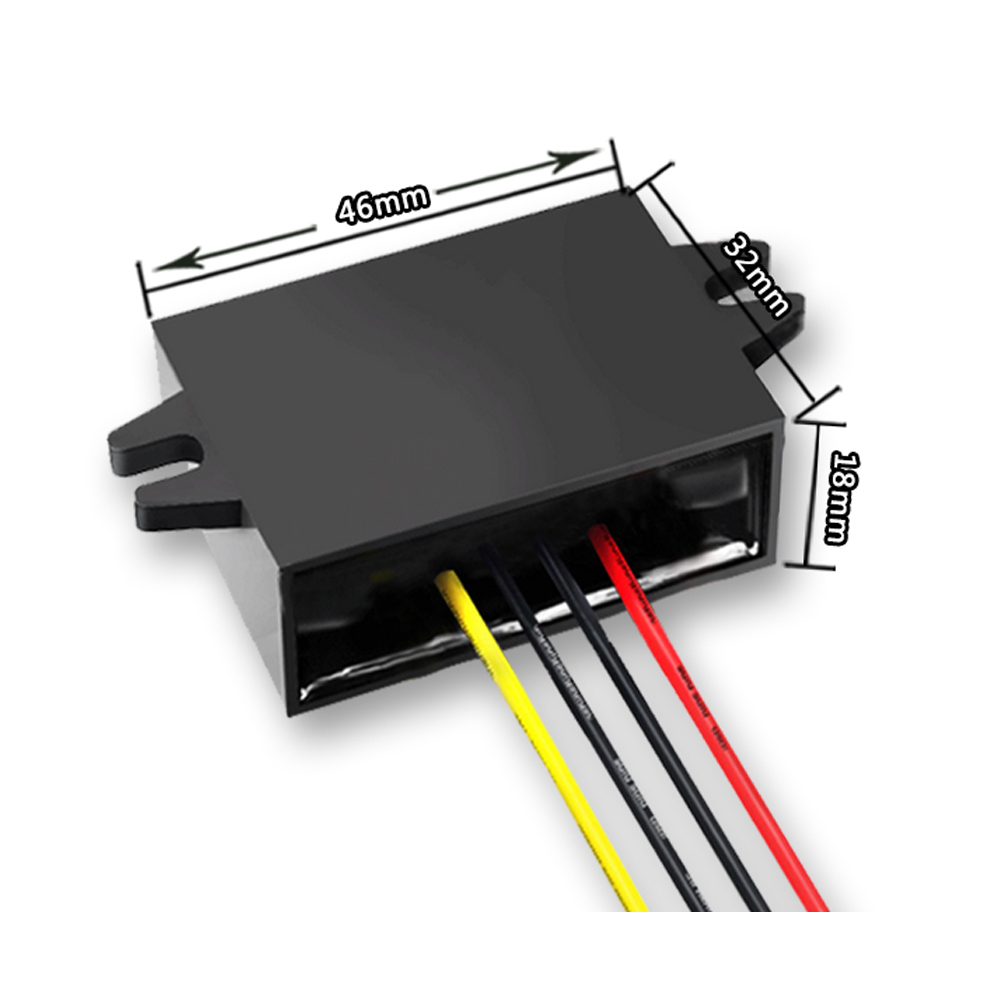

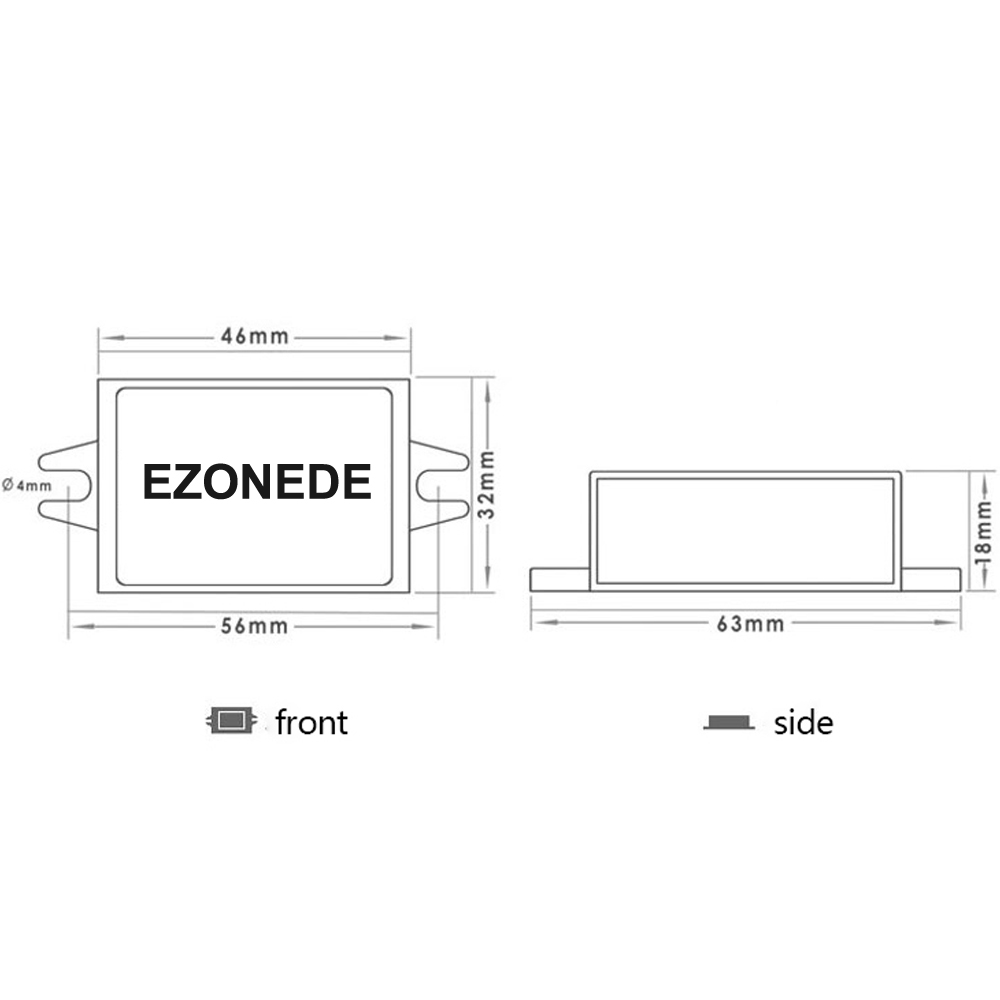

| Product Size (L x W x H) | 46*32*18mm |
| Installation Cable Length | 13-14cm |
| Product Weight | 65g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM Service | Accept |
