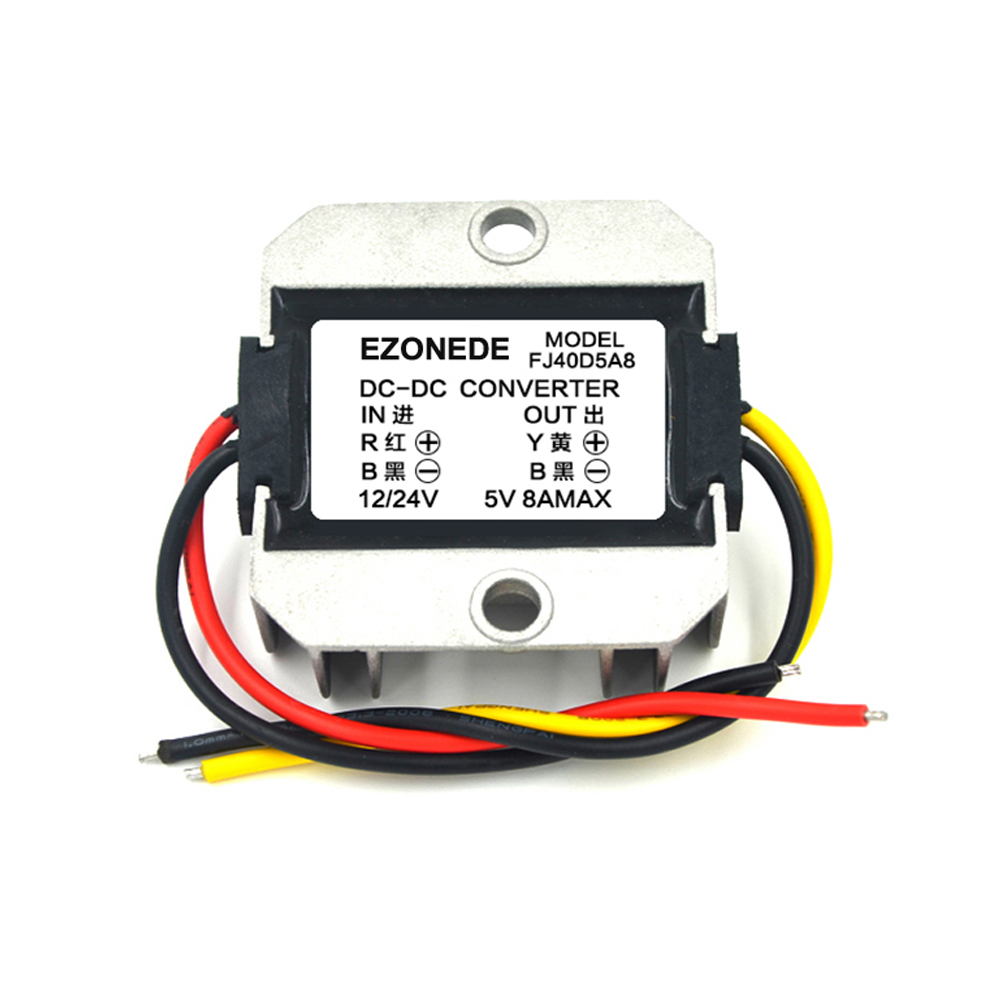

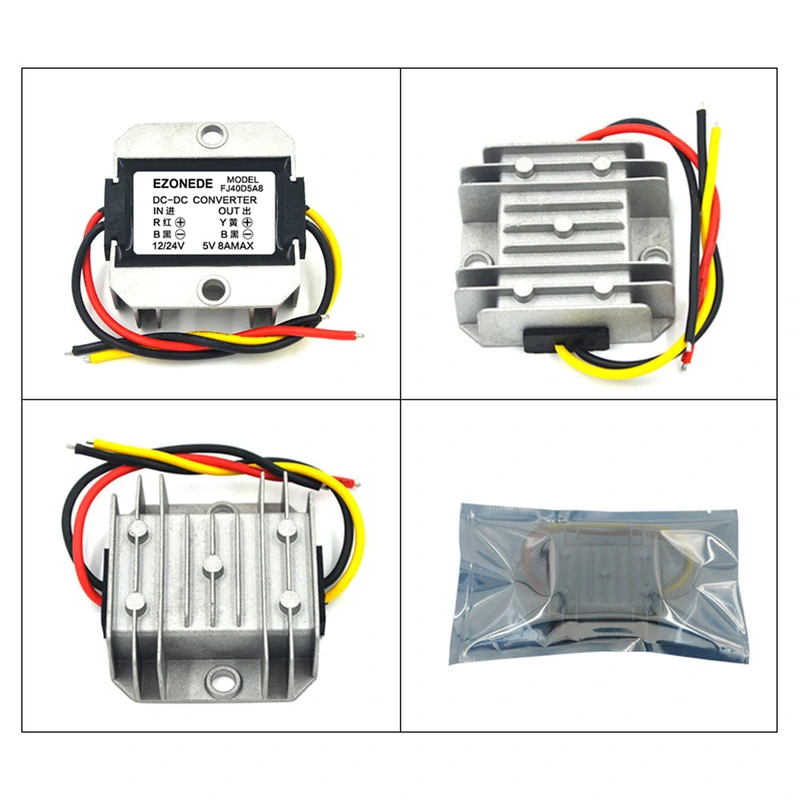

DC-DC Converter 12V 24V to 5V 8A 40W Step Down Power Supply Voltage Transformer Waterproof Buck Module for Car Audio Conversion Electric Motors, Fans, Audio, Trucks
| Product Name | DC-DC Converter 12V 24V to 5V |
| Brand | EZONEDE |
| Input rated voltage | 12V 24V DC |
| Input voltage range | DC 10-36V |
| Output voltage | 5V |
| Output current | 8A MAX |
| Output rated power | 40W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Efficiency | 93% (half load), 91% (full load) |
| Working temperature | -20℃ ~+60℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolated buck module(buck) |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50℃ |
| Protection | Over-current, Over-temperature, Short-circuit protection, |
| Auto-recovery when device is back to normal operating, | |
| waterproof IP68 design, anti-shock protection | |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 102g |

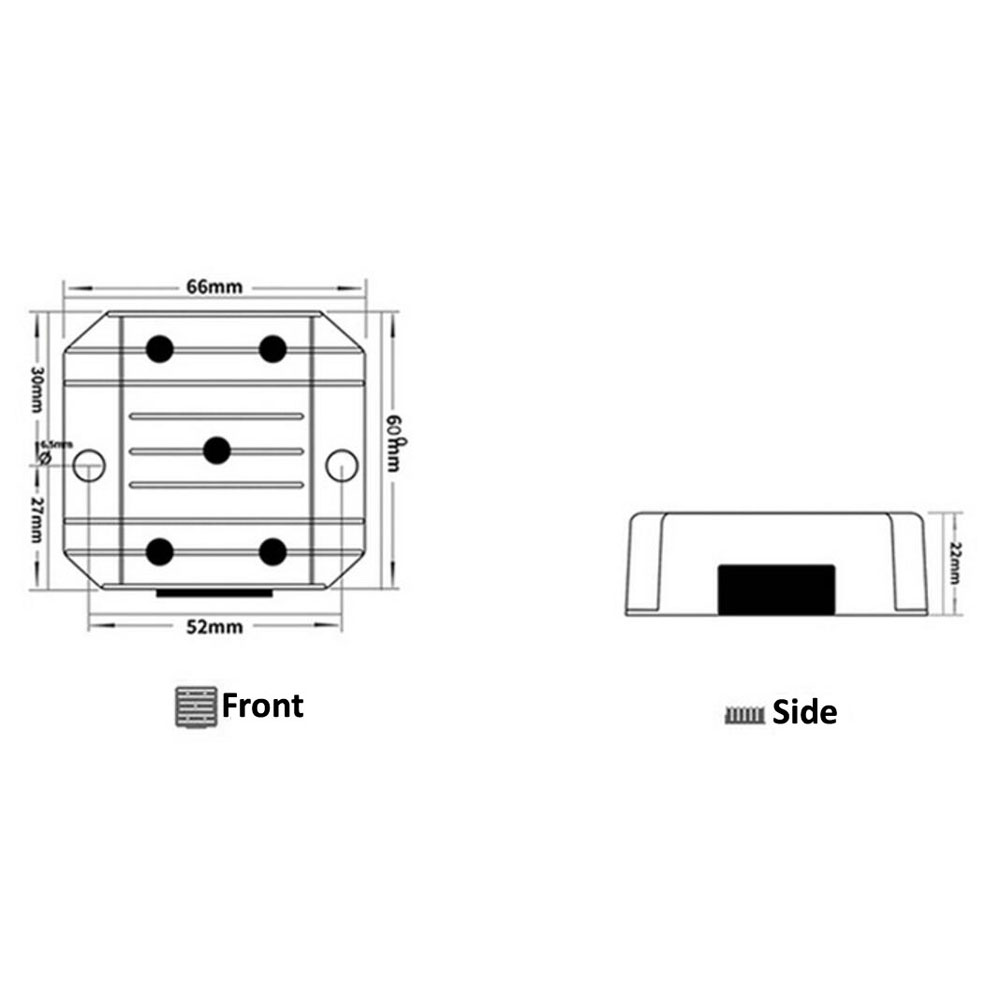

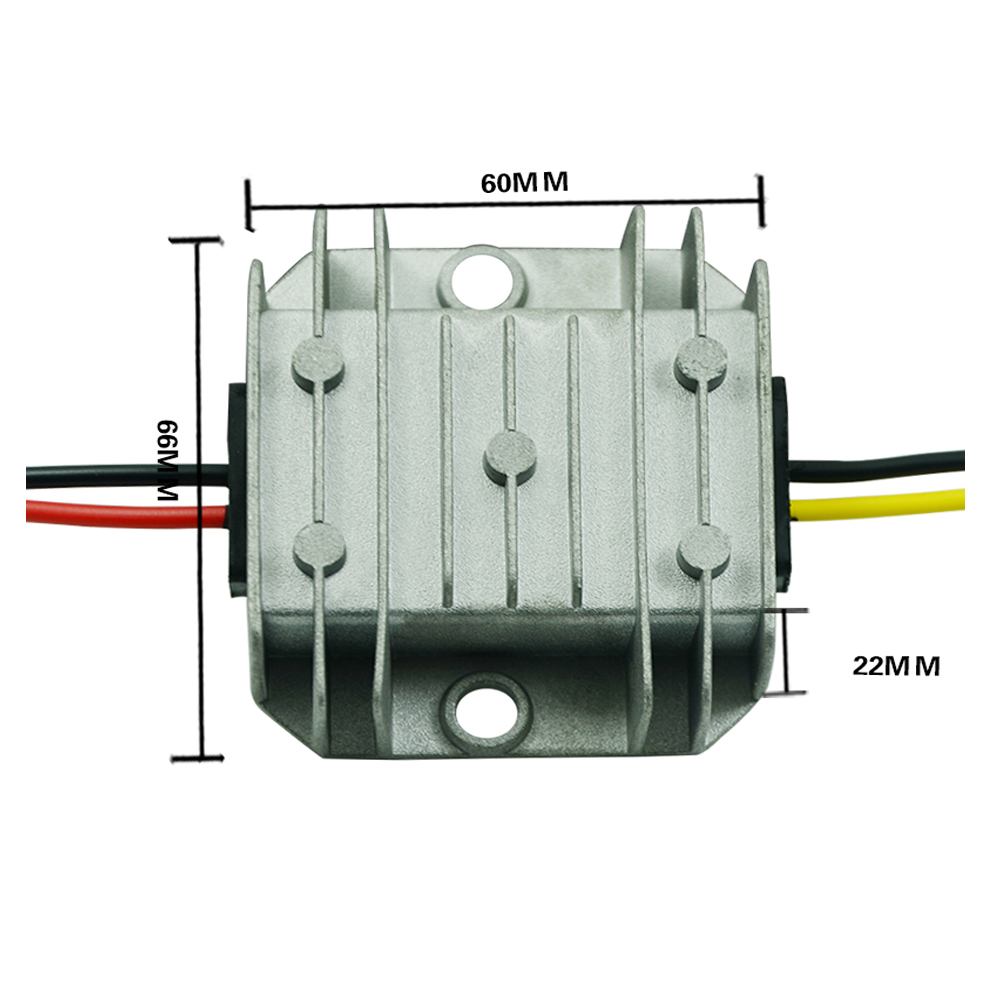

| Product size | 66*60*22MM |
| Attention: | |
| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
