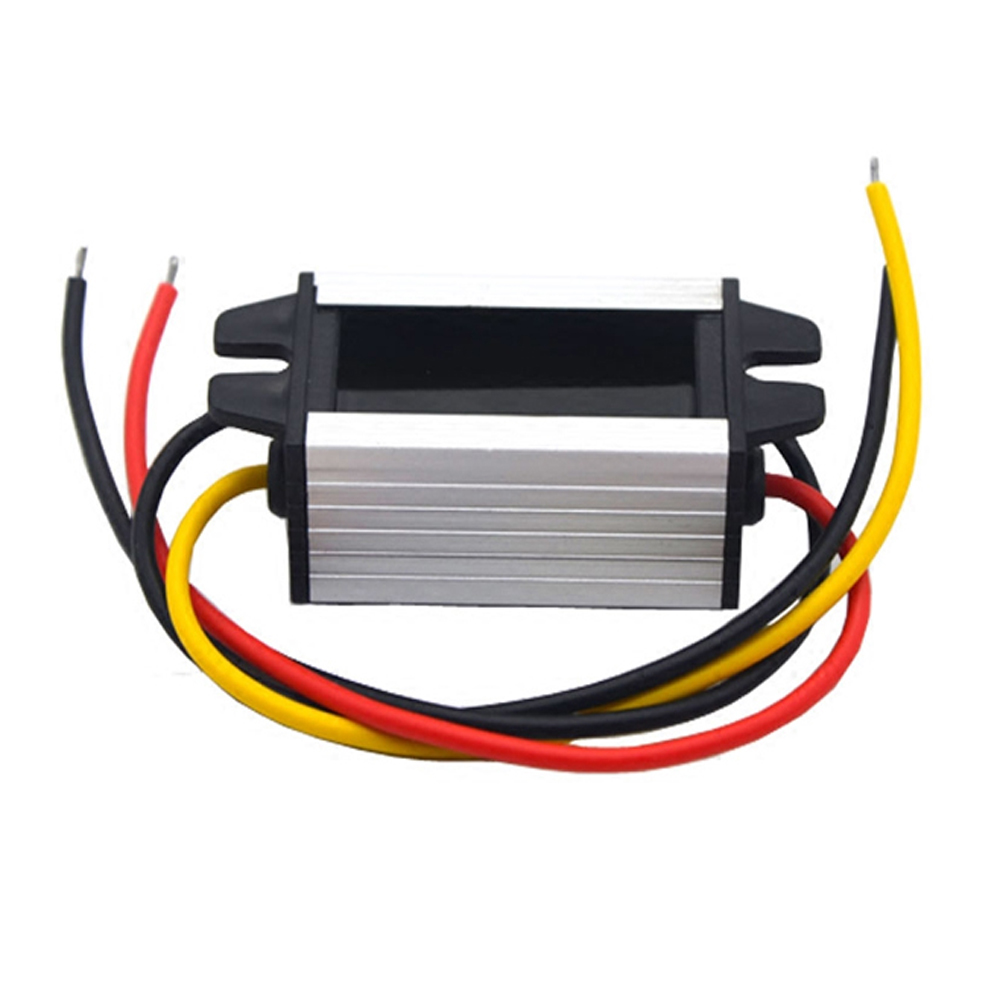

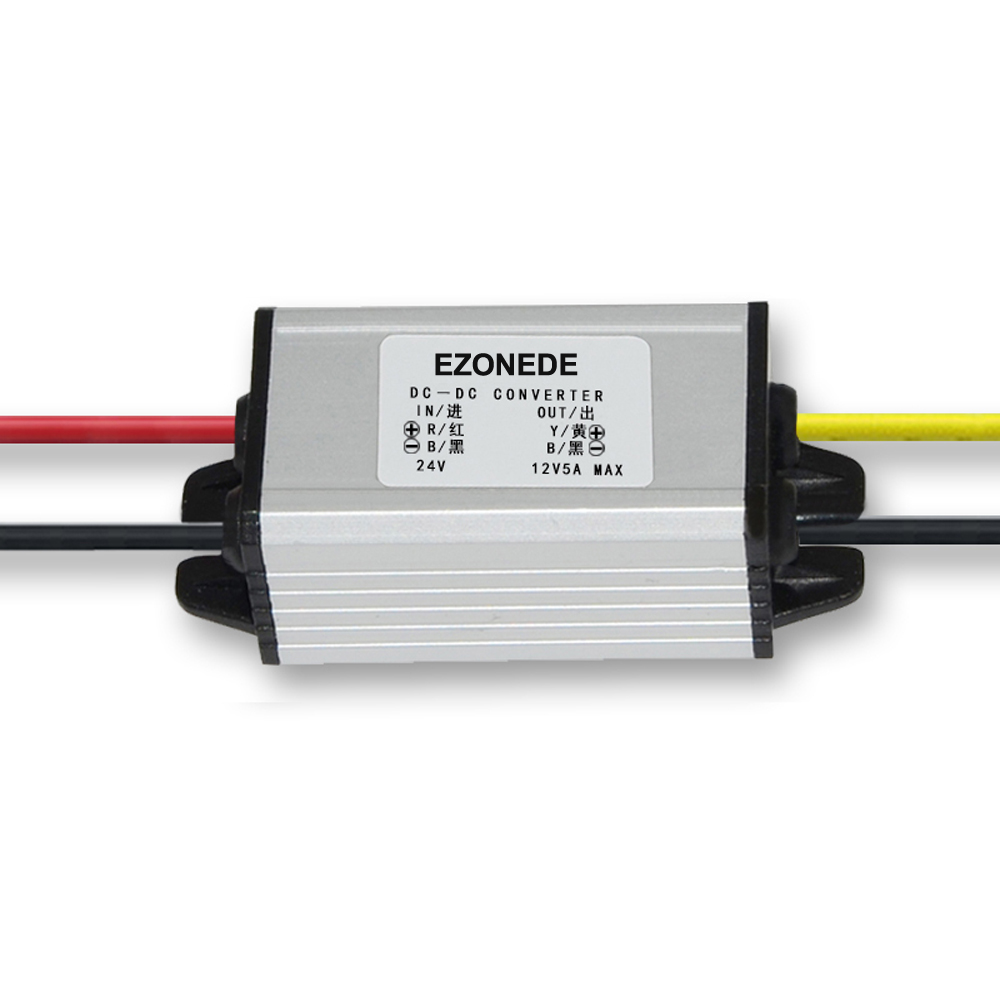

DC-DC Converter 24V to 12V 5A 60W Step Down Power Supply Module Waterproof Voltage Regulator Volt Transformer 15-40V to 12V For Car
| Product Name | DC-DC Converter 24V to 12V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC24V |
| Input Voltage Range | DC 15-40V |
| Output Voltage | DC 12V |
| Output Current | 5A |
| Output Power | 60W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 240mV |
| No-load current | <60mA |
| Working Temperature | -25℃~65℃( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheating protection | |
| Short circuit protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

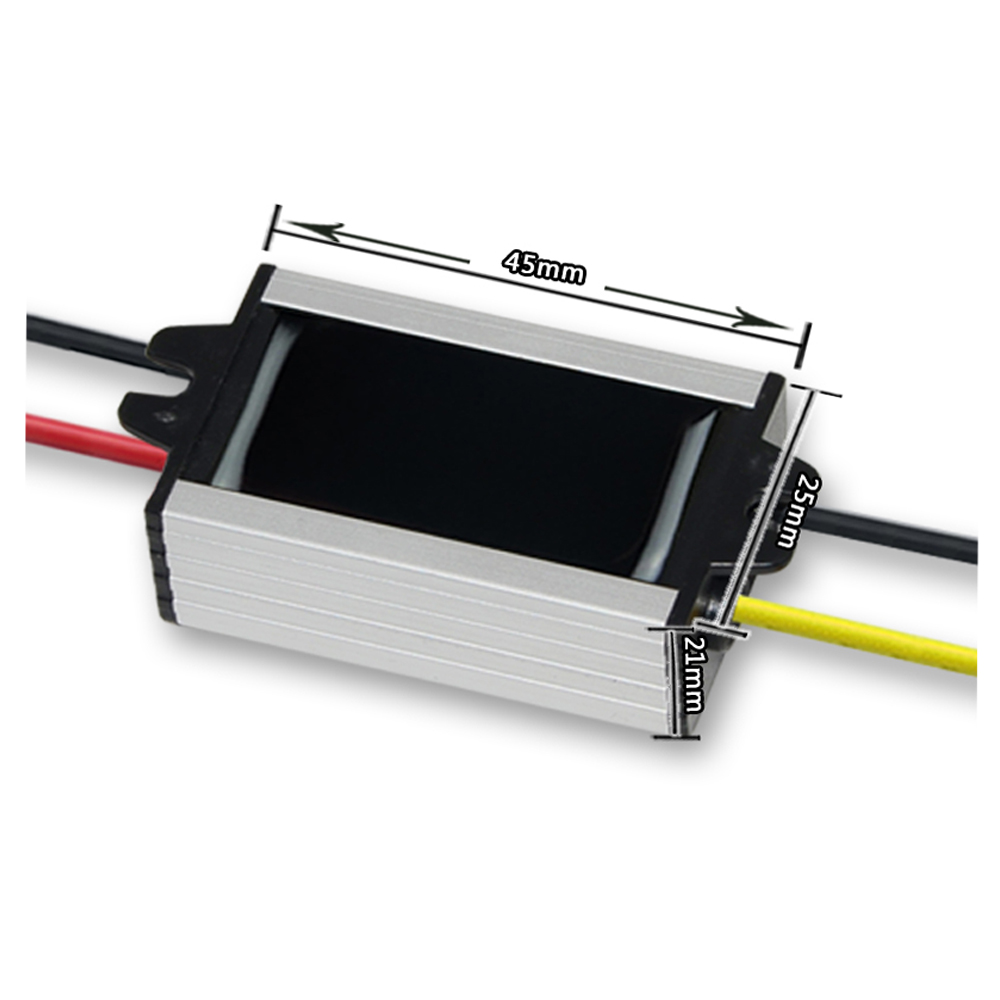

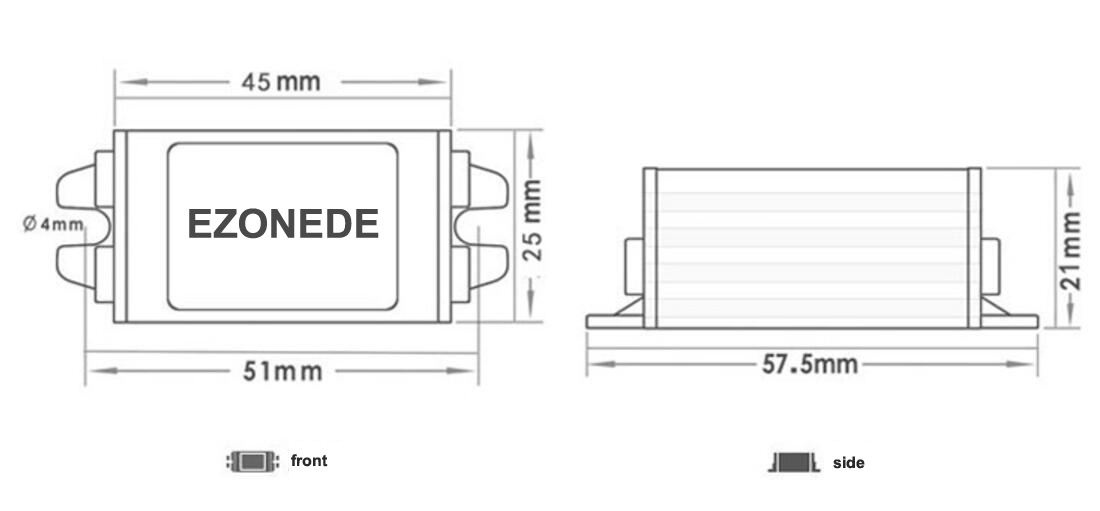

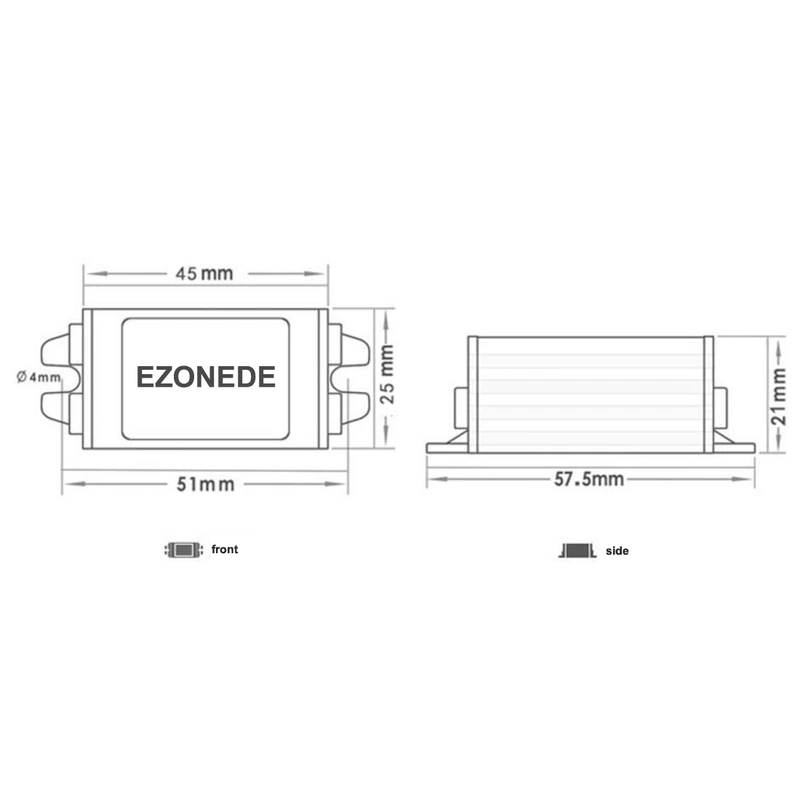

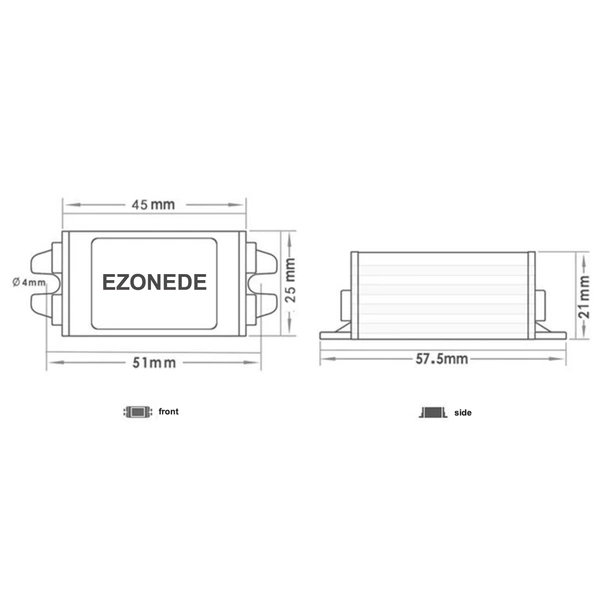

| Product Size (L x W x H) | 45*25*21mm |
| Product Weight | 50g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
