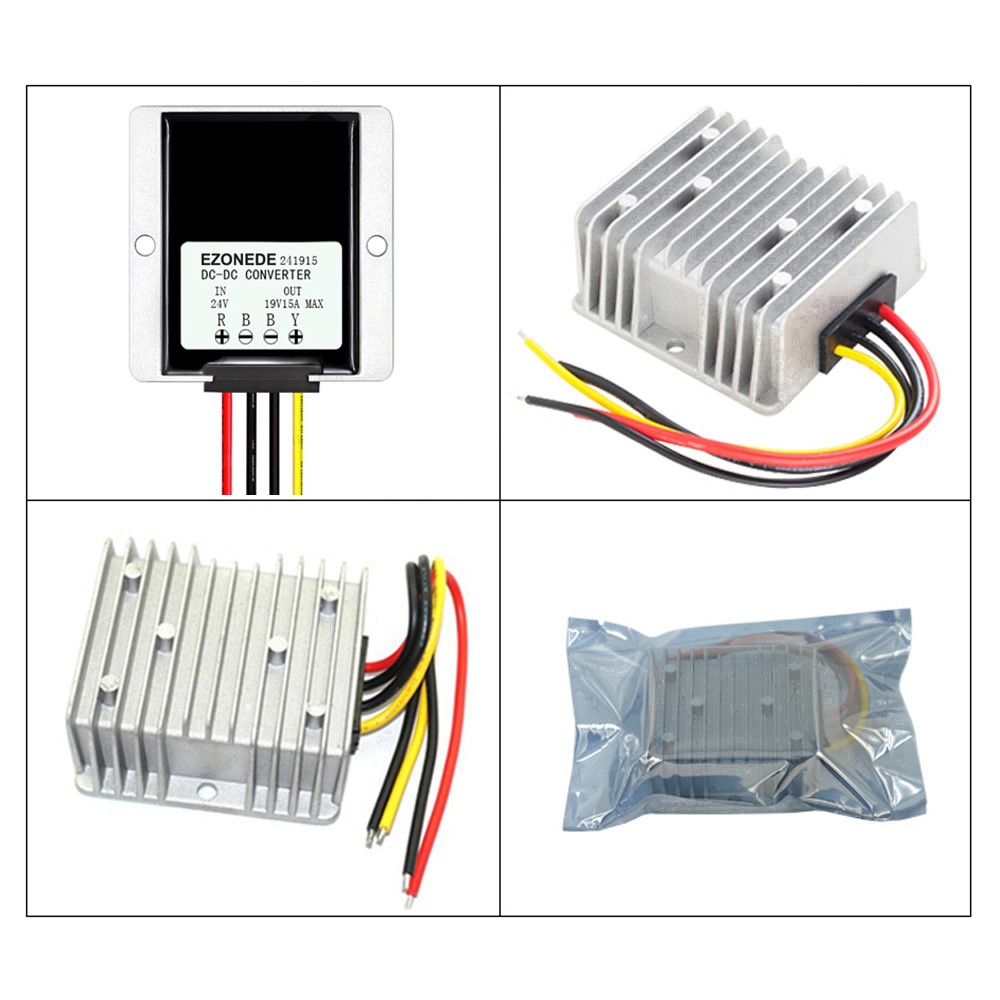

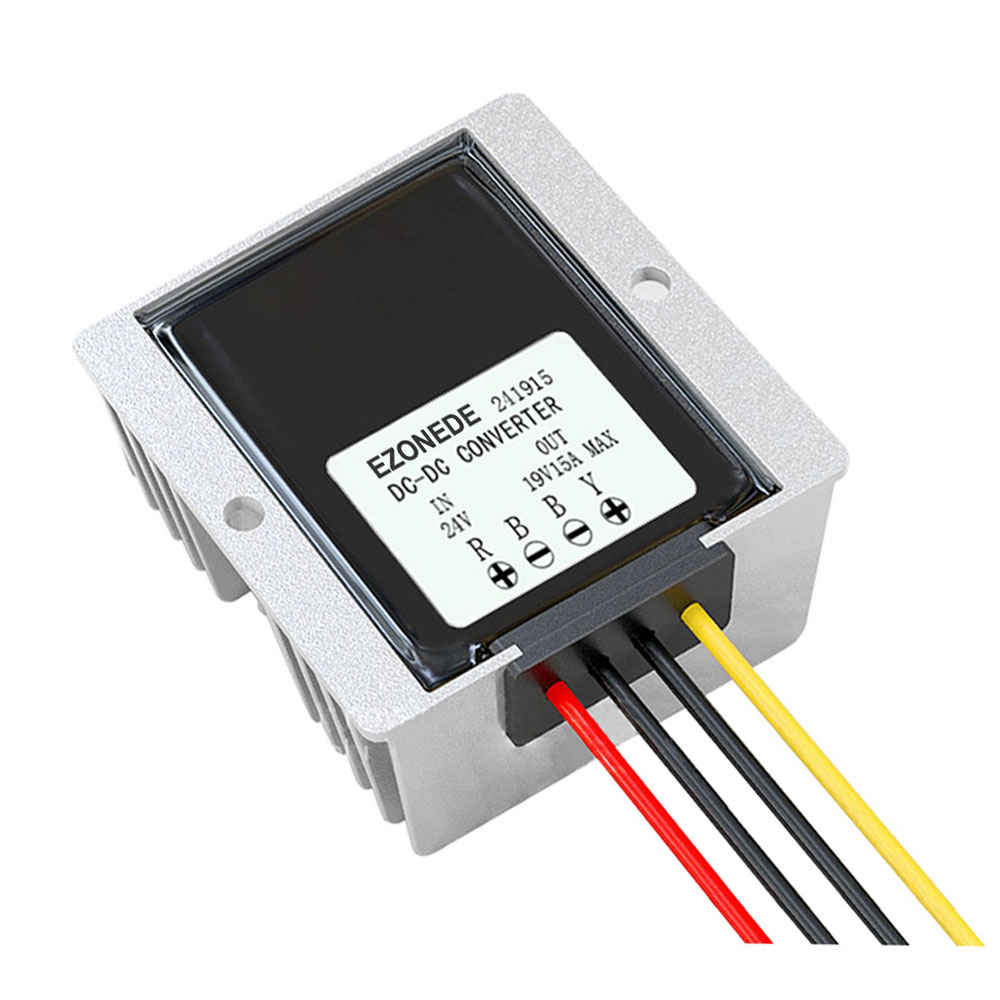

DC-DC Converter 24V to 19V 15A 285W Buck Step Down Power Supply Module Waterproof Voltage Regulator Volt Transformer 22-40V to 19V For Car Laptop Notebook
| Product Name | DC-DC Converter 24V to 19V |
| Input rated voltage | DC 24V |
| Input voltage range | DC 22-40V |
| Efficiency | 95% |
| Output voltage | 19V |
| Output current | 15A MAX |
| Output rated power | 285W |
| Output peak power | 342W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°C ~+80°C( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolated buck module(buck) |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°C |
| Protection | Over-current, Over-temperature,Short-circuit protection,Instant absorption of high voltage protection |
| Auto-recovery when device is back to normal operating, | |
| Waterproof IP68 design, anti-shock protection | |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 290g |
| Product size | 74*74*32MM |
| Attention: | |

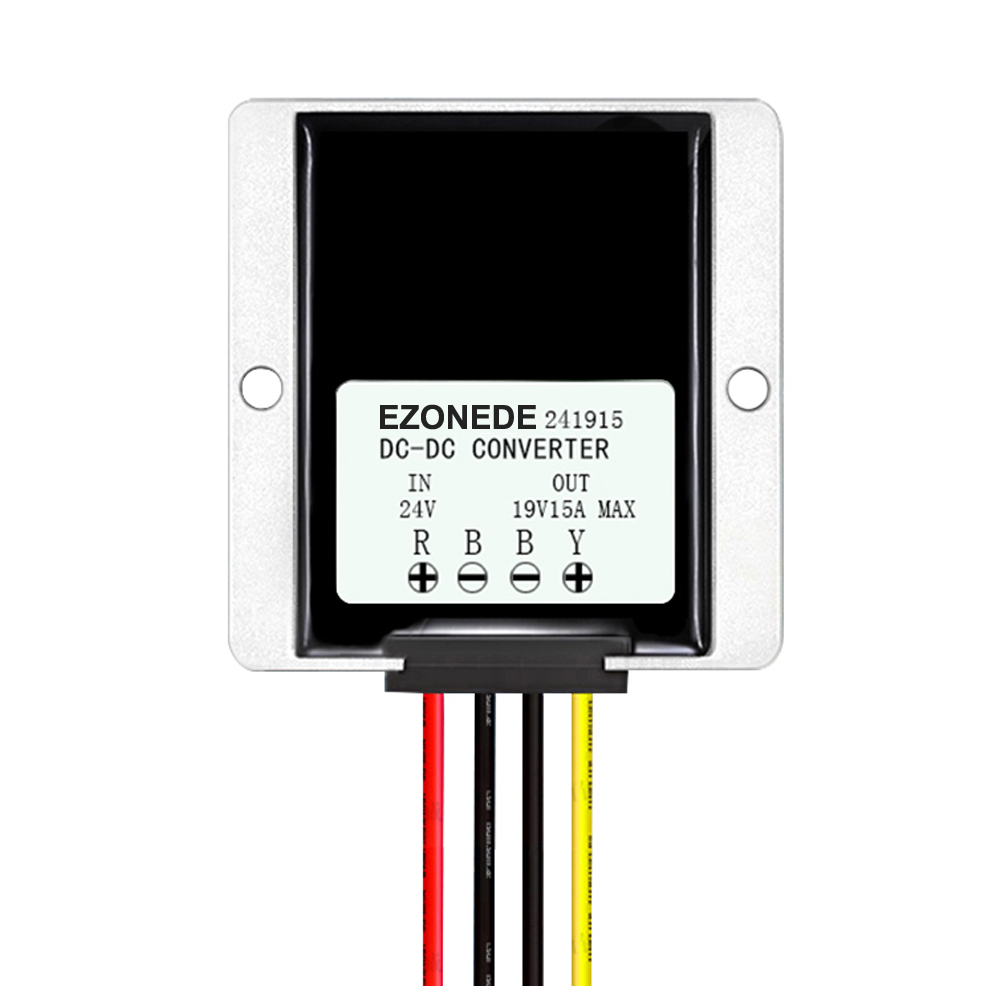

| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power, please make sure the voltage and power input is enough. | |
