DC-DC Converter 36V to 24V 3A 72W Buck Step Down Power Supply Module Waterproof Voltage Regulator Volt Transformer 32-60V to 24V For Automobile Smart phone LED Camera GPS
Specification:
1.Wide input Voltage range: DC32-60V (adjustable); output Voltage: DC24V(non-adjustable)
2.Output current: 3a(3ai is long term operating current, NOT maximum, maximum current is 5A)

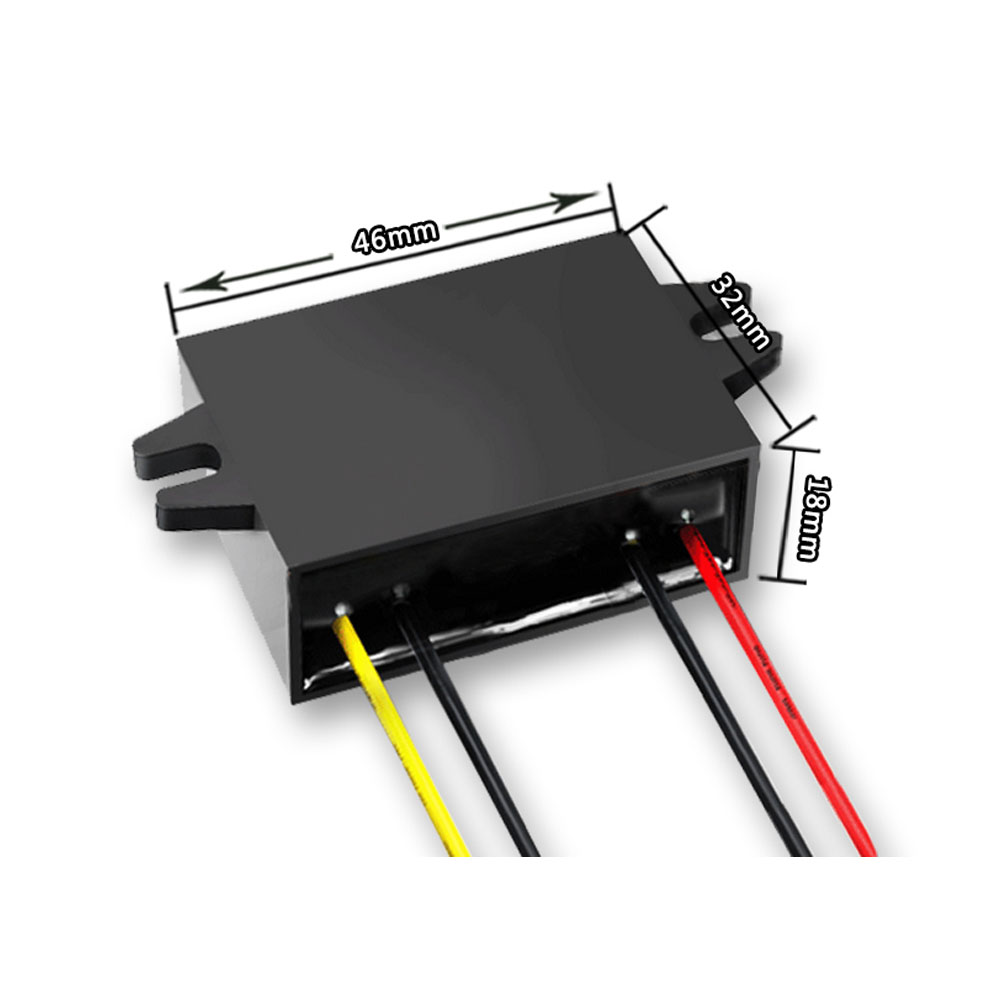

3.Ultra small size(46x32x18mm) and light weight(65g), easy to carry out and install
4.Without reverse connection protection, please wire follow the wiring Instruction, or the module will be burnt

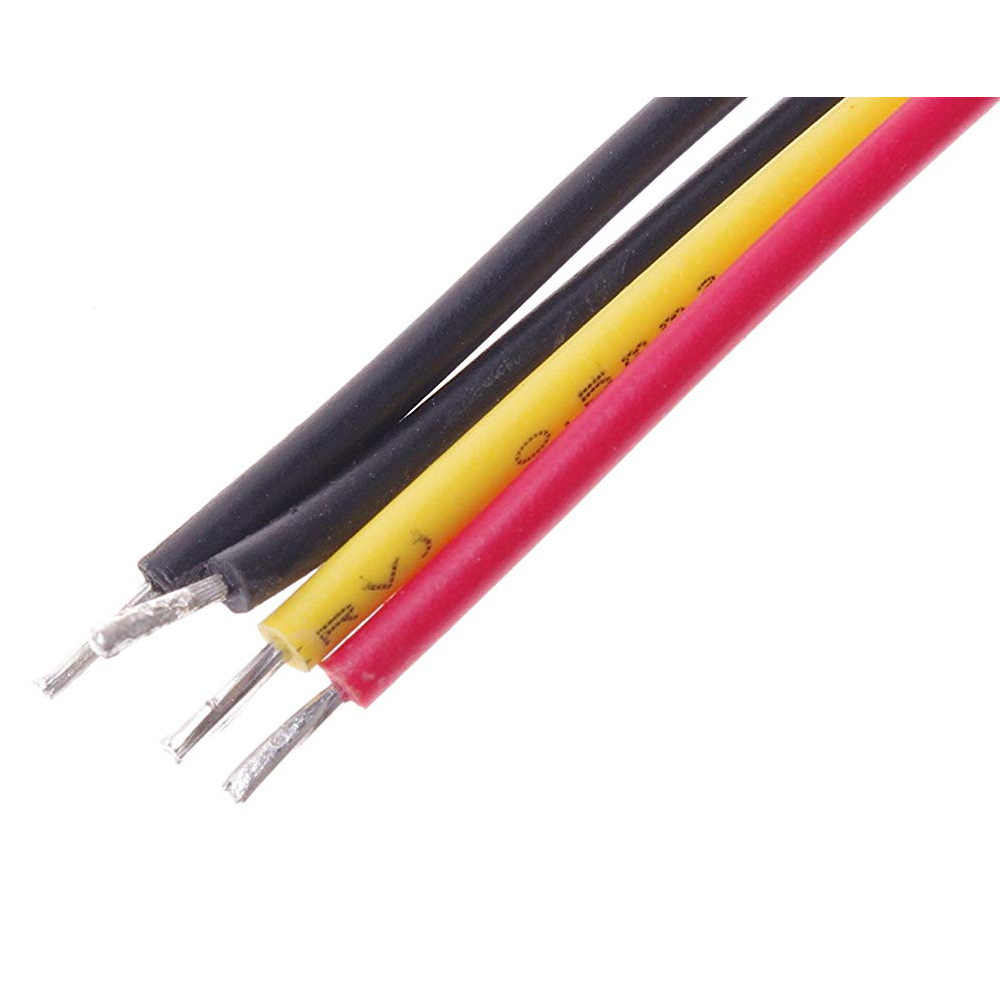

5.Wiring : red wire: input+; black wire: public-; Yellow wire: output+
Features:
Synchronous Buck Power
Input voltage: DC 32-60V
Output voltage: DC 24V
Output Current: 3A 72W long term work
Protection: Output short circuit, overload

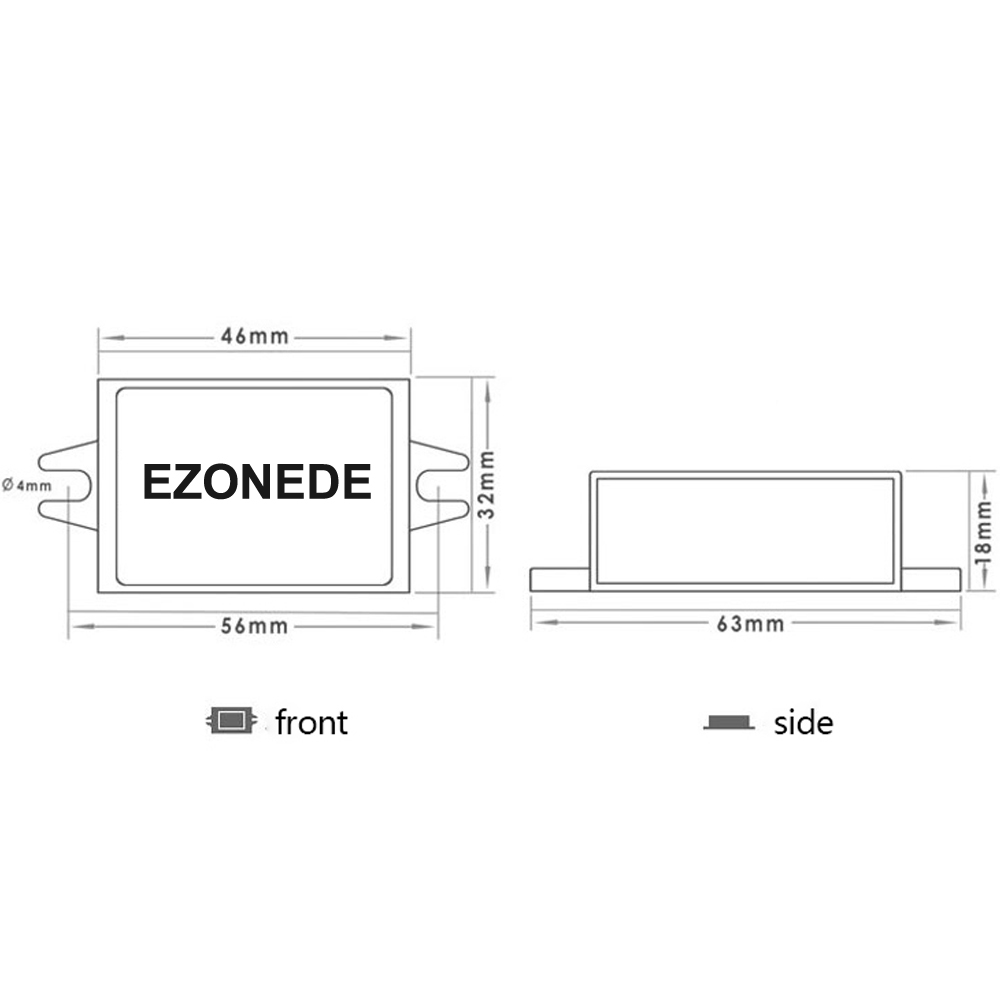

Dimensions: 46 * 32 * 18 mm
Glue craft, waterproof, moisture-proof, dust-proof, shock-proof
High conversion rate, 90%(full load), up to 95% lower than the heat
Working temperature: -25℃~+65℃ limit -40℃~+80℃
Conversion rate = Input power / input power
Note:

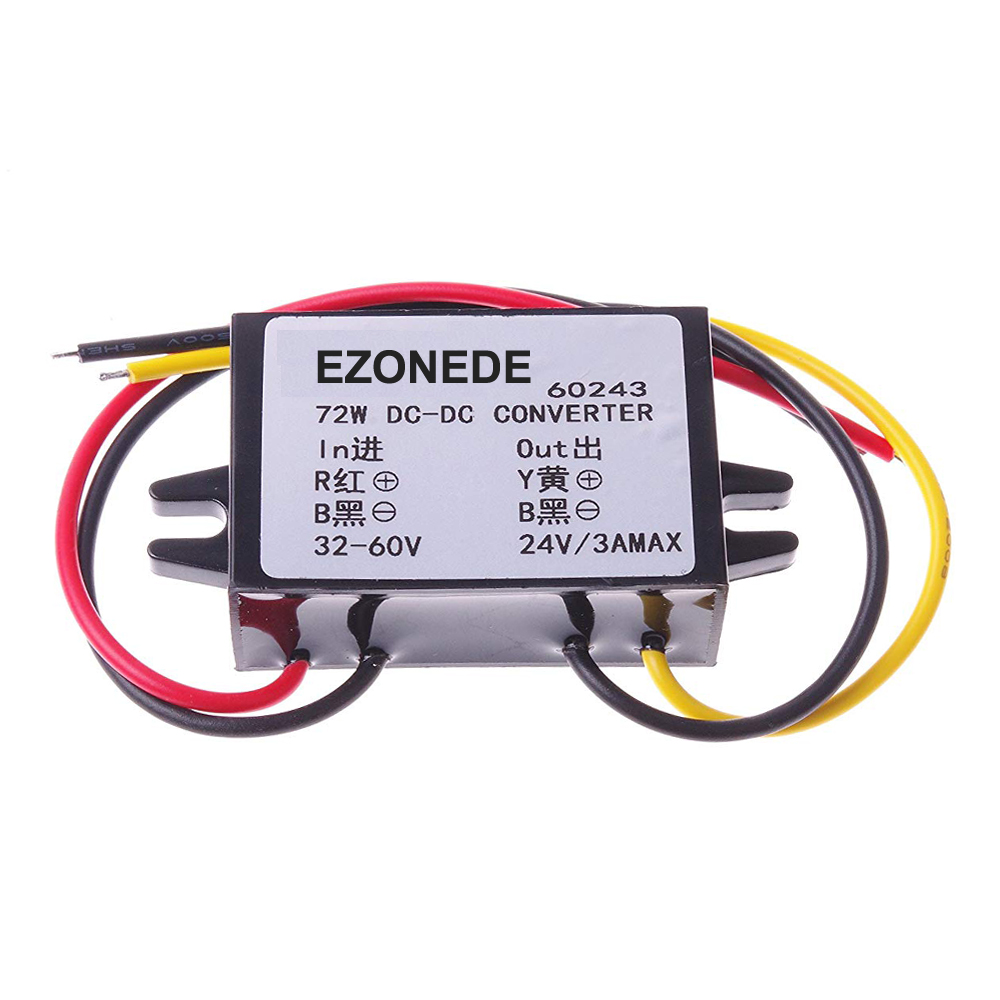

there is no reverse polarity protection, be sure to follow the wiring instructions, otherwise it will be burnt. The red wire is the input positive, the black wire is the public negative, and the yellow wire is the output positive.
Package include:
1Pcs x DC-DC Converter 36V to 24V 3A 72W
