DC-DC Converter 48V to 36V 5A 180W Step Down Buck Module Power Supply Transformer Waterproof Voltage Regulator 40-60V to 24V For Truck Forklift
| Product Name | DC-DC Converter 48V to 36V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 48V |
| Input Voltage Range | DC 40-60V |
| Output Voltage | DC 36V |
| Output Current | 5A |
| Output Power | 180W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | < 100mA |
| Working Temperature | -40℃~85℃(If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat protection | |
| Short circuit protection | |
| Instant absorption of high voltage protection | |

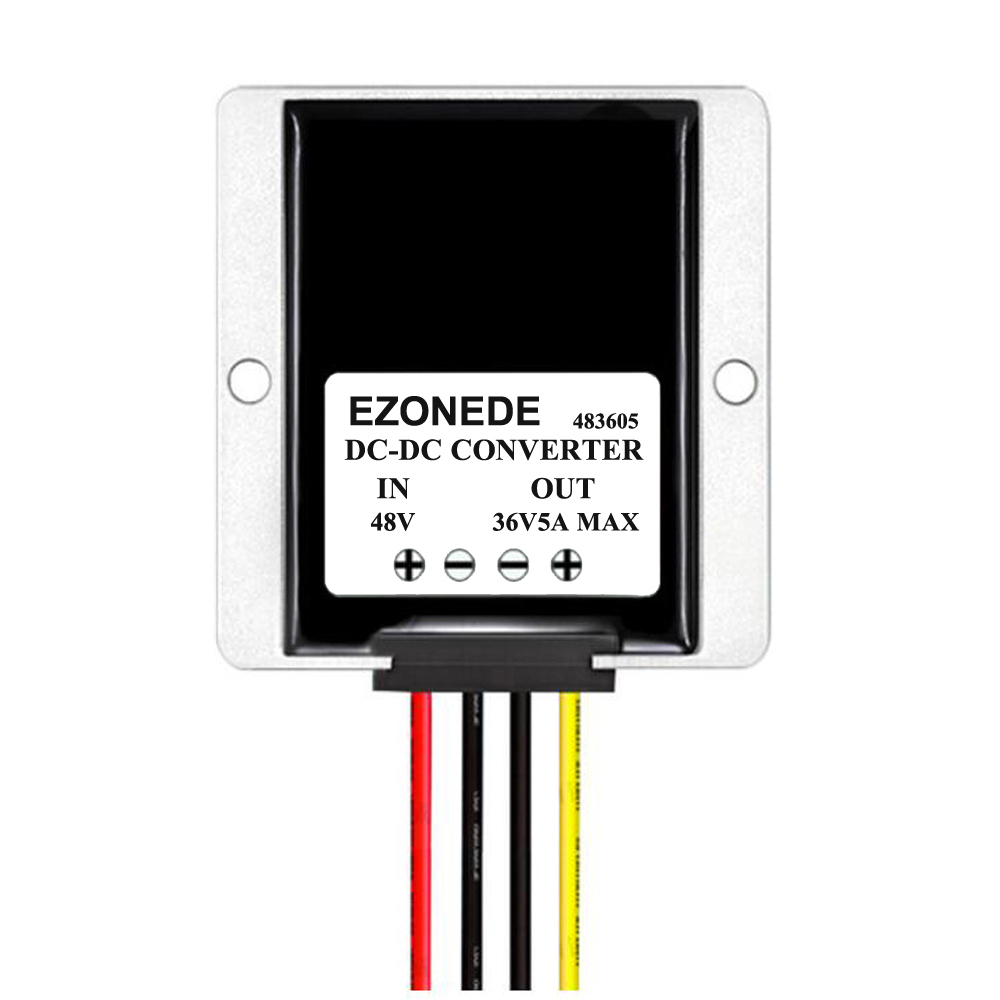

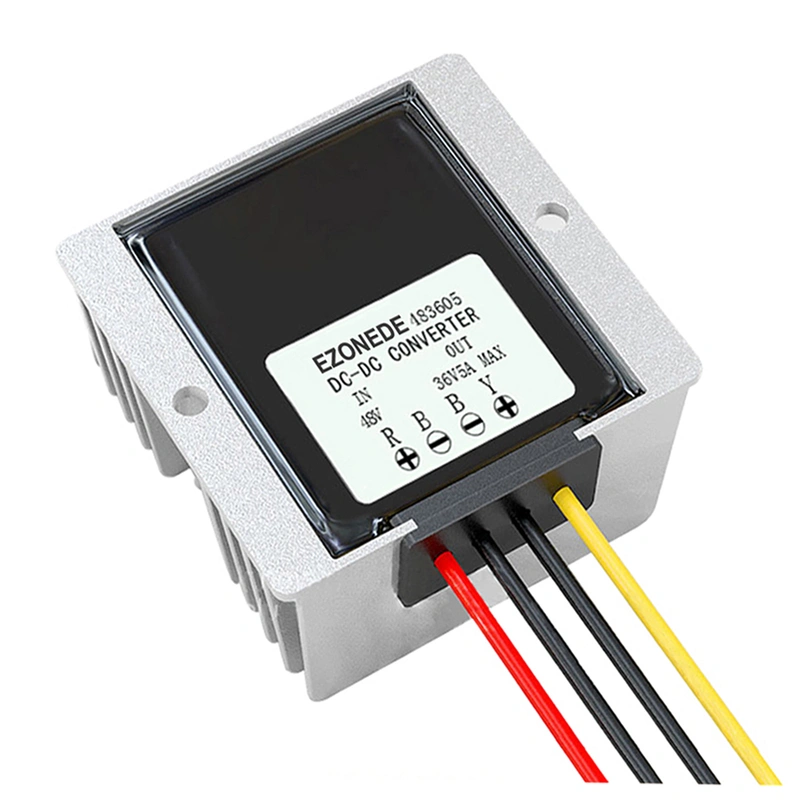

| Input/Output | Please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive |
| Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
| GPS Navigation, Monitoring, Air conditioning | |
| LED car display, DVD, LED bulb lights | |
| Wind Power System, Solar Panel Power System | |
| Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
| Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
| Product Size (L x W x H) | 74*74*32mm |
| Installation Cable Length | 13-14cm |
| Product Weight | 290g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM Service | Accept |
