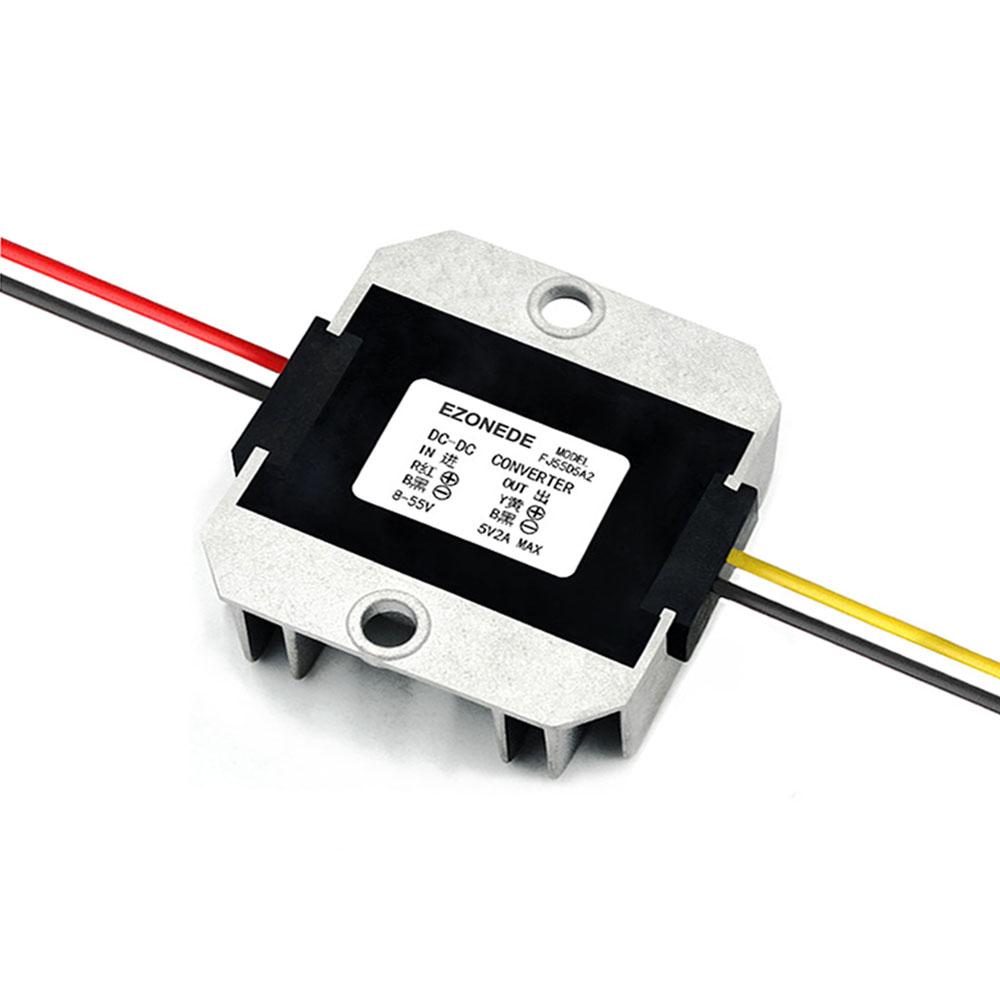

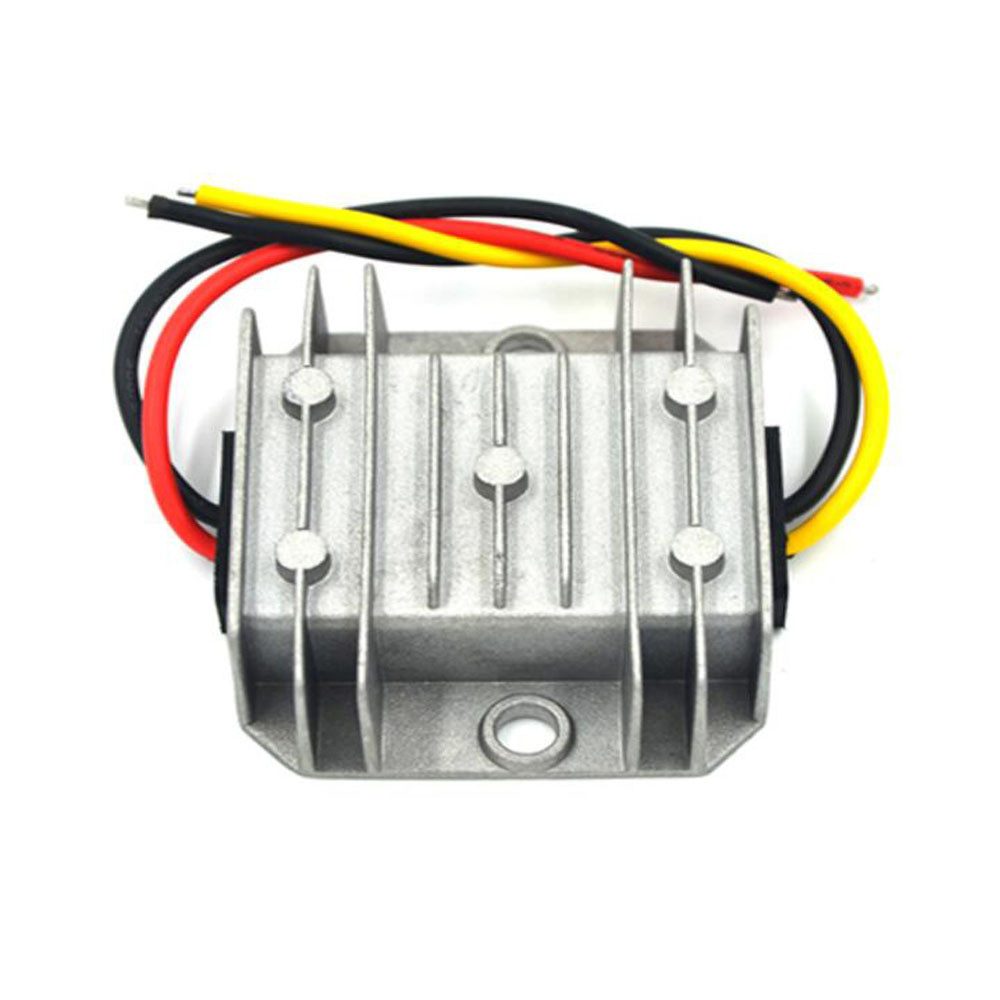

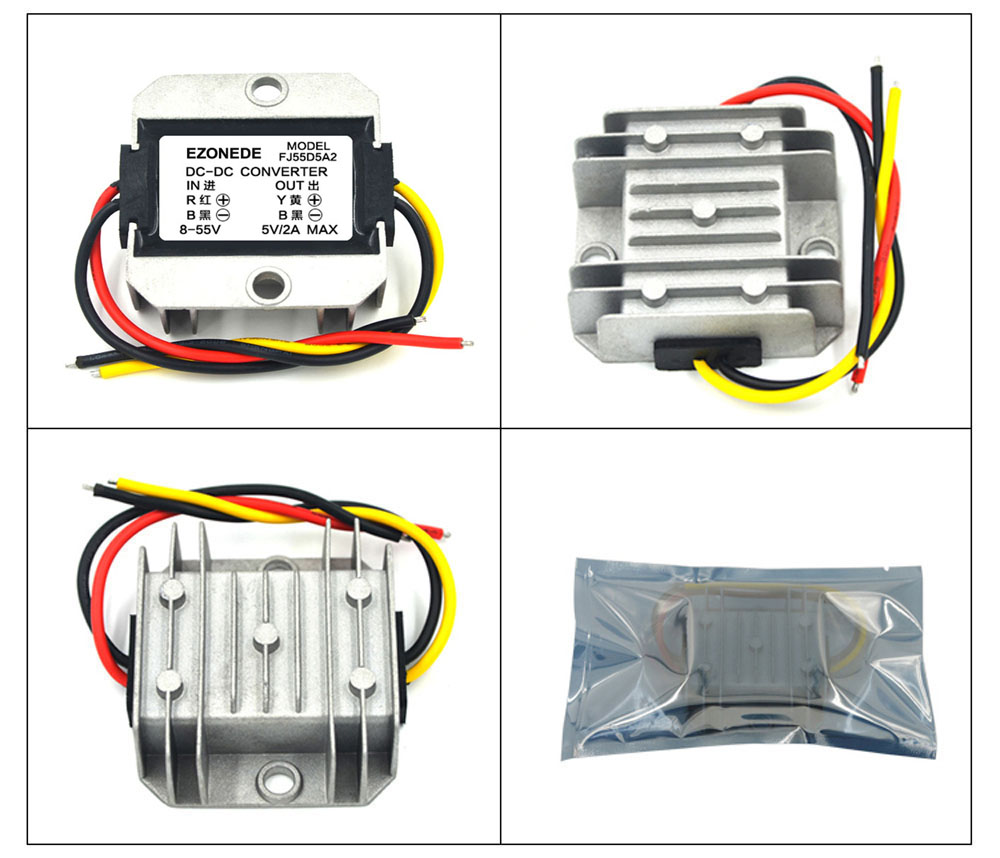

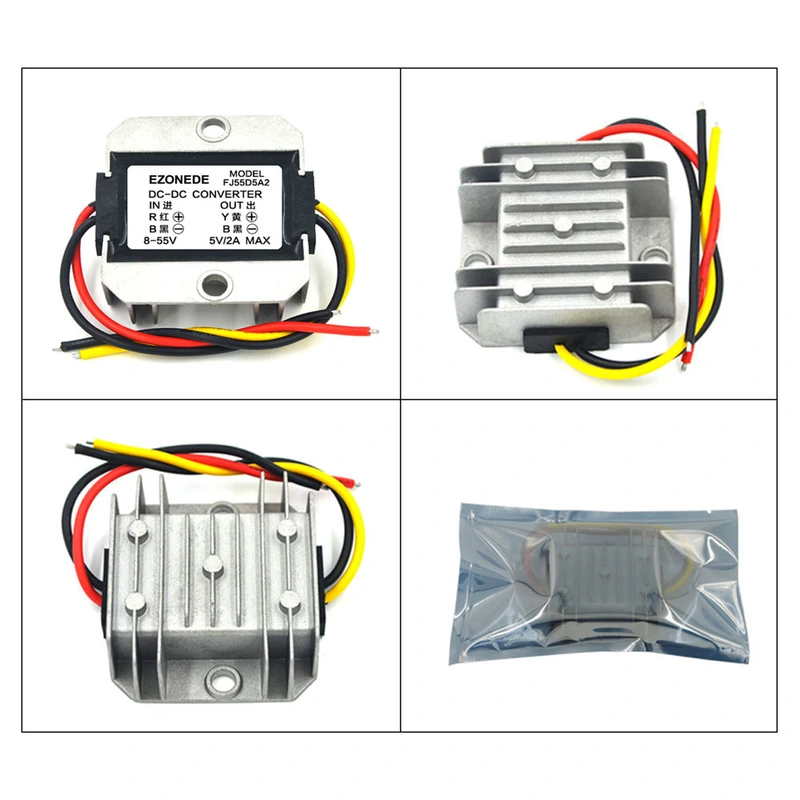

DC-DC Converter 48V to 5V 2A 10W Step Down Buck Module Power Supply Transformer Waterproof Voltage Regulator 8-55V to 5V For Automobile Smart phone LED Camera GPS
| Product Name | DC DC Converter 48V to 5V |
| Brand | EZONEDE |
| Module Properties | Non-isolated boost module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 48V |
| Input Voltage Range | DC 8-55V |
| Output Voltage | DC 5V |
| Output Current | 2A |
| Output Power | 10W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -40℃~85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Output Short-circuit protection | |
| Reverse Polarity Protection | |
| Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |

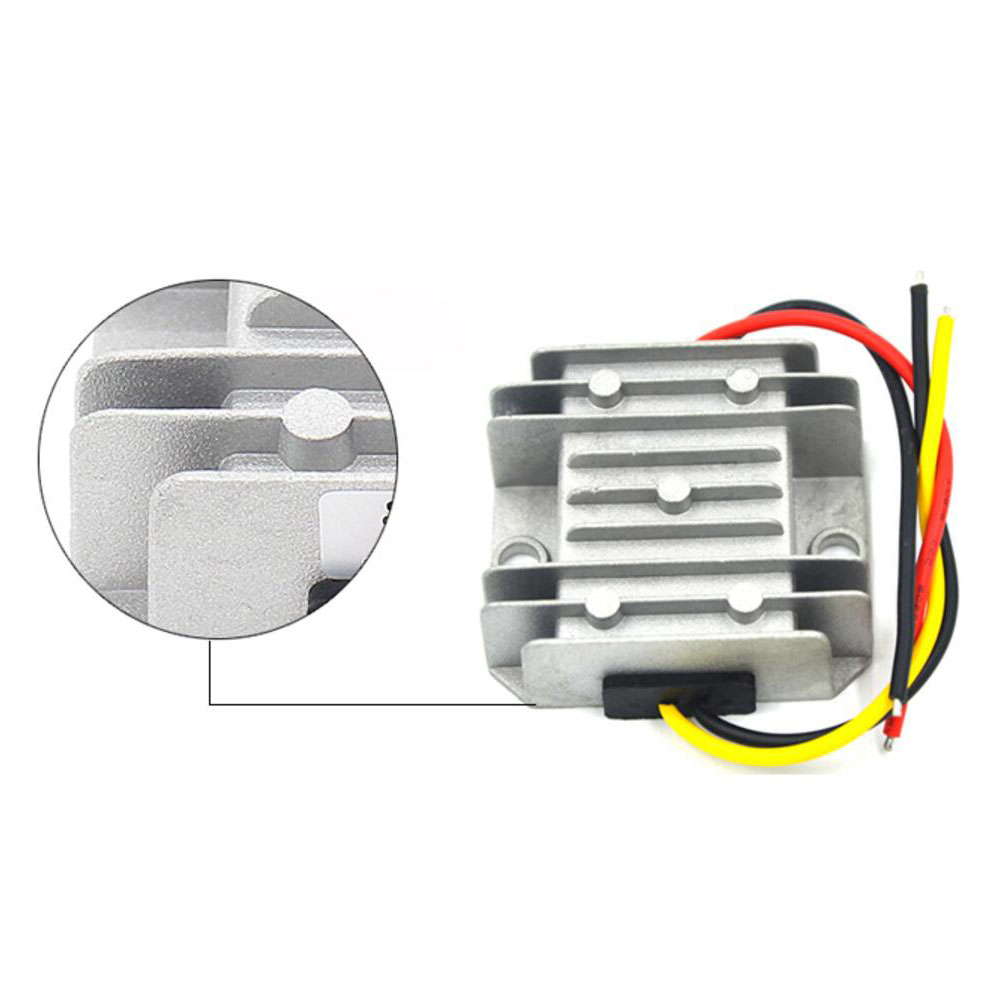

| Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

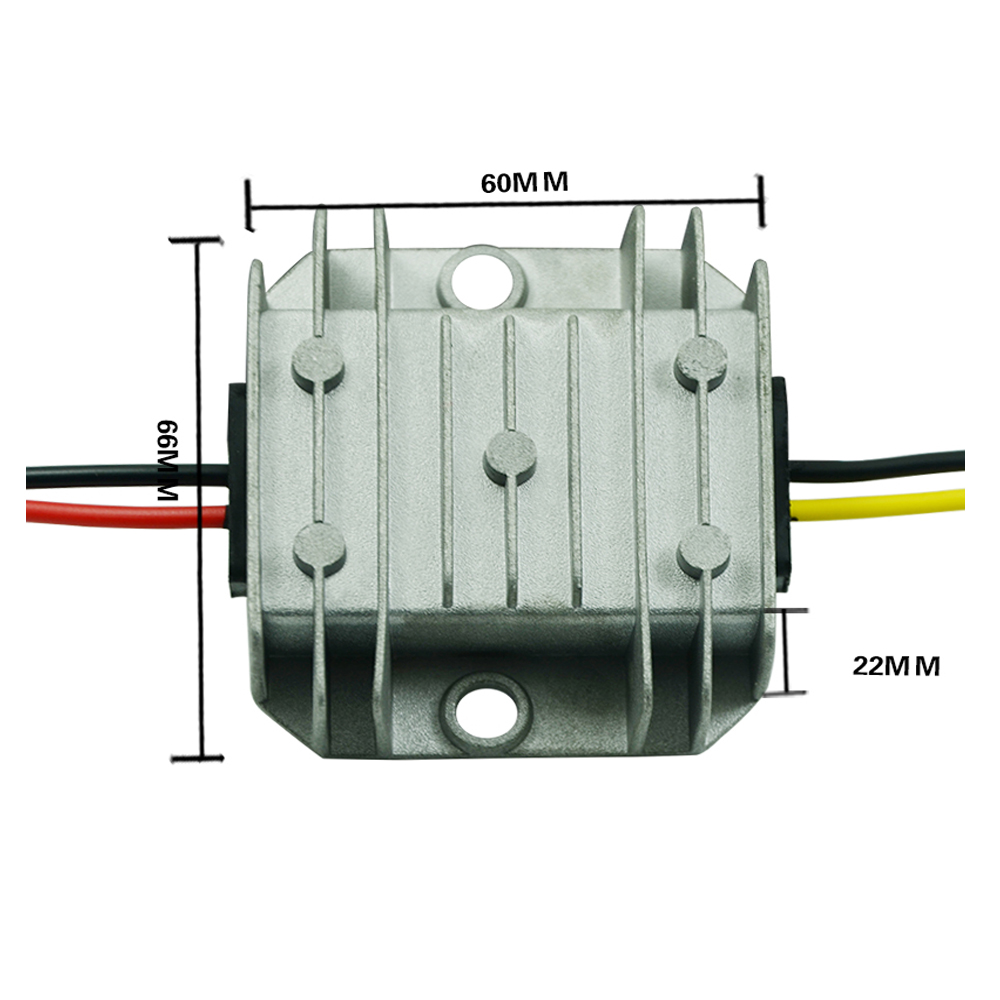

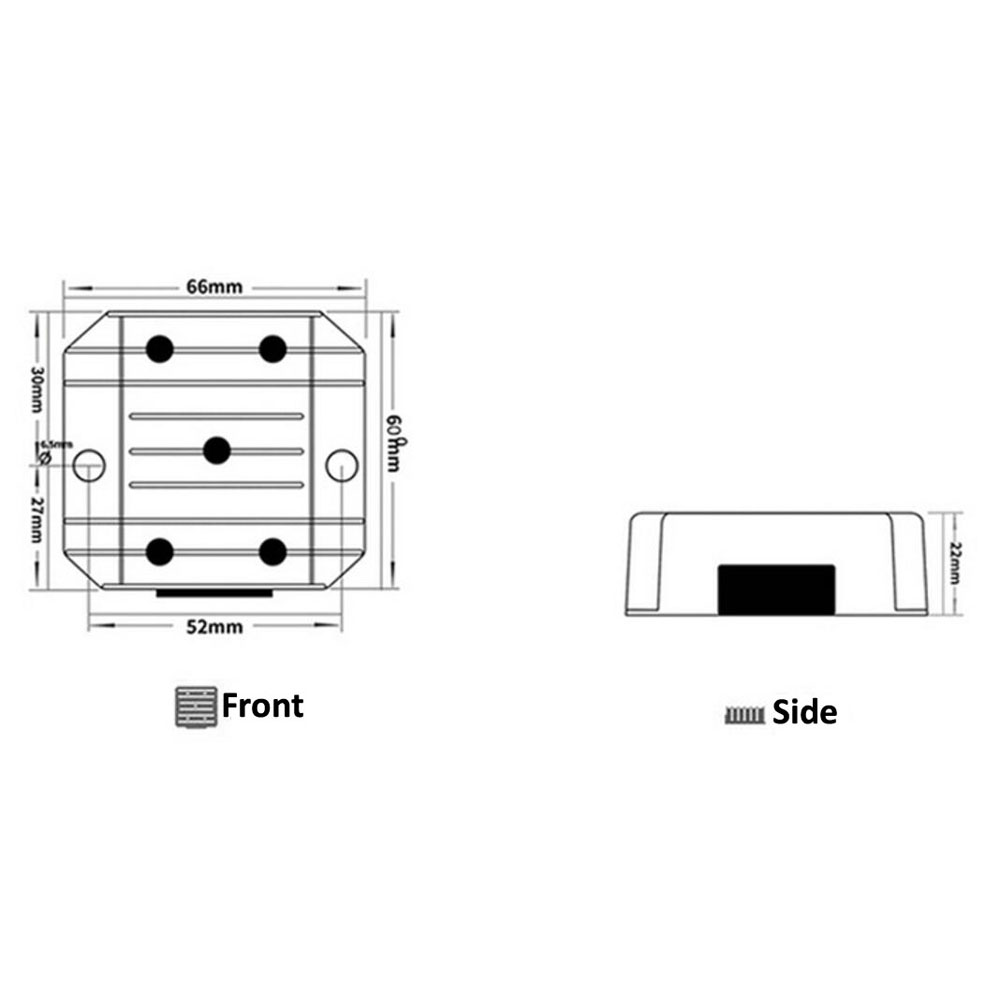

| Product Size (L x W x H) | 66*60*22mm |
| Product Weight | 102g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM&ODM Service | Accept |
