DC-DC Converter 60V to 24V 2A 48W Step Down Buck Module Power Supply Transformer Waterproof Voltage Regulator 36-75V to 24V For Car Truck Vehicle
Specification:
1. Wide input Voltage range: DC 36-75V (adjustable); output Voltage: DC 24V (non-adjustable)
2. Output current: 2A Max.

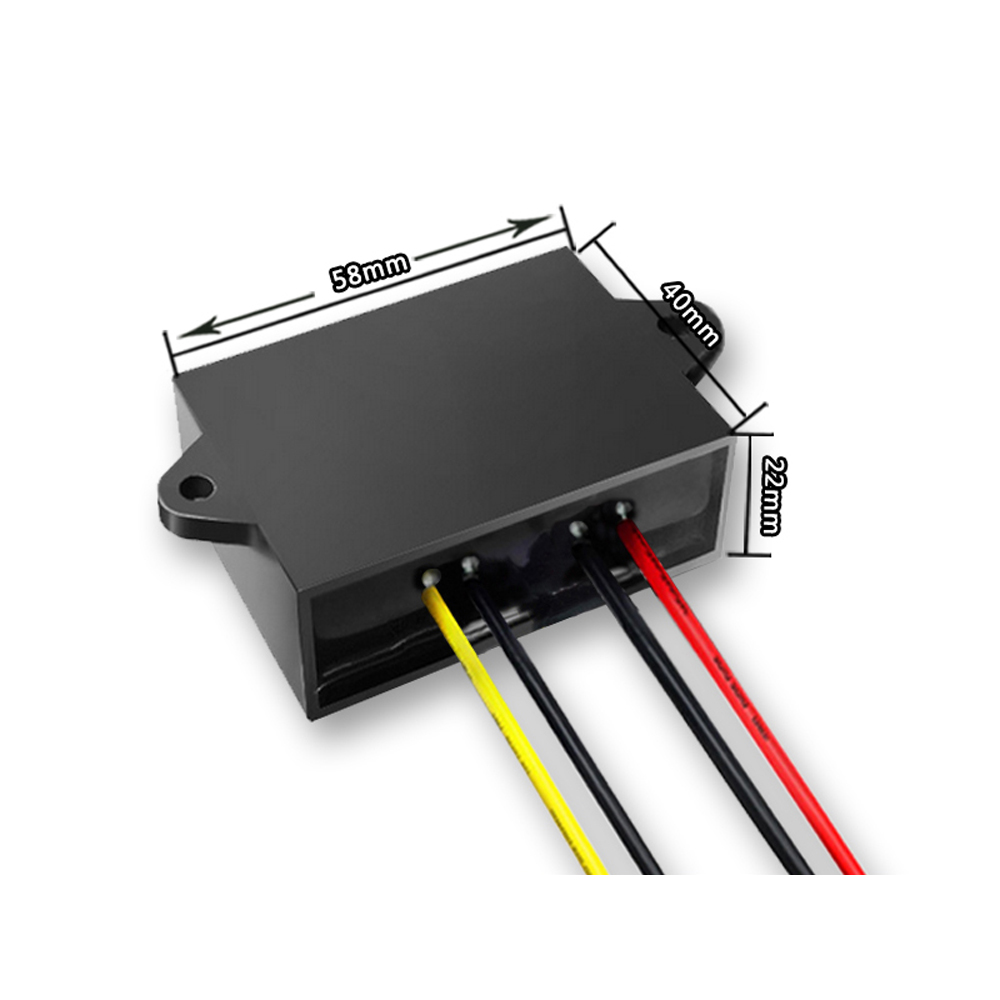

3. Ultra small size (58x40x22mm) and light weight(90g), easy to carry out and install
4.Without reverse connection protection, please wire follow the wiring Instruction, or the module will be burnt

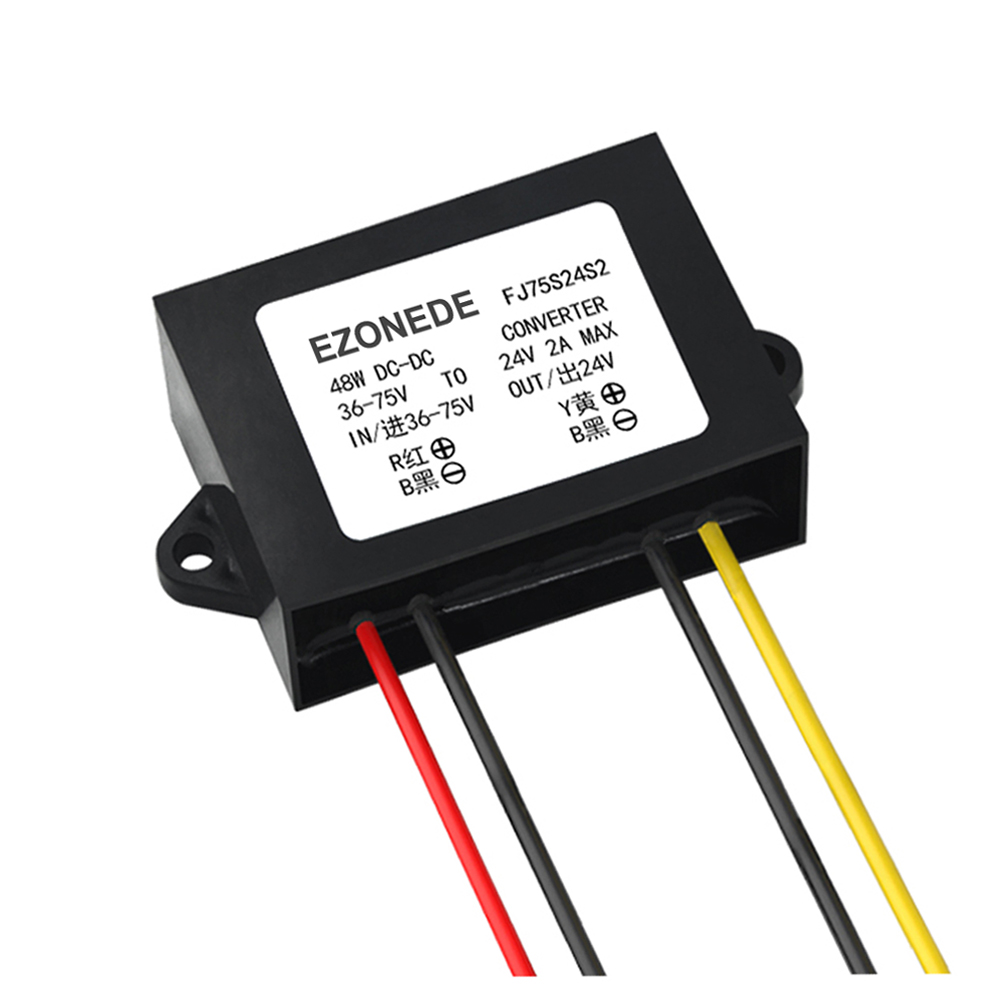

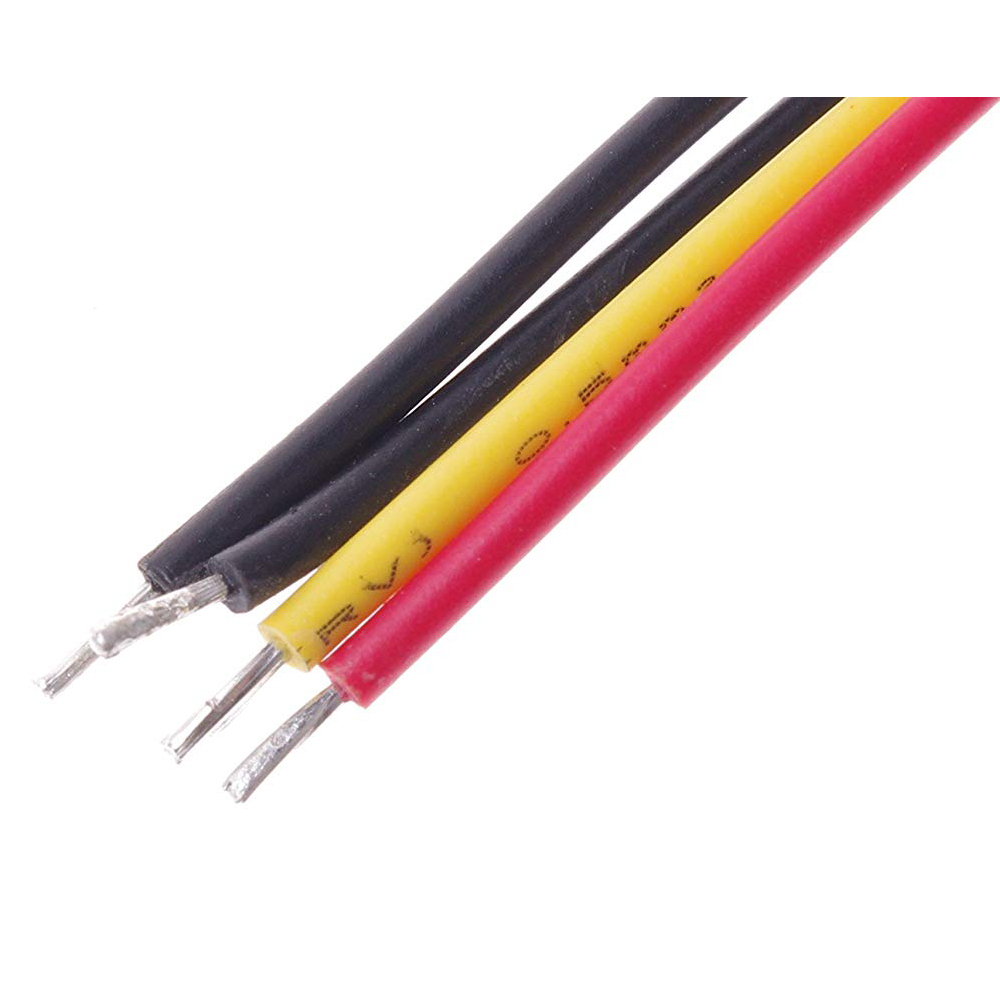

5. Wiring : red wire: input+; black wire: public-; Yellow wire: output+
Features:
Synchronous Buck Power
Input voltage: DC 36-75V
Output voltage: DC 24V
Output Current: 2A 48W long term work
Protection: Output short circuit protection, overload protection

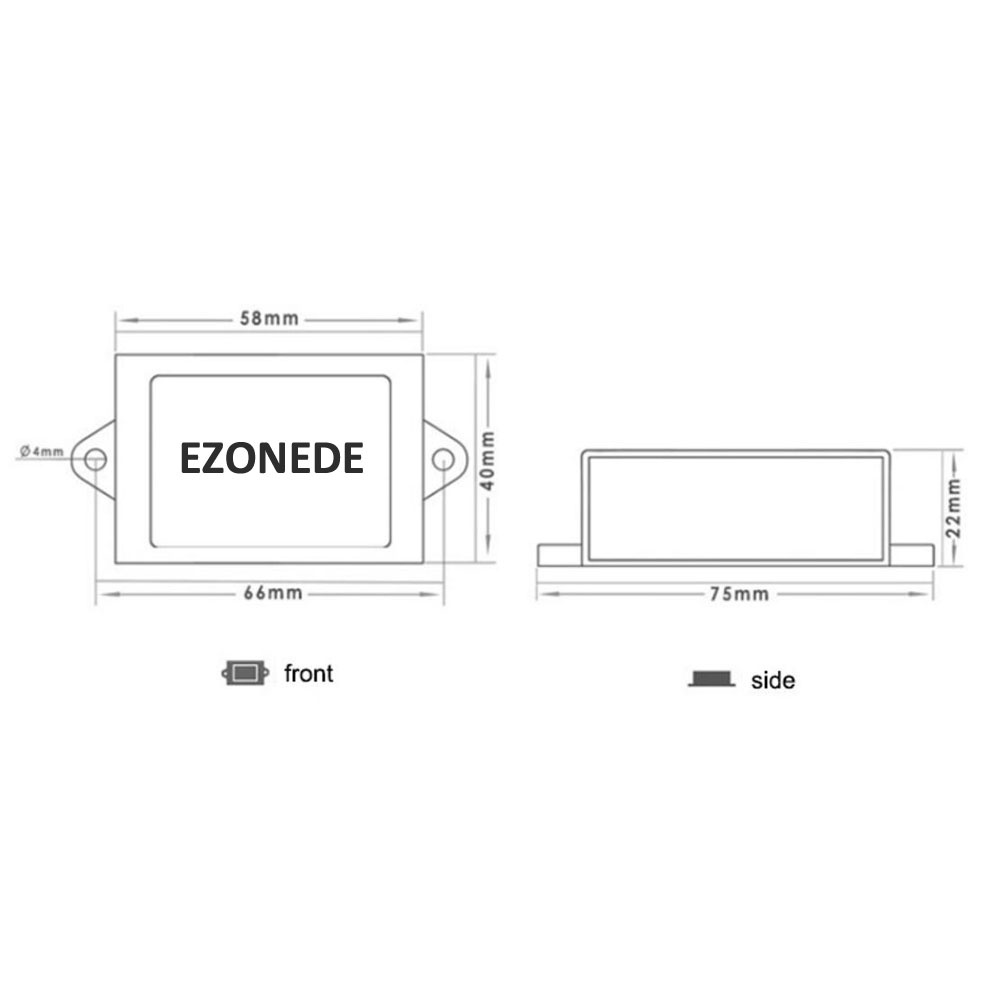

Dimensions: 58x40x22mm
Weight: 90g

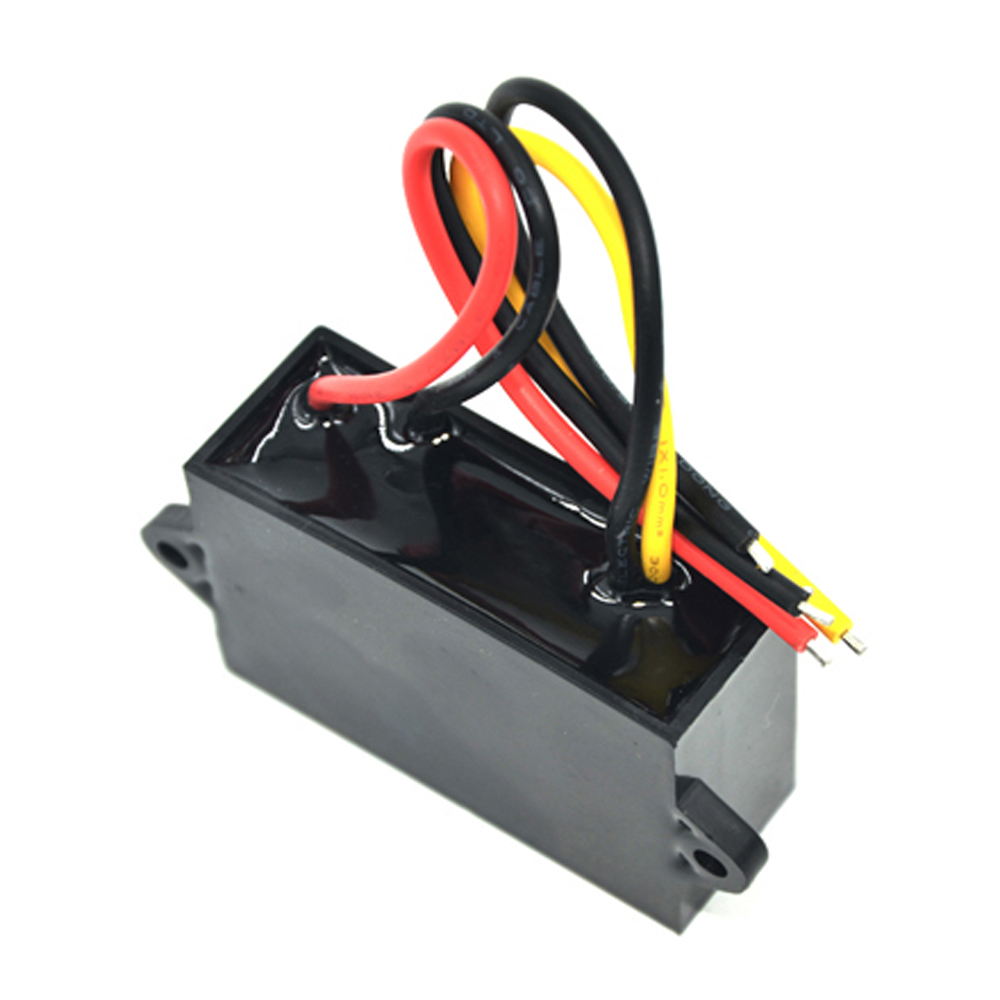

Glue craft, waterproof, moisture-proof, dust-proof, shock-proof
High conversion rate, 90%(full load), up to 95% lower than the heat
Working temperature: -25℃~+65℃ limit -40℃~+80℃
Conversion rate = Input power / input power
Note:
there is no reverse polarity protection, be sure to follow the wiring instructions, otherwise it will be burnt. The red wire is the input positive, the black wire is the public negative, and the yellow wire is the output positive.
Package Included:
1Pcs x DC-DC Converter 60V to 24V
