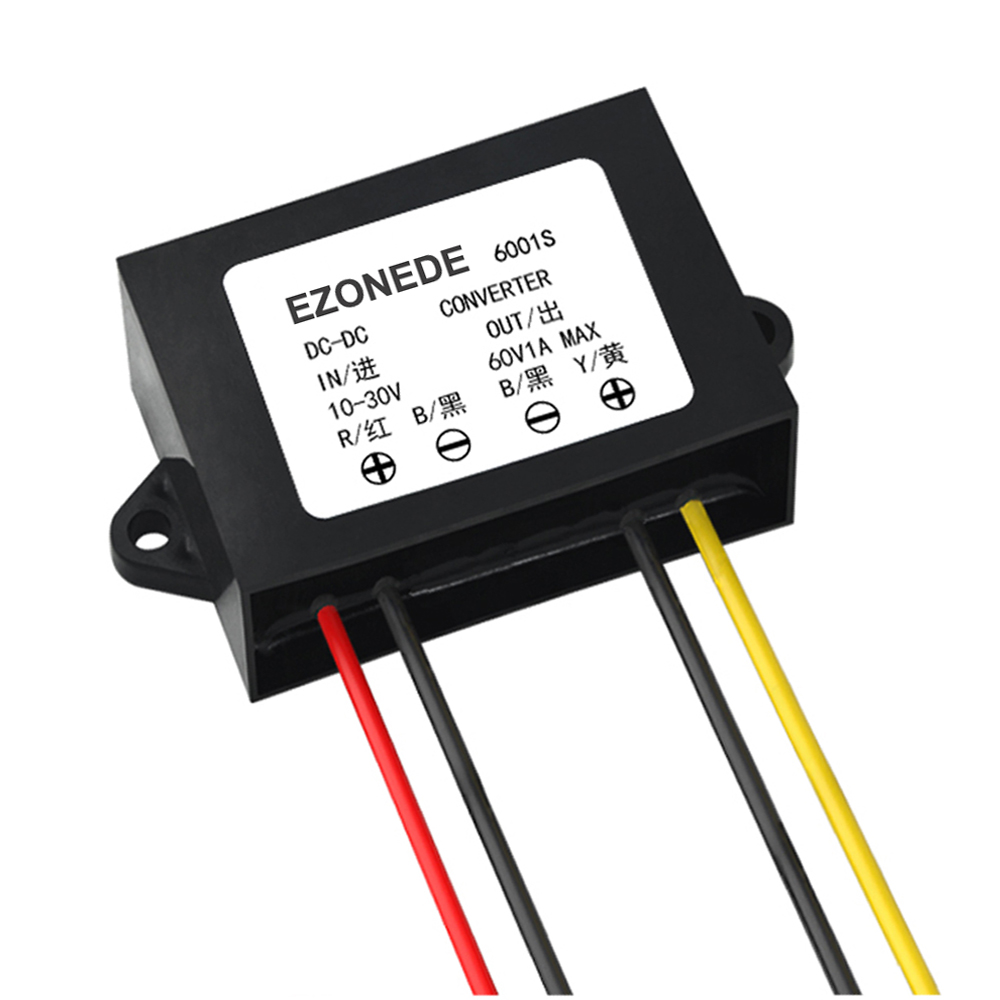

10-30V to 60V 1A 72W DC-DC Converter Boost Step Up Power Transformer 12V to 60V Waterproof DC to DC Voltage Regulator
| Product Name | DC-DC Converter 12V to 60V |
| Brand | EZONEDE |
| Input rated voltage | 12V DC |
| Input voltage range | 10-30V DC |
| Efficiency | 95% |
| Output voltage | 60V |
| Output current | 1A |
| Output rated power | 60W |
| Output peak power | 72W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -25℃~+65℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolated boost module |
| Rectification | Synchronous rectification |
| Waterproof rating | IP67 |
| Full load temperature rise: | 45°C |
| Protection | Over-current,Over-temperature Protection |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 90g |

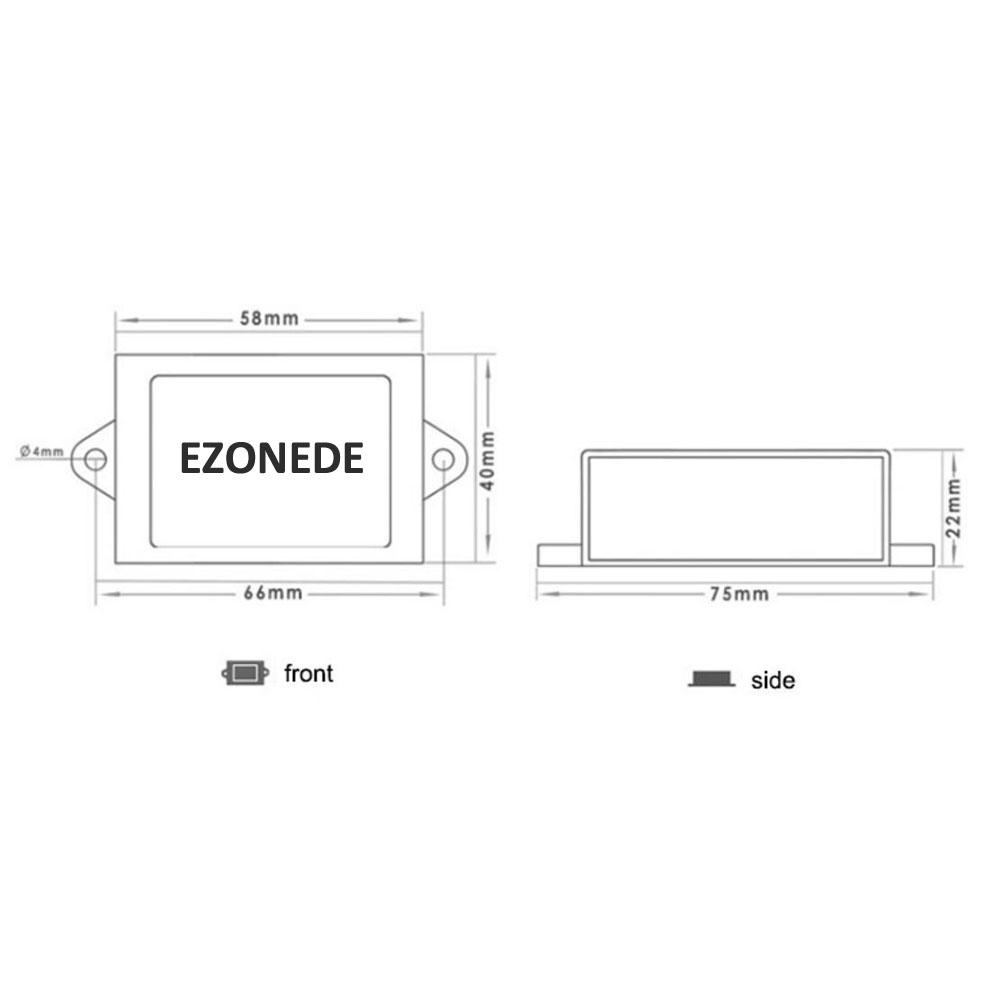

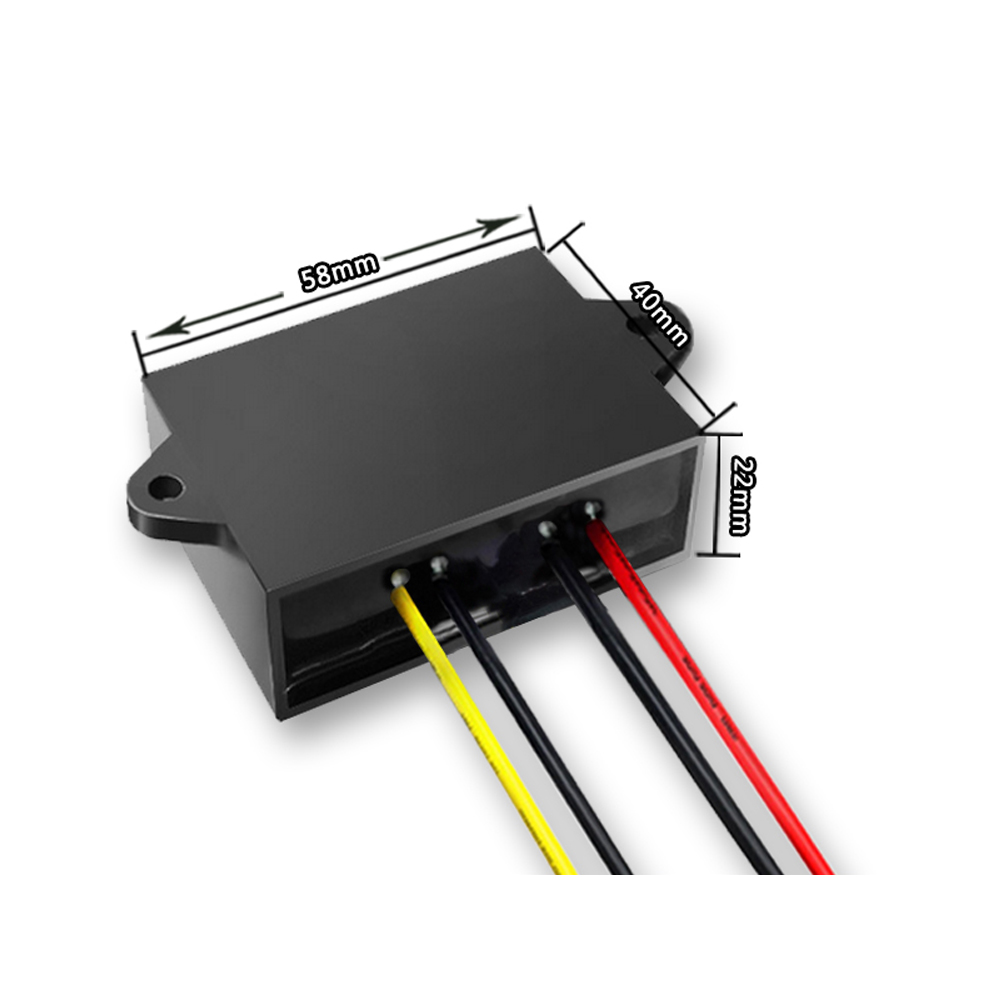

| Product size | 58*40*22MM |
| Attention: | |
| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
