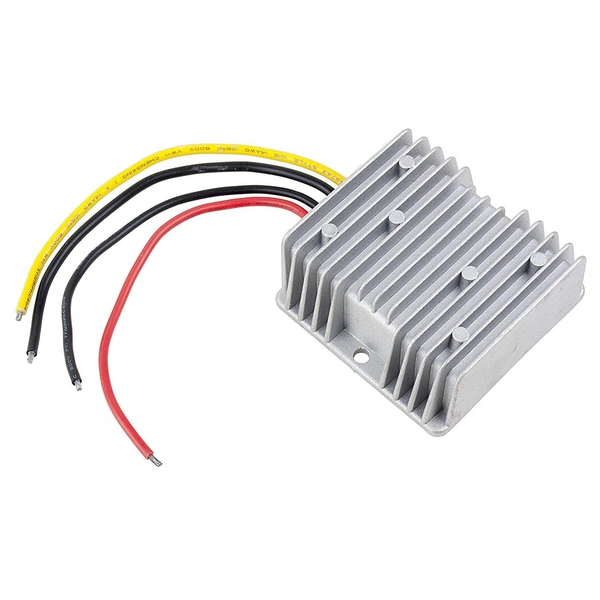

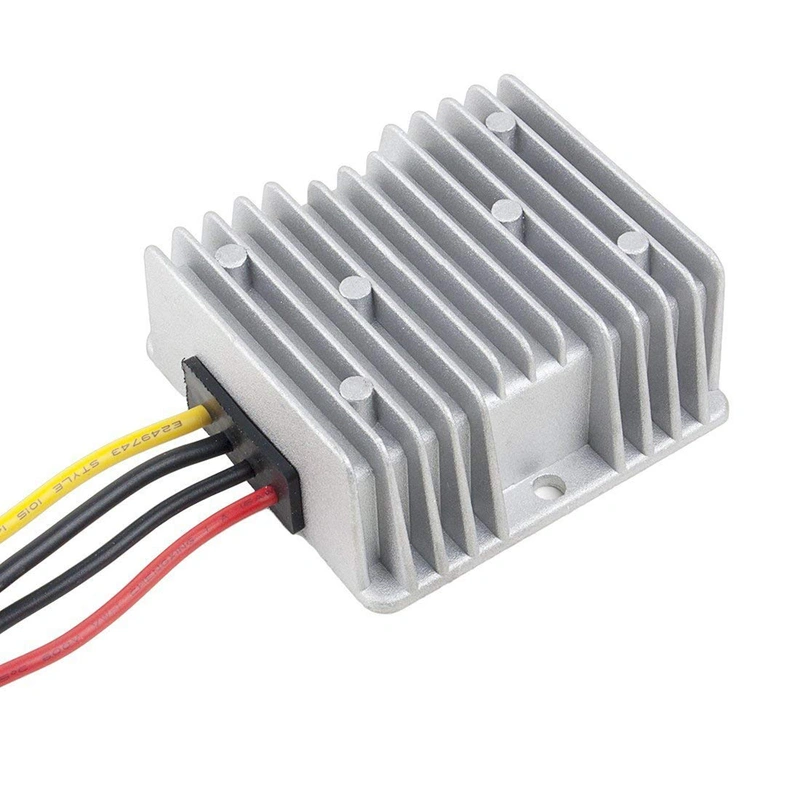

5-11V Step Up To 12V 10A 120W DC to DC Converter Boost Power Supply Module DC 5V 6V 7V 8V 9V 10V 11V to 12VDC Car Power Inverter
| Product Name | 5-11V to 12V 10A120W DC Converter |
| Brand | EZONEDE |
| Model No. | 05111210L |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Cable length | 12cm |
| Input Voltage | DC 5V 6V 7V 8V 9V 10V 11V |
| Input Voltage Range | DC 5-11V |
| Output Voltage | DC 12V |
| Output Current | 10A |
| Output Power | 120W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheating protection | |
| Instant absorption of high voltage protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

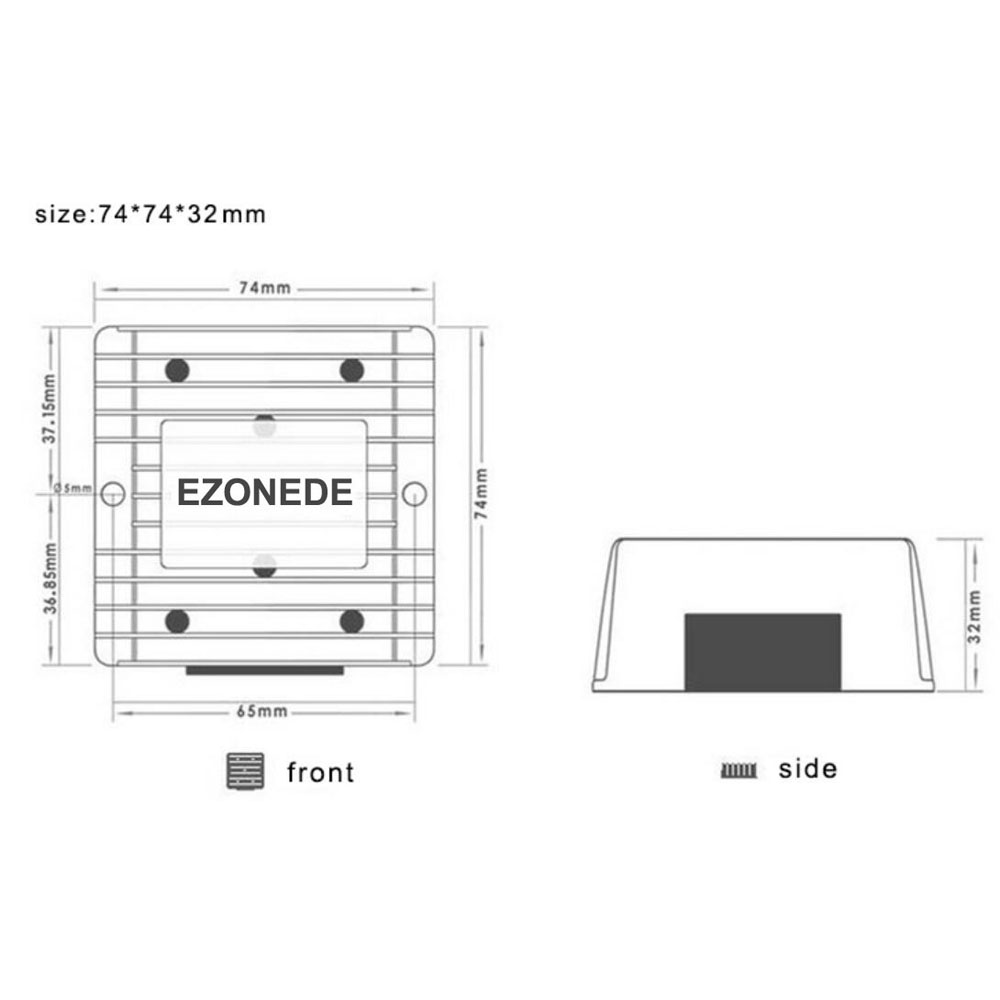

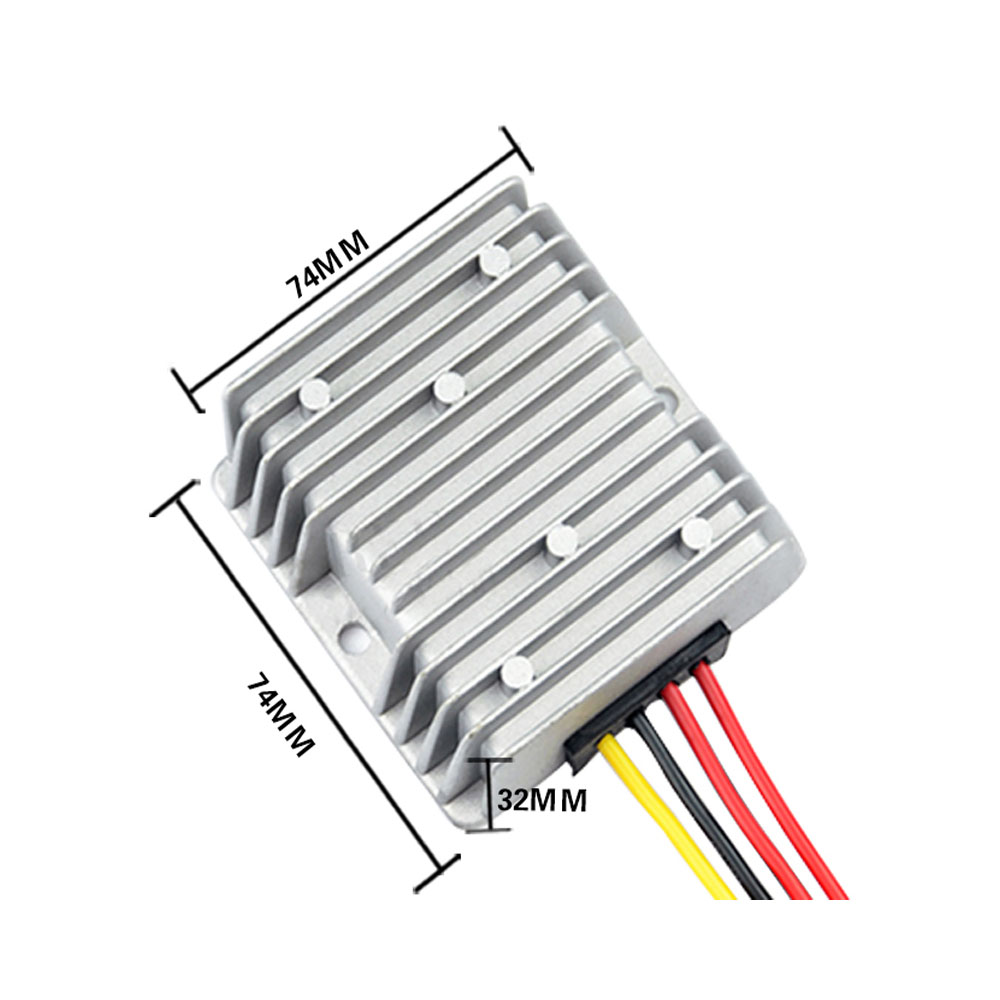

| Product Size (L x W x H) | 74*74*32mm |
| Product Weight | 290g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
