9V-20V to 24V 1A 24W Step Up Boost Converter 12V to 24V 1A Waterproof DC to DC Voltage Regulator Car Power Supply Module
| Product Name | 12V to 24V 1A DC-DC Converter |
| Brand | EZONEDE |
| Model No. | FS12D24A1 |
| Module Properties | non-isolated buck module |
| Rectification | synchronous rectification |
| Input Voltage | DC 12V |
| Input Voltage Range | DC 9-20V |
| Output Voltage | DC 24V |
| Output Current | 1A |
| Output Power | 24W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -20℃~+60℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheating protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

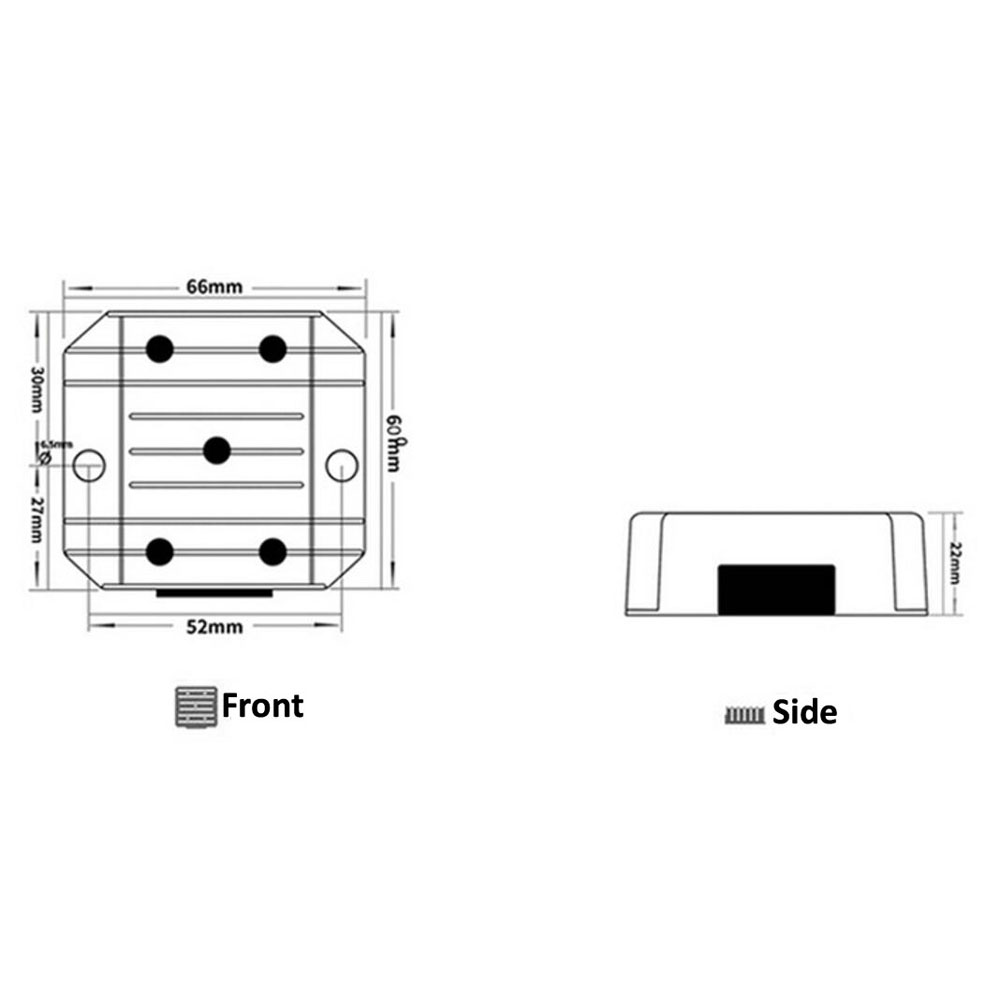

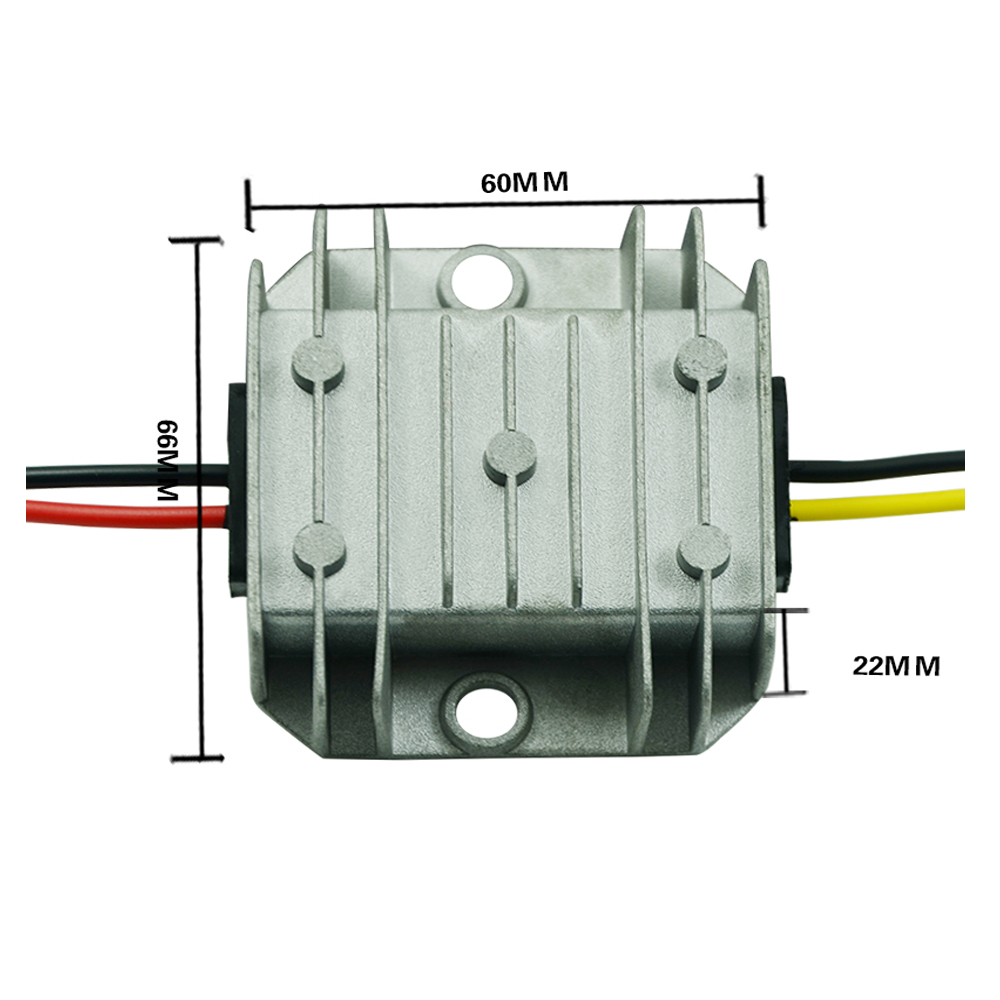

| Product Size (L x W x H) | 66*60*22mm |
| Product Weight | 102g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
