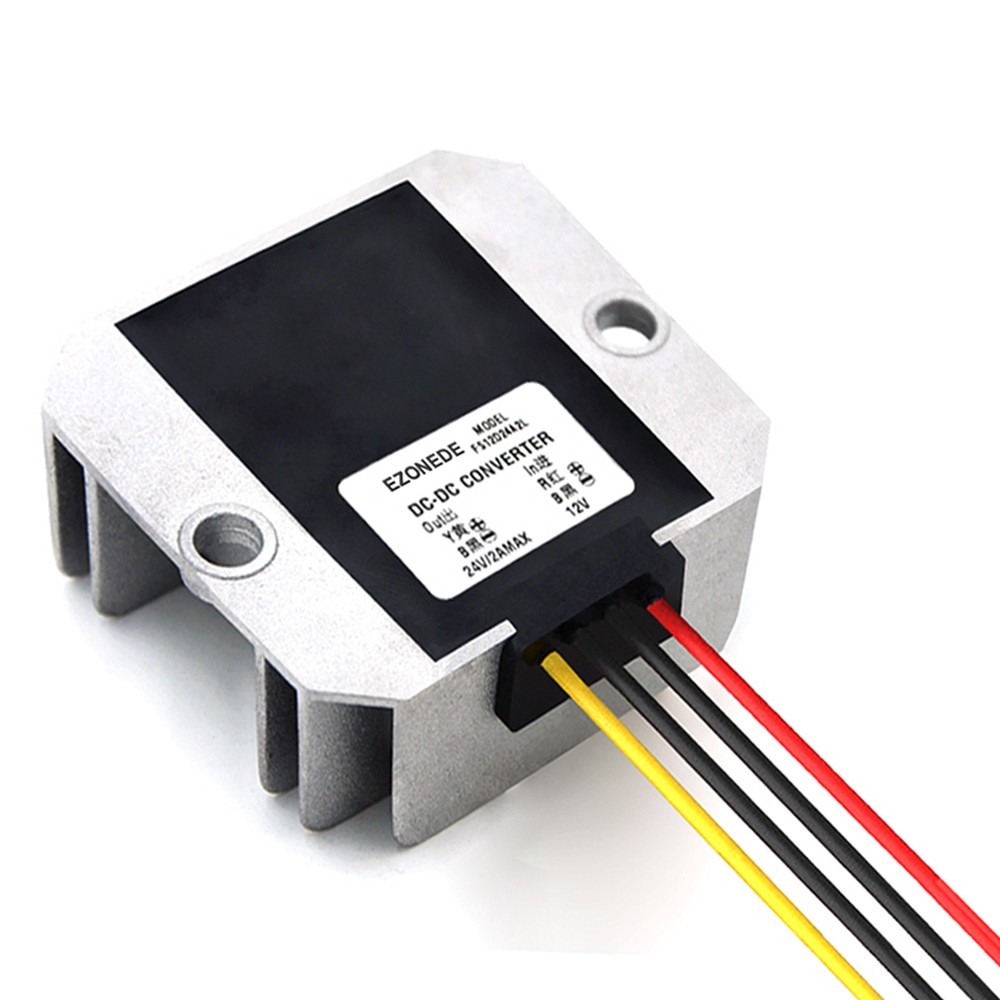

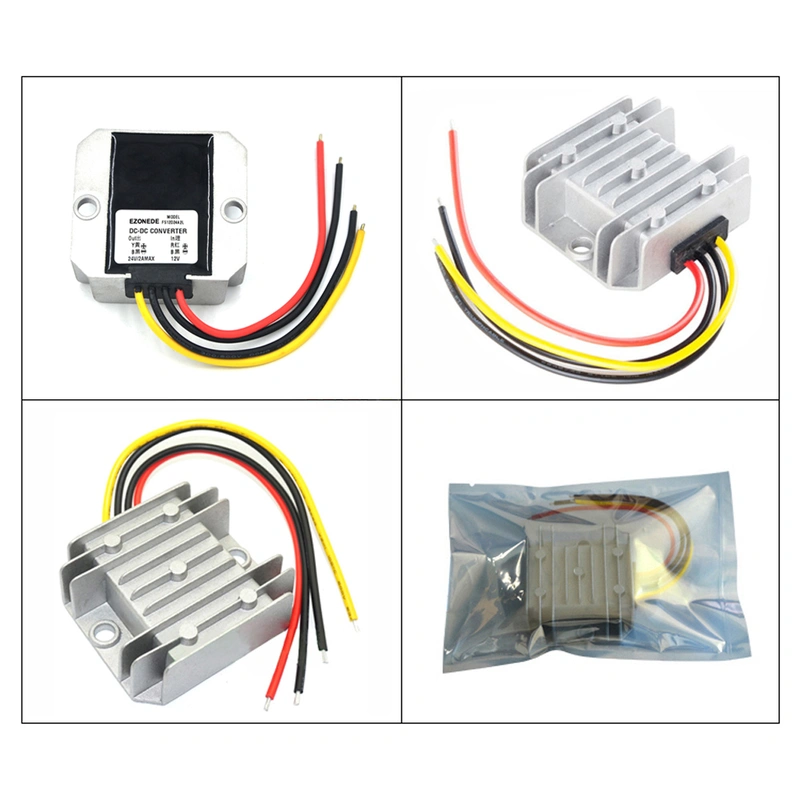

9V-20V to 24V 2A 48W Step Up Boost Converter 12V to 24V Waterproof DC to DC Voltage Regulator Car Power Supply Module
| Product Name | DC-DC Converter 12V to 24V |
| Brand | EZONEDE |
| Module Properties | non-isolated boost module |
| Rectification | synchronous rectification |
| Input Voltage | DC 12V |
| Input Voltage Range | DC 9-20V |
| Output Voltage | DC24V |
| Output Current | 2A |
| Output Power | 48W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | 20-30mA |
| Working Temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat protection 150℃ | |
| Full waterproof potting | |
| Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. |

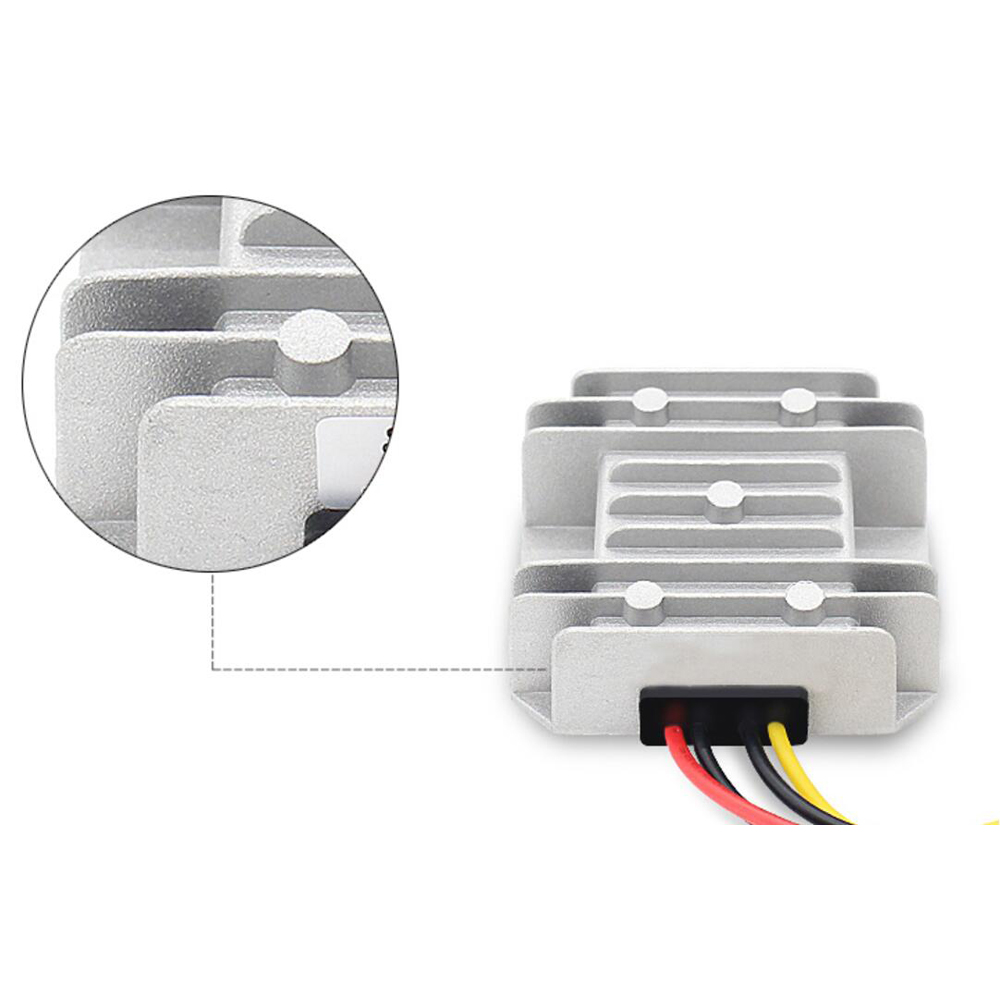

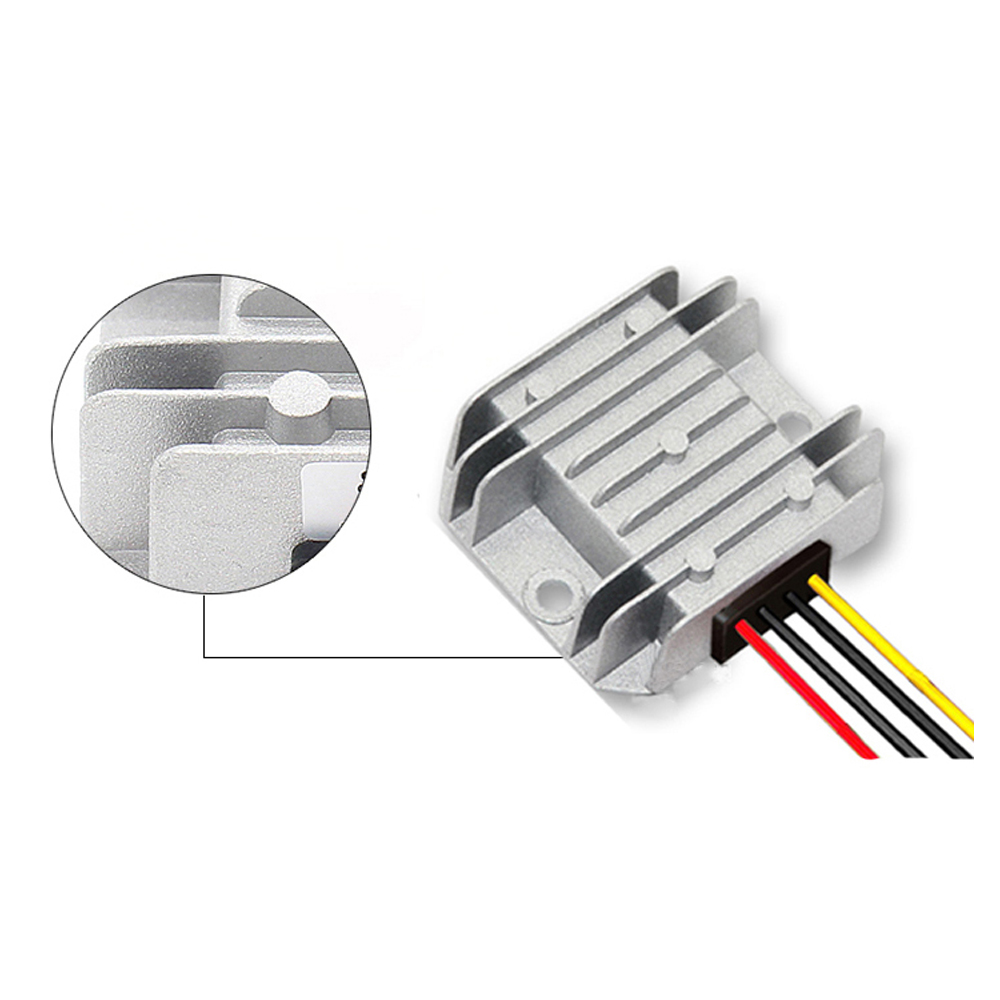

| Case Material | Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

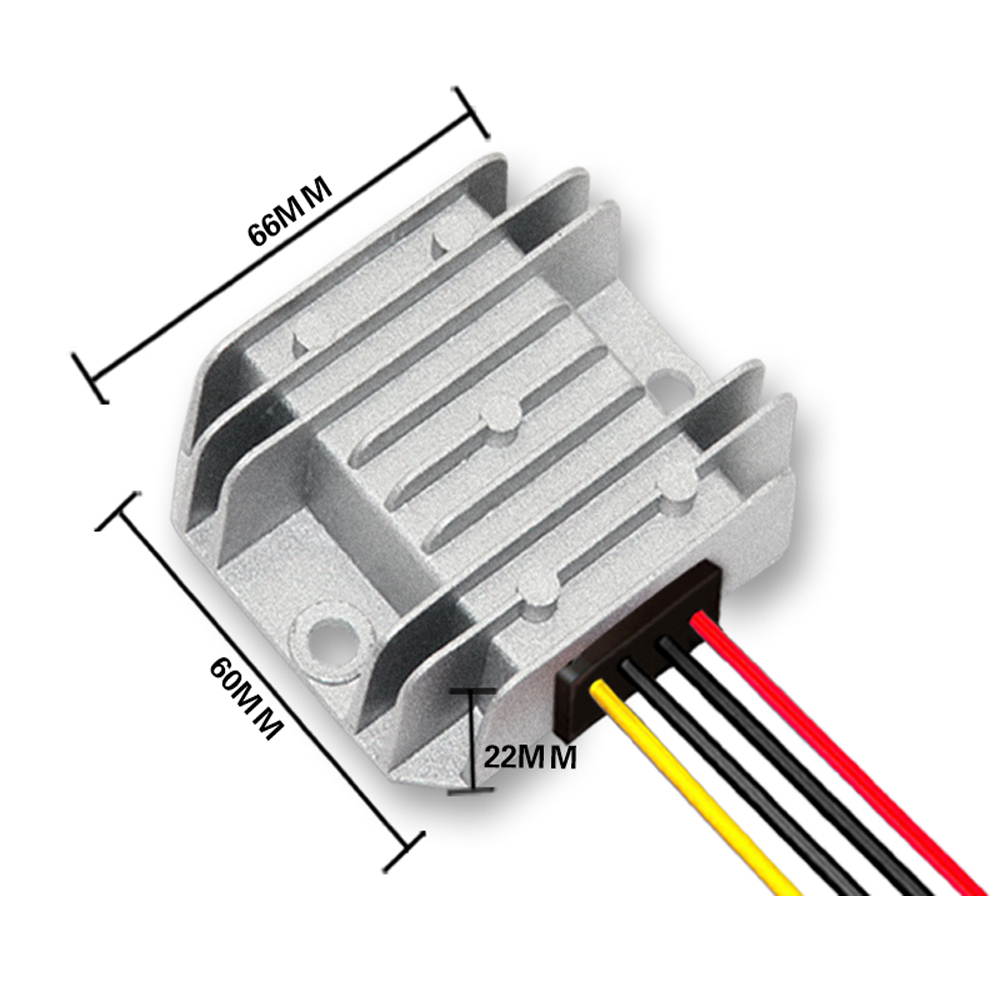

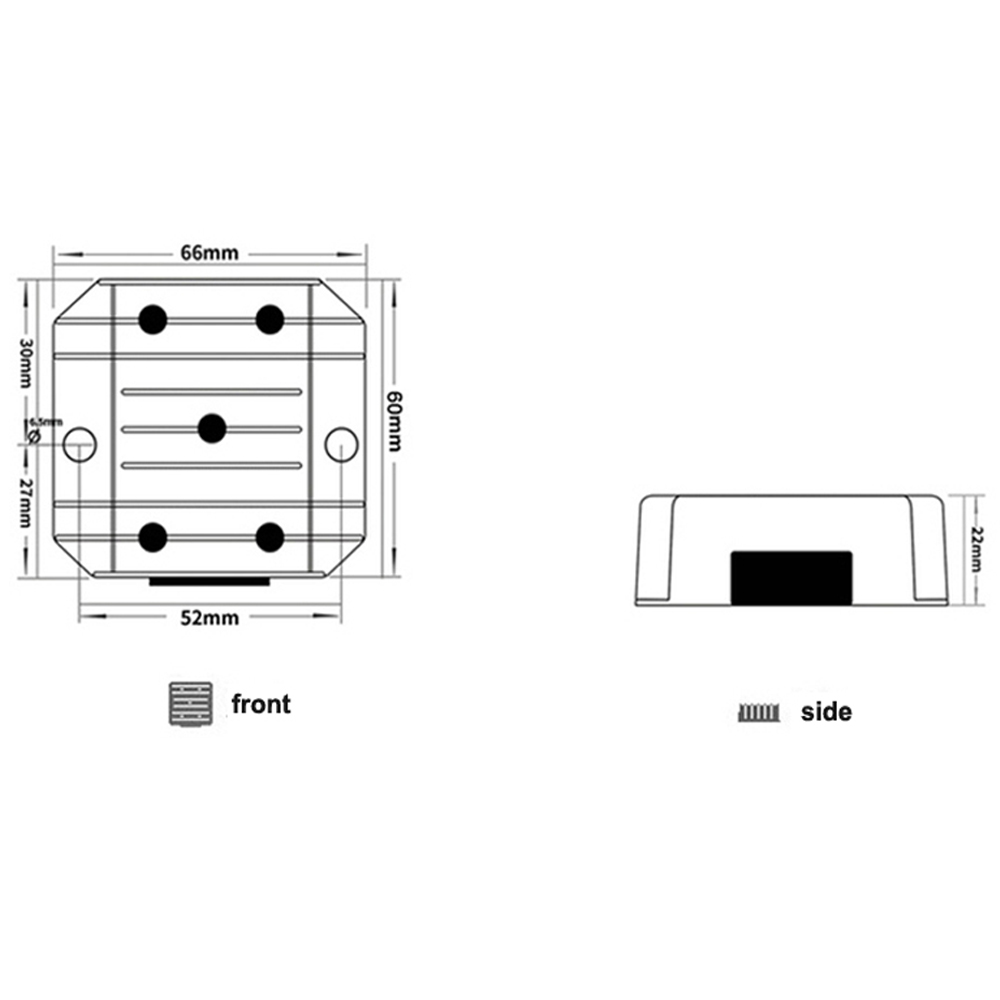

| Product Size (L x W x H) | 66*60*22mm |
| Installation Cable Length | 13-15cm |
| Product Weight | 104g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM Service | Accept |
