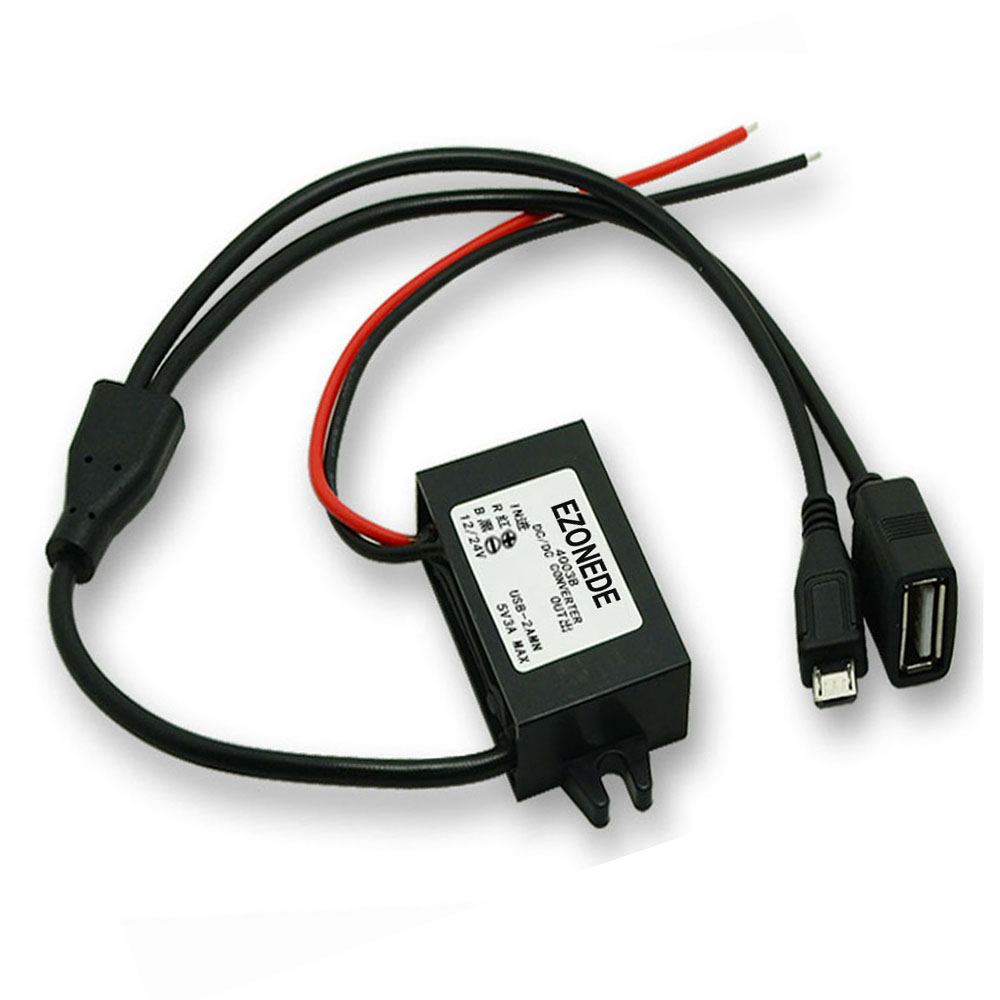

DC-DC Converter 12V 24V To 5V 3A 15W Dual USB (USB female + Micro USB) Power Adapter DC To DC Buck Converter Step Down Power Supply Converter Buck Module Car Power Converter Double USB Cable Connector Car Charger 8-35V To 5V Waterproof
Features:
12 Volt Waterproof
Input voltage: DC 12V/24V (8V-35V) ; Output voltage: 5V, USB female + micro USB male Ports (for USB charging ports (can't be used for iphone)
Output current: MAX 3A , working current 1A ; Output Power:15W. Work temperature:-25℃+60℃
Module Properties: non-isolated buck module (Buck)
Input cable length: Approx 12CM ; Out put USB cable length: Approx 30CM.
This product only accept input voltage DC8-35V, output 5V 3A 15W, And please don't make water into USB port .
>Input voltage: DC 12V/24V (8V-35V)

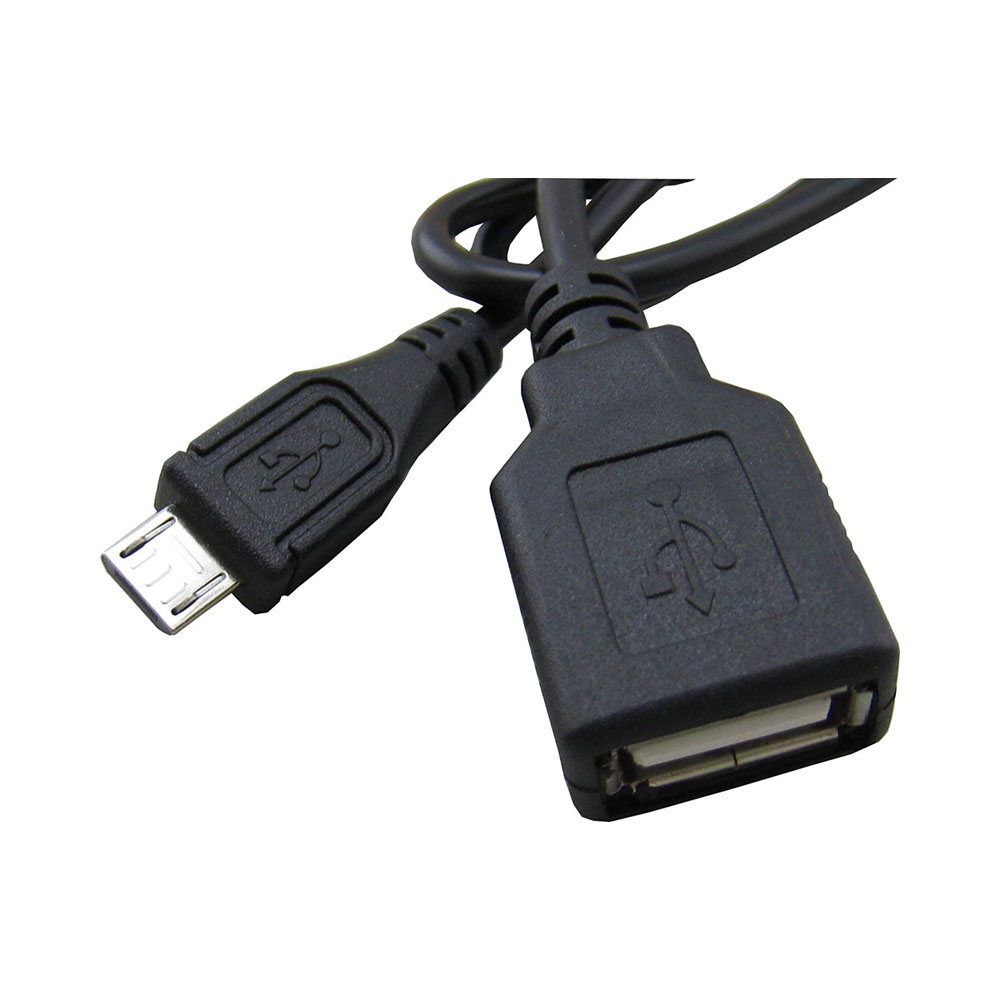

>Output voltage: 5V, USB female + micro USB Ports for phone charging (can't be used for iphone).
>Output current: MAX 3A , working current 1A
>Output Power:15W

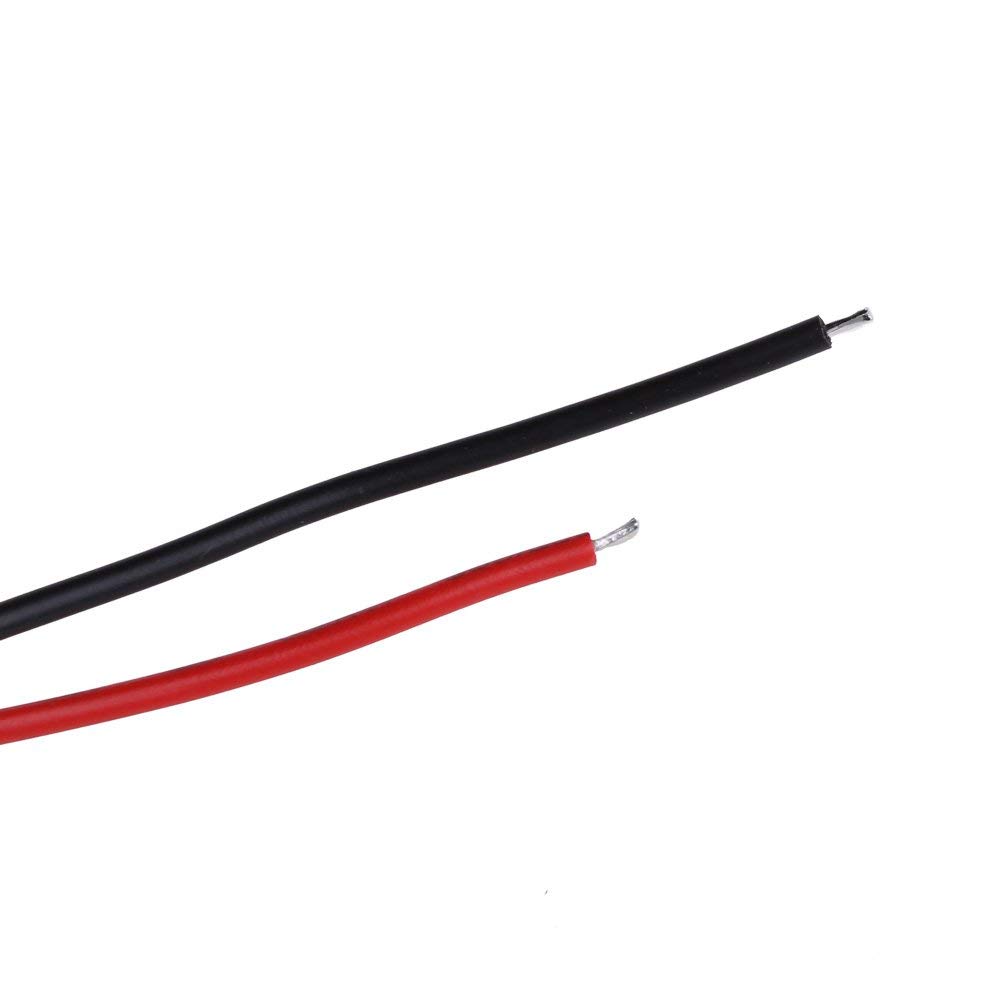

Input cable length: Approx 12CM
Out put USB cable length: Approx 30CM
Benifits:

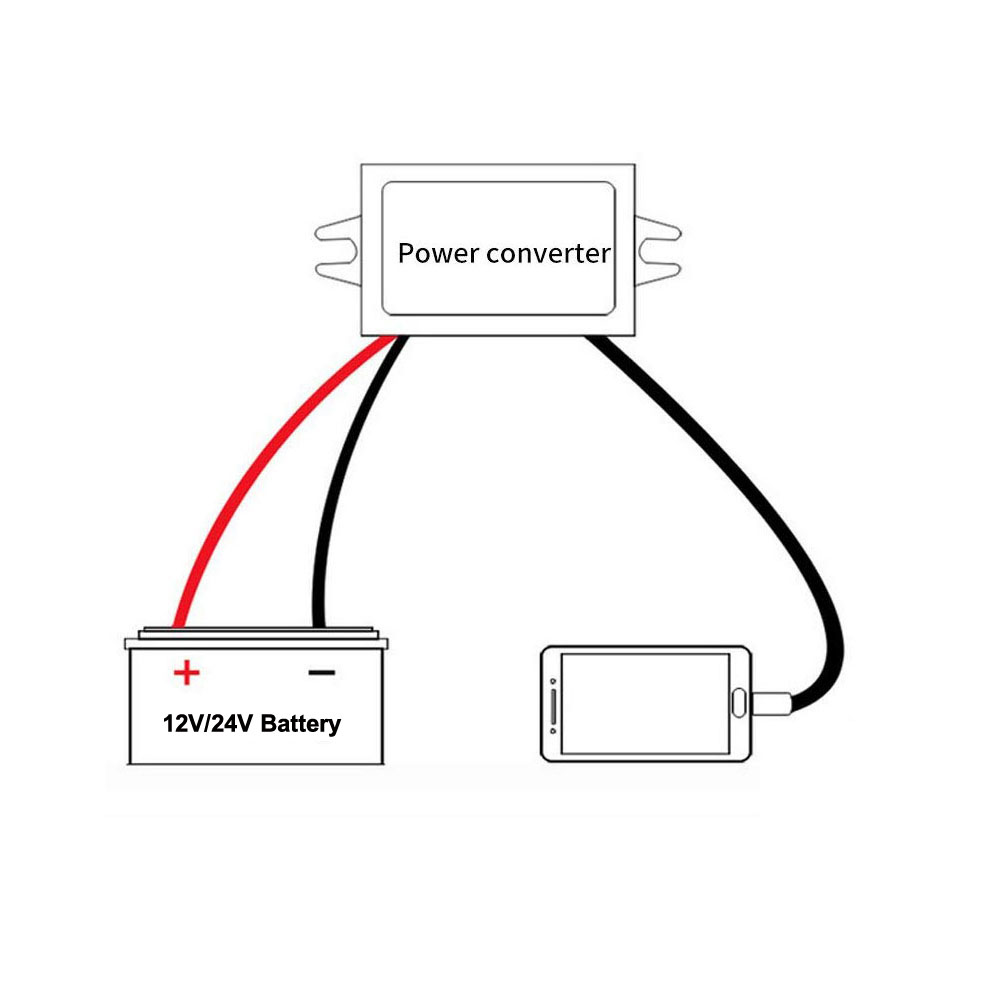

Ideal power solution for driving recorder & nagivator ETC.
Specifications:
Module Properties: non-isolated buck module (BUCK)
Rectification: synchronous rectification
Minimum pressure difference: 3V
Conversion efficiency: 90%
Soft-start time: 500mS
Output ripple: 50mV (MAX) 20M-bandwidth
Full load temperature rise: 50°c
Load regulation: ± 1%
Voltage regulation: ± 2%
Dynamic response speed: 5% 200uS
Operating Temperature: Industrial (-40°c to +85°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation
Protection:
Overcurrent protection
Short-circuit protection
Package Include:
1Pcs X DC/DC Converter 12V to 5V
