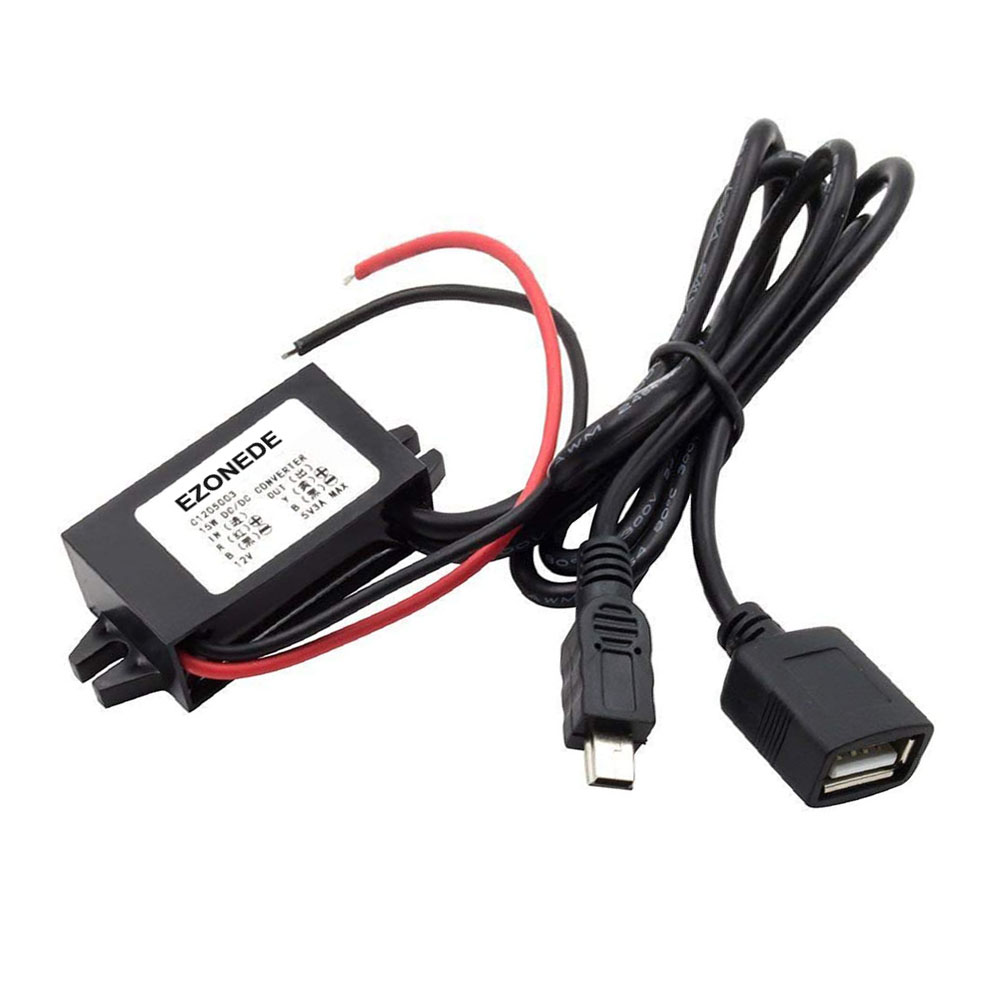

DC/DC Converter 12V to 5V 3A 15W Auto Voltage Buck Transformer Board Step-down DC Volt Regulator Mini Electrical Power Converter with 5 Pins Mini USB Adapter Connector Plug Dual Output
Features:
This module is Female USB port + Male mini usb plug , full glue, waterproof, anti-moist and anti-shock.
Input voltage: 8V-22V ; Output Voltage: 5V,1A. MAX 3A.
With over-current, over-heating and short-circuit protection, safe and reliable.
Low power consumption of 10 to 12MA when in empty load and high transfer efficiency of 90%
12V Step-down Converter
Description:

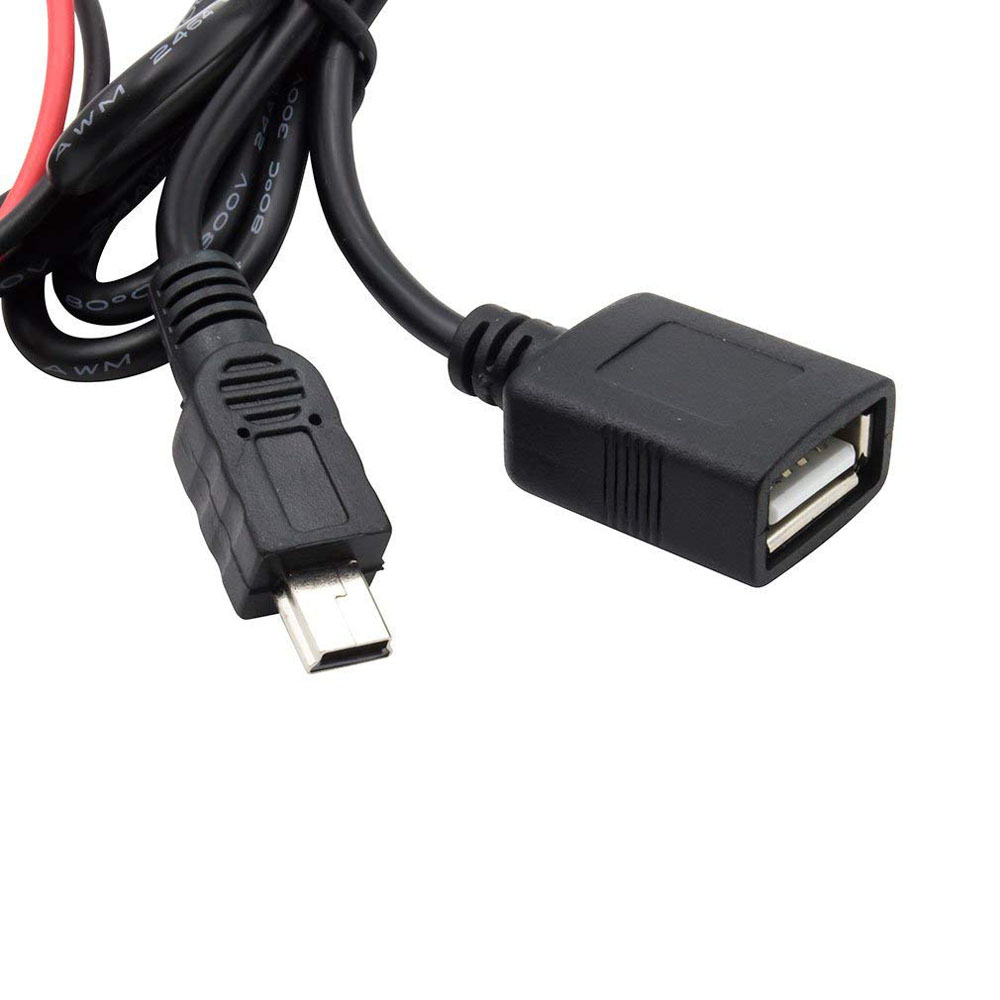

1 female USB port+1 male mini usb plug
Input voltage: 8V-22V
Output Voltage: 5V ,1A. MAX 3A
>Input voltage: DC 12V (8V-22V)
>Output voltage: 5V, 1 female USB port+1 male mini usb plug(for USB and Mini USB charging ports(can't be used for iphone).
>Output current: MAX 3A , working current 1A
>Output Power:15W
Input cable length: Approx 12CM
Output USB cable length: Approx 30CM
Benifits:

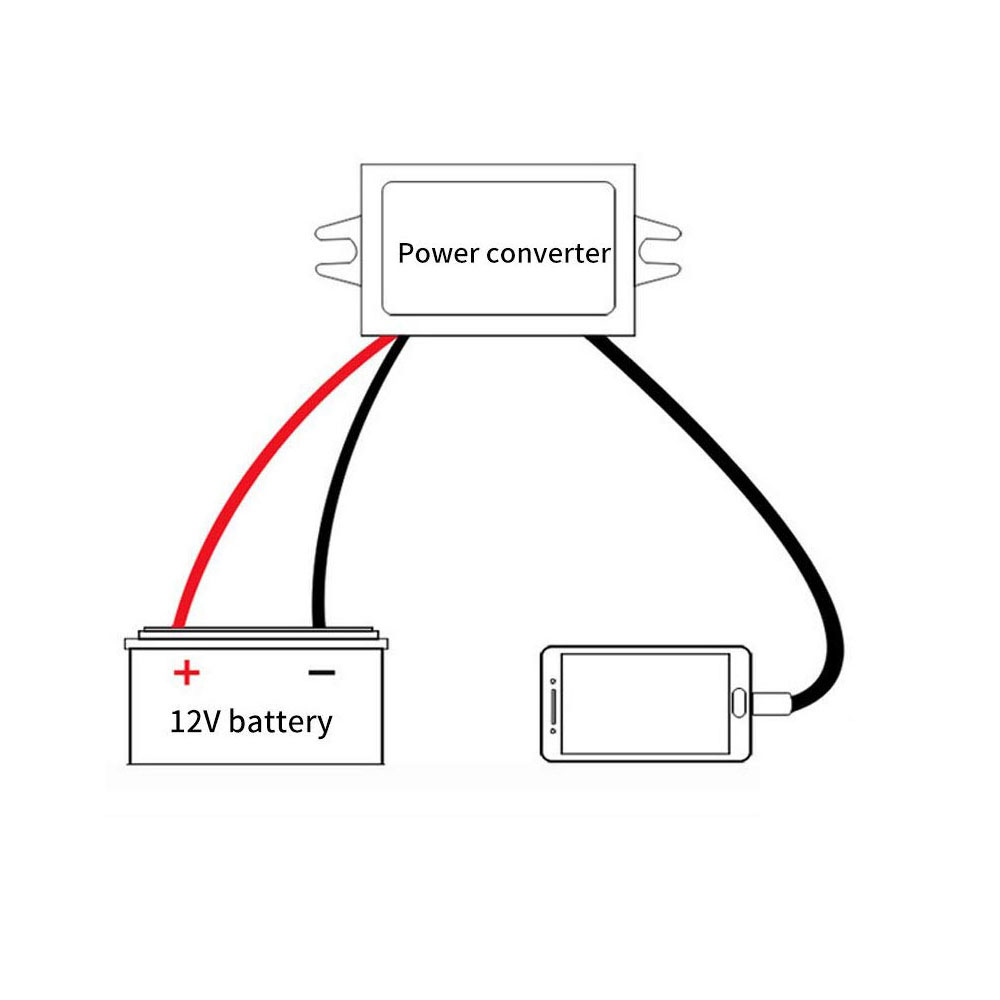

Ideal power solution for driving recorder & nagivator ETC.
Overcurrent，Short-circuit protection
Specifications:
Module Properties: non-isolated buck module (BUCK)
Rectification: synchronous rectification
Minimum pressure difference: 3V
Conversion efficiency: 90%
Soft-start time: 500mS
Output ripple: 50mV (MAX) 20M-bandwidth
Full load temperature rise: 50°c
Load regulation: ± 1%
Voltage regulation: ± 2%
Dynamic response speed: 5% 200uS
Operating Temperature: Industrial (-25°c to +60°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Package Includes:
1Pcs * DC/DC Converter 12V to 5V
