DC-DC Converte 8-40V to 24V 1A 24W Automatic Voltage Regulator Stabilizer Buck Boost Step Up/Step Down Power Converter 12V 24V to 24V Power Converter Transformer
| Product name | DC-DC Converte 8-40V to 24V |
| Brand | EZONEDE |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 8-40V |
| Output voltage | 24V |
| Output current | 1A MAX |
| Output rated power | 24W |
| Output peak power | 28W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Efficiency | 95% |
| Working temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolate module |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50℃ |
| Protection | Over-current, Over-temperature, |
| Instant absorption of high voltage protection | |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 100g |

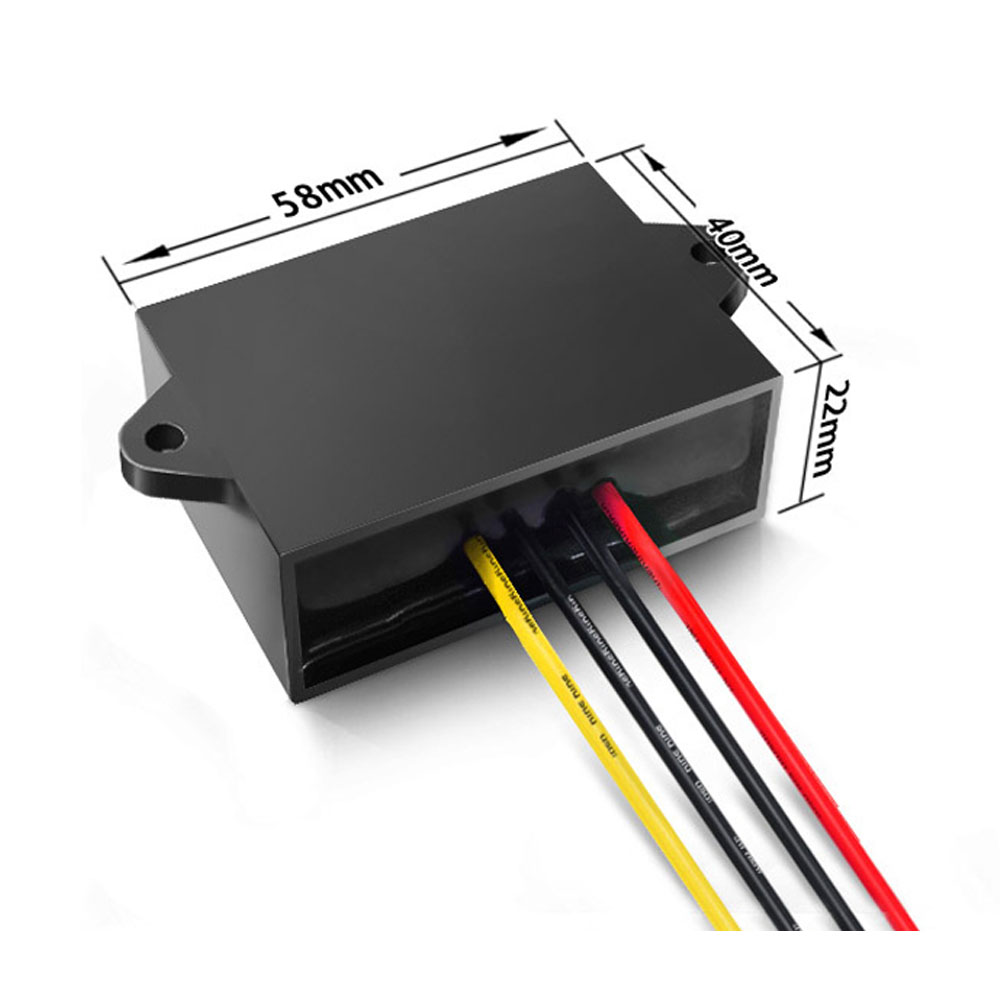

| Product size | 58*40*22mm |
| Attention: | |

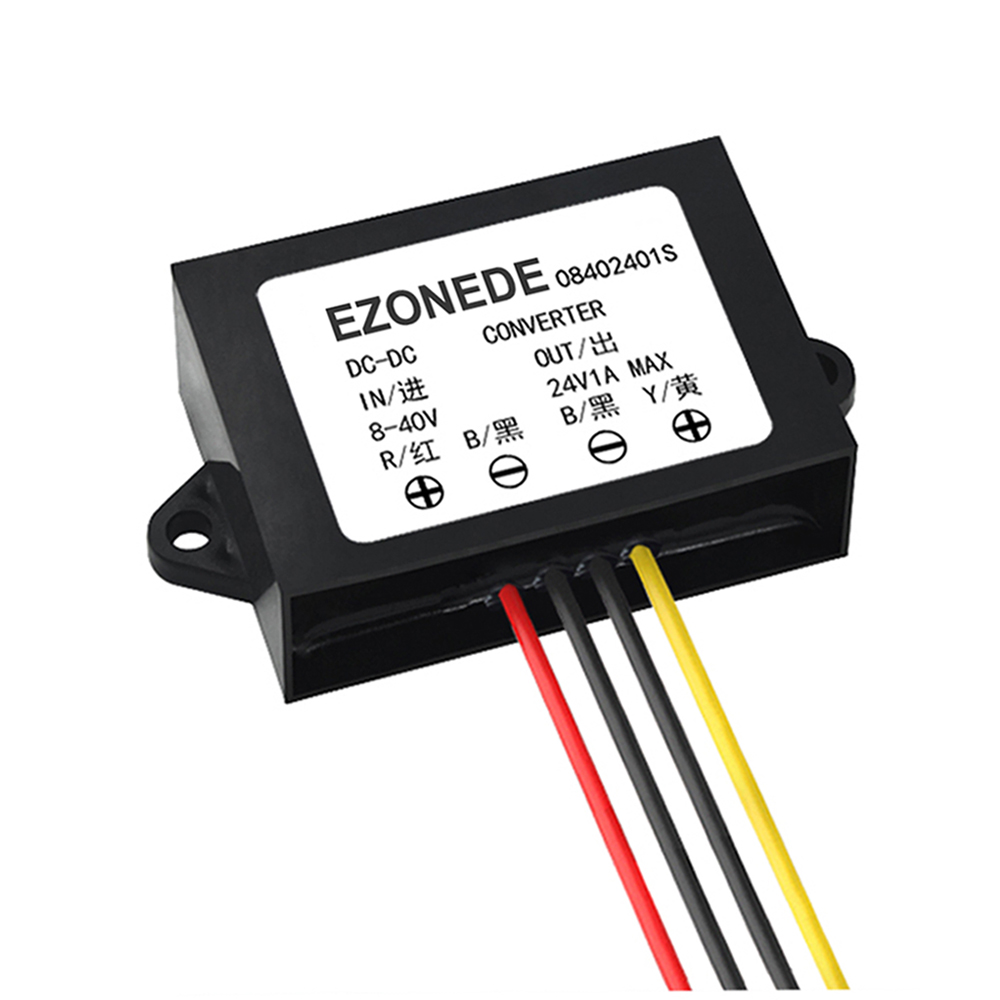

| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
