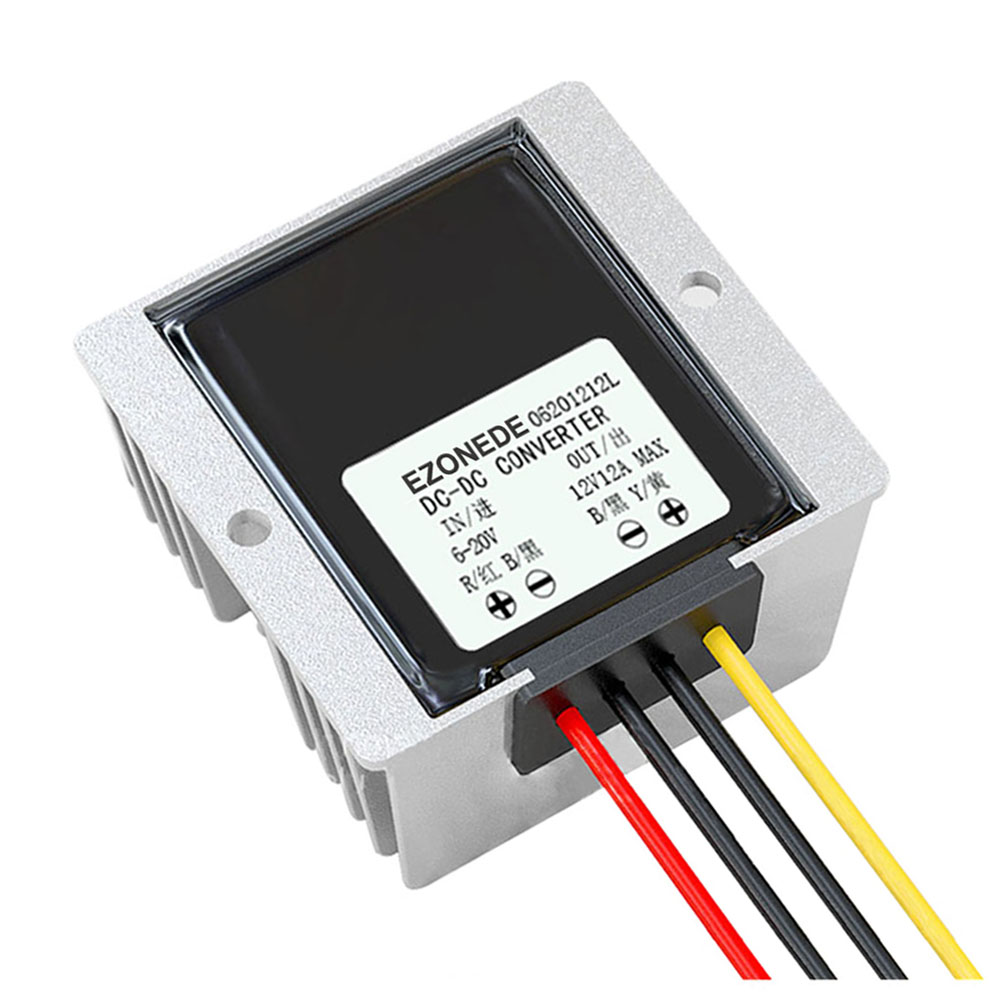

DC-DC Converter 6-20V to 12V 12A 144W Automatic Voltage Regulator Stabilizer Buck Boost Converter 12V to 12V Power Converter Transformer
| Product Name | DC-DC Converter 6-20V to 12V |
| Brand | EZONEDE |
| Input rated voltage | DC 12V |
| Input voltage range | DC 6-20V |
| Efficiency | 95% |
| Output voltage | 12V |
| Output current | 12A MAX |
| Output rated power | 144W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolated module |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50℃ |
| Protection | Over-current, Over-temperature, Instant absorption of high voltage protection |
| waterproof IP68 design, anti-shock protection | |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 97g |

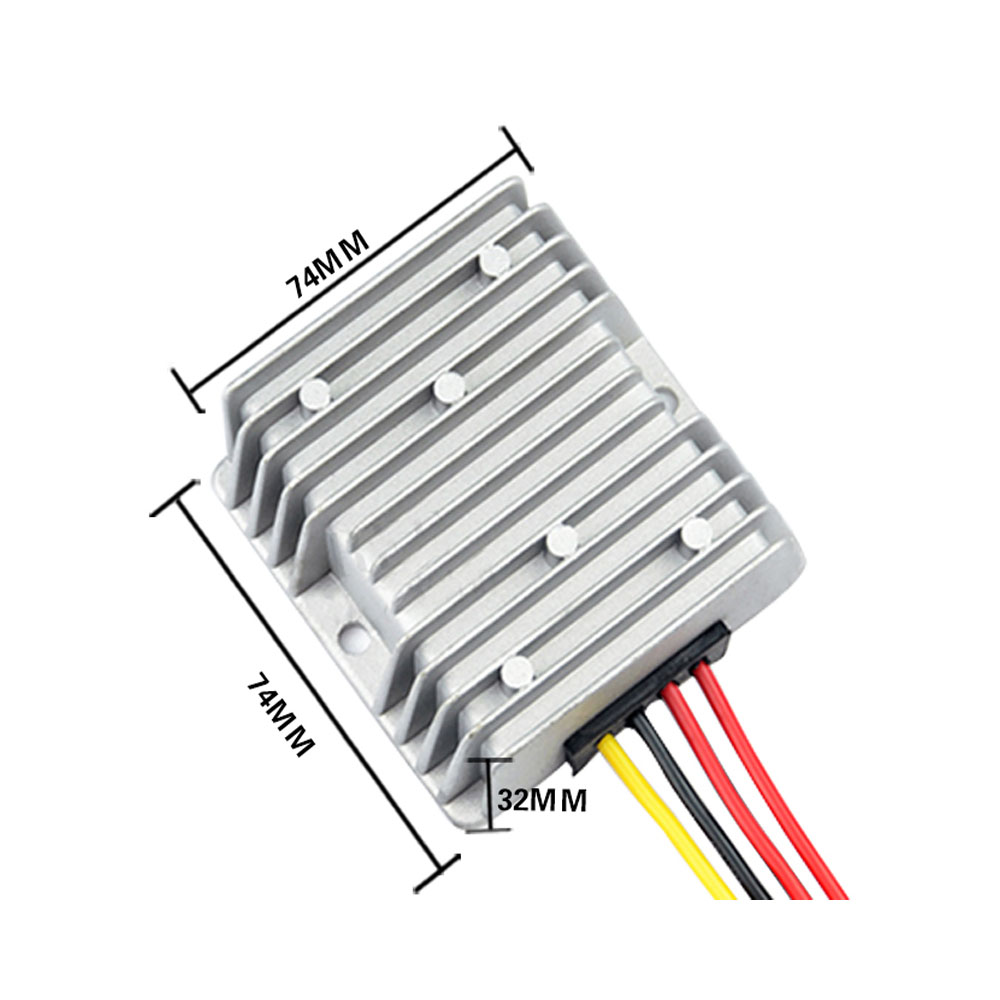

| Product size | 58*40*22mm |
| Attention: | |

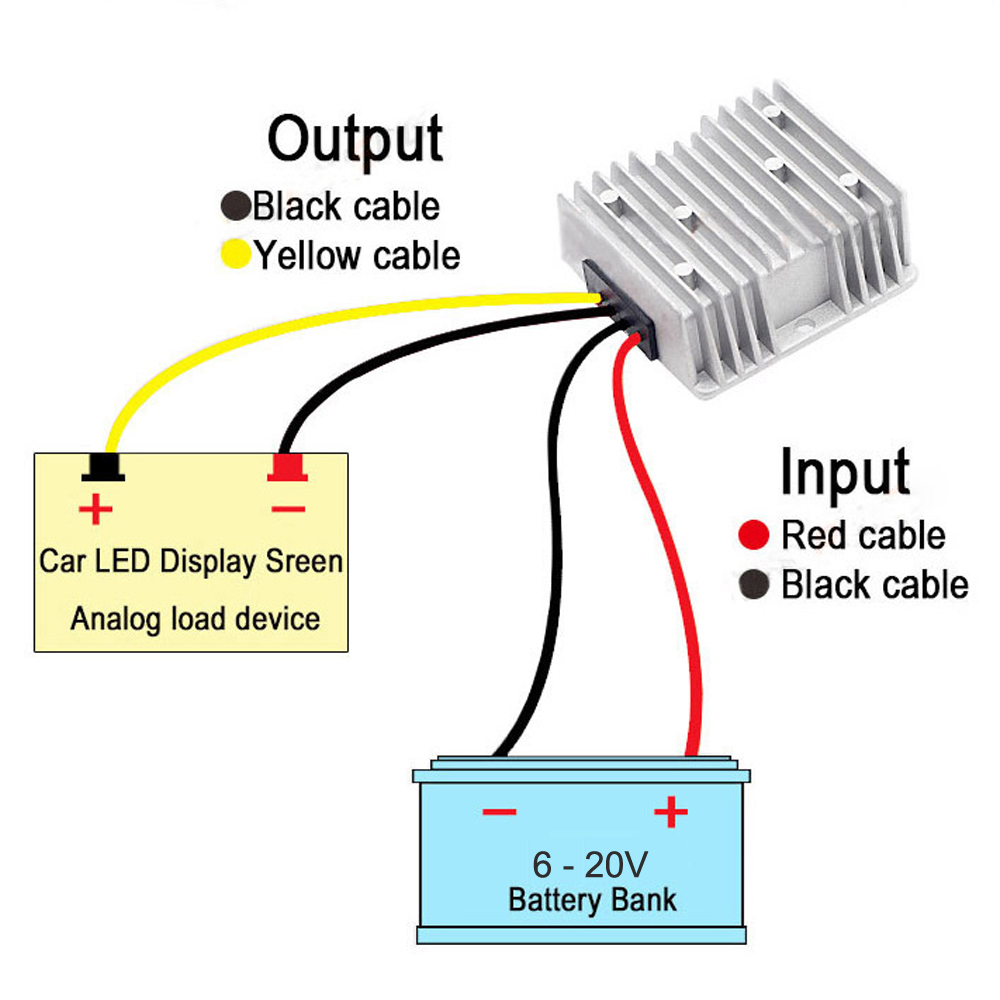

| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
