DC-DC Converter 10-40V to 12V 3A 36W Automatic Voltage Regulator Stabilizer Buck Boost Converter 12V to 12V Power Converter Transformer
| Product Name | 10-40V to 12V DC-DC Converter |
| Brand | EZONEDE |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 10-40V |
| Output voltage | 12V |
| Output current | 3A MAX |
| Output rated power | 36W |
| Output peak power | 43W |
| Efficiency | 95% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolate module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50℃ |
| Protection | Over-current, Over-temperature,Short-circuit protection, |
| Instant absorption of high voltage protection | |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 290g |

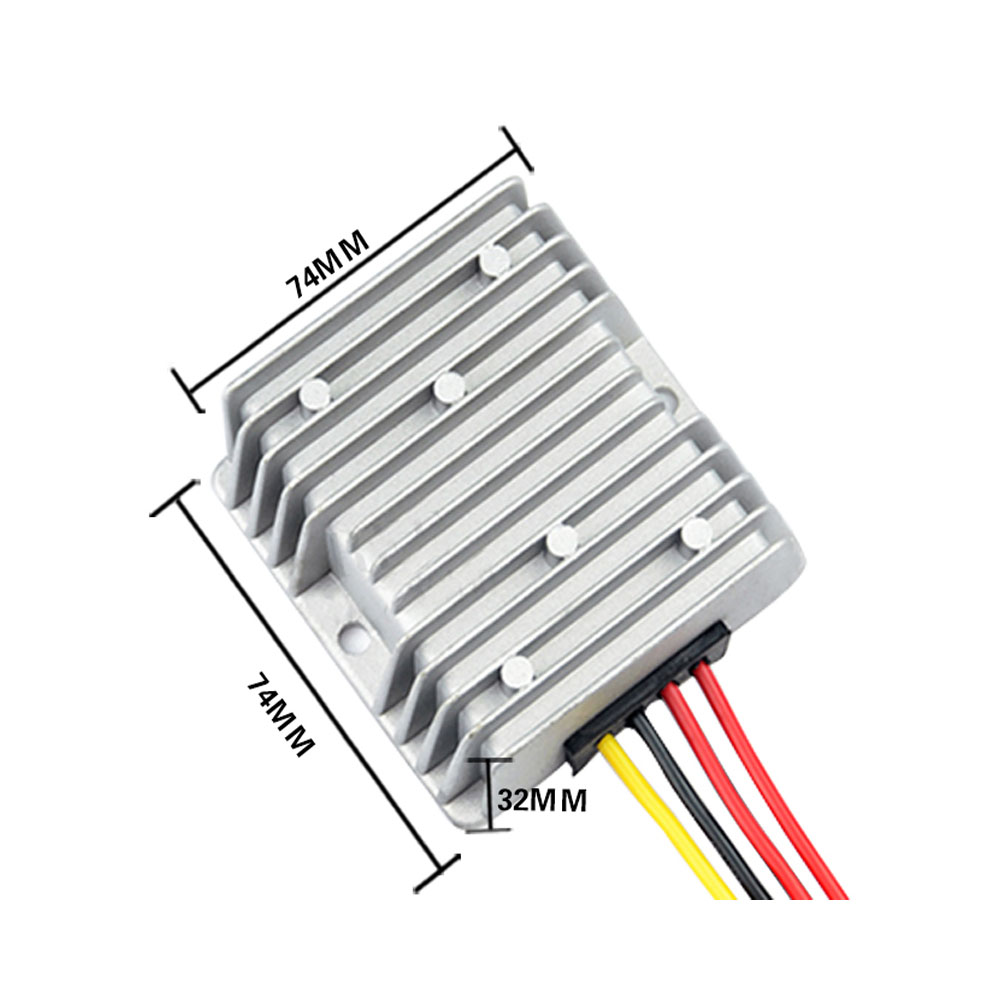

| Product size | 74*74*32mm |
| Attention: | |
| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough. | |
