DC-DC Converter 8-40V to 13.8V 5A 69W Automatic Voltage Regulator Stabilizer Buck Boost Step Up/Step Down Power Converter 12V 24V to 12V Power Converter Transformer
| Product Name | 8-40V to 13.8V DC-DC Converter |
| Brand | EZONEDE |
| Module Properties | Non-isolated boost buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 8-40V |
| Output Voltage | DC 13.8V |
| Output Current | 5A |
| Output Power | 69W |
| Conversion Efficiency | 90% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | 25mA |
| Working Temperature | -35℃~+80℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Over-voltage protection | |
| Overheat protection | |
| Short-circuit protection | |

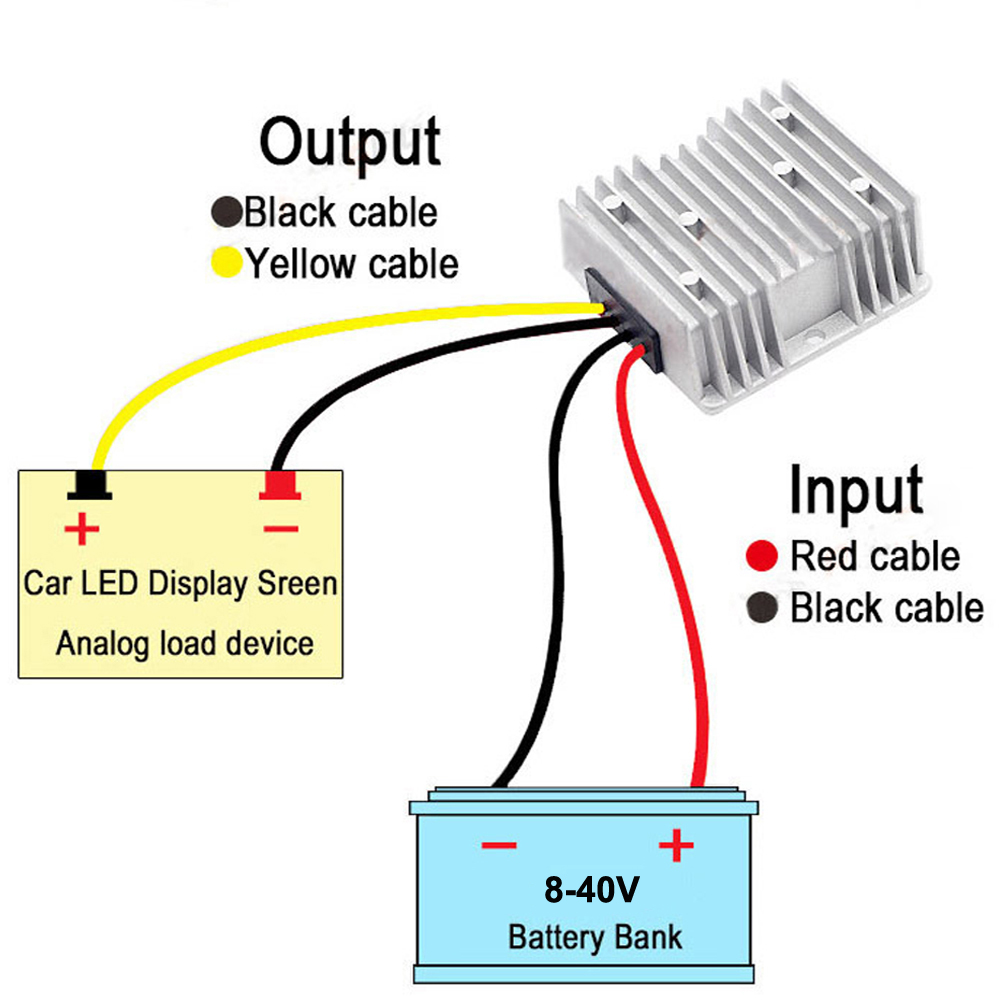

| Input/Output | Please follow label instructions wiring strictly |
| Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
| GPS Navigation, Monitoring, Air conditioning | |
| LED car display, DVD, LED bulb lights | |
| Wind Power System, Solar Panel Power System | |
| Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
| Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

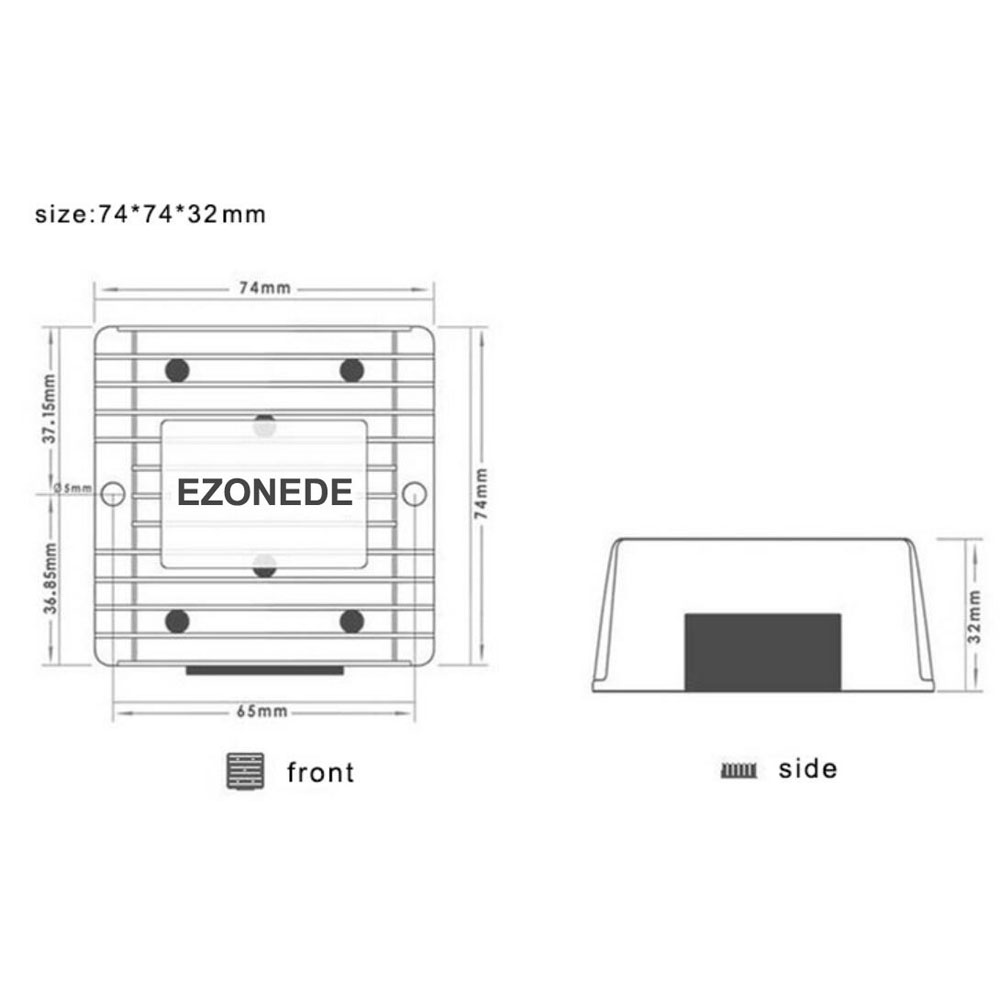

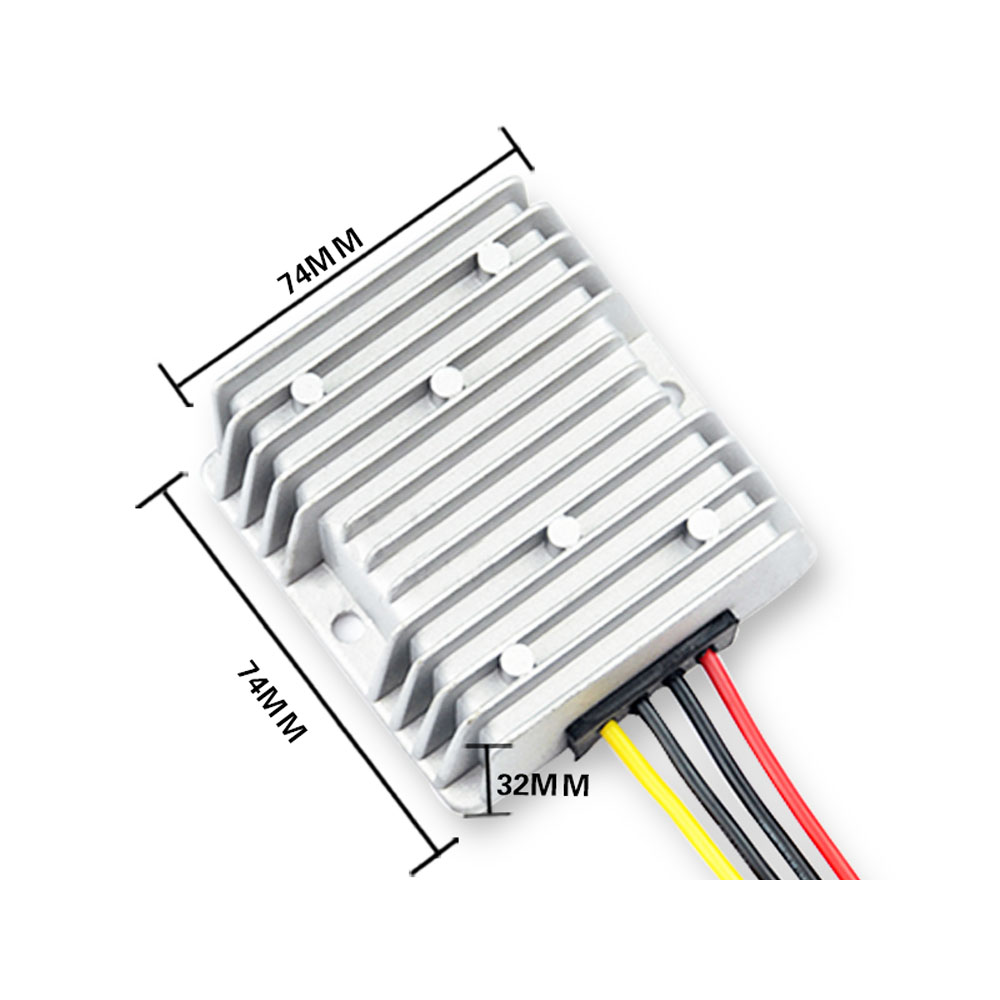

| Product Size (L x W x H) | 74*74*32mm (packing size:98*82*34cm) |
| Product Weight | 290g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM&ODM Service | Accept |
