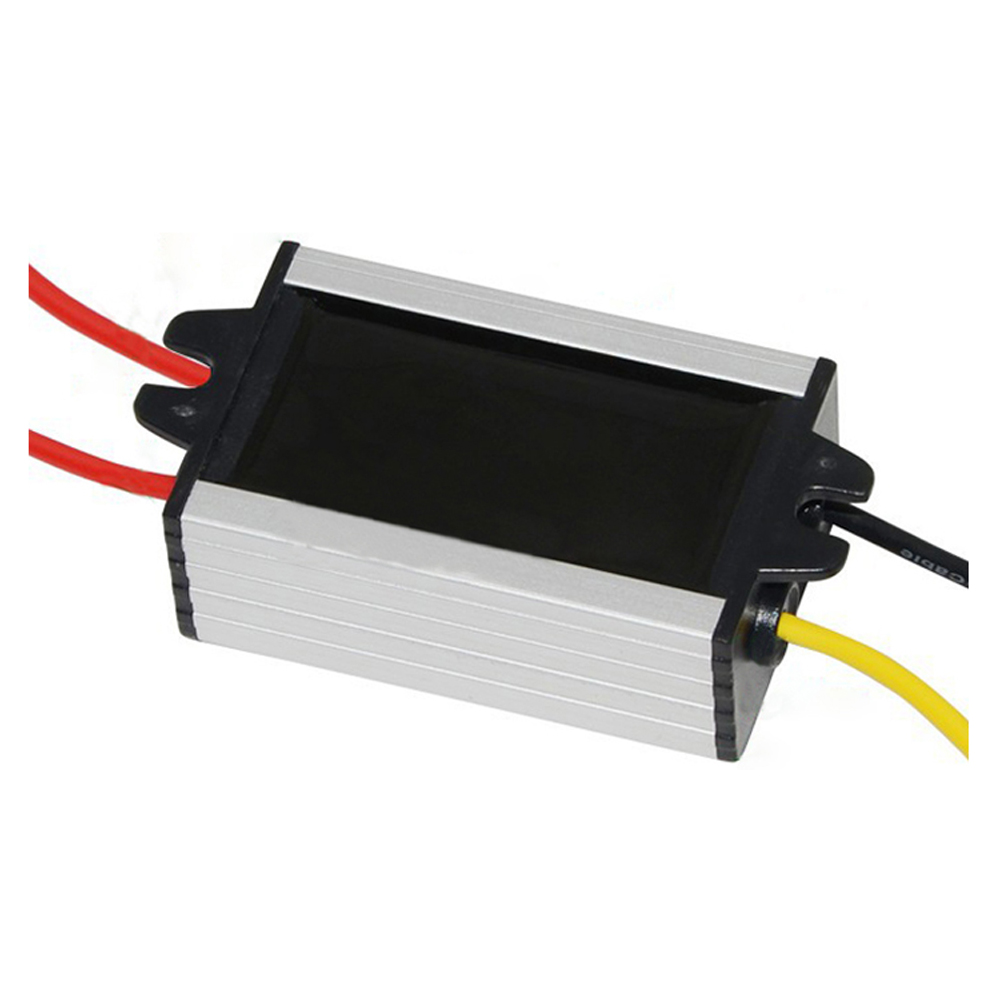

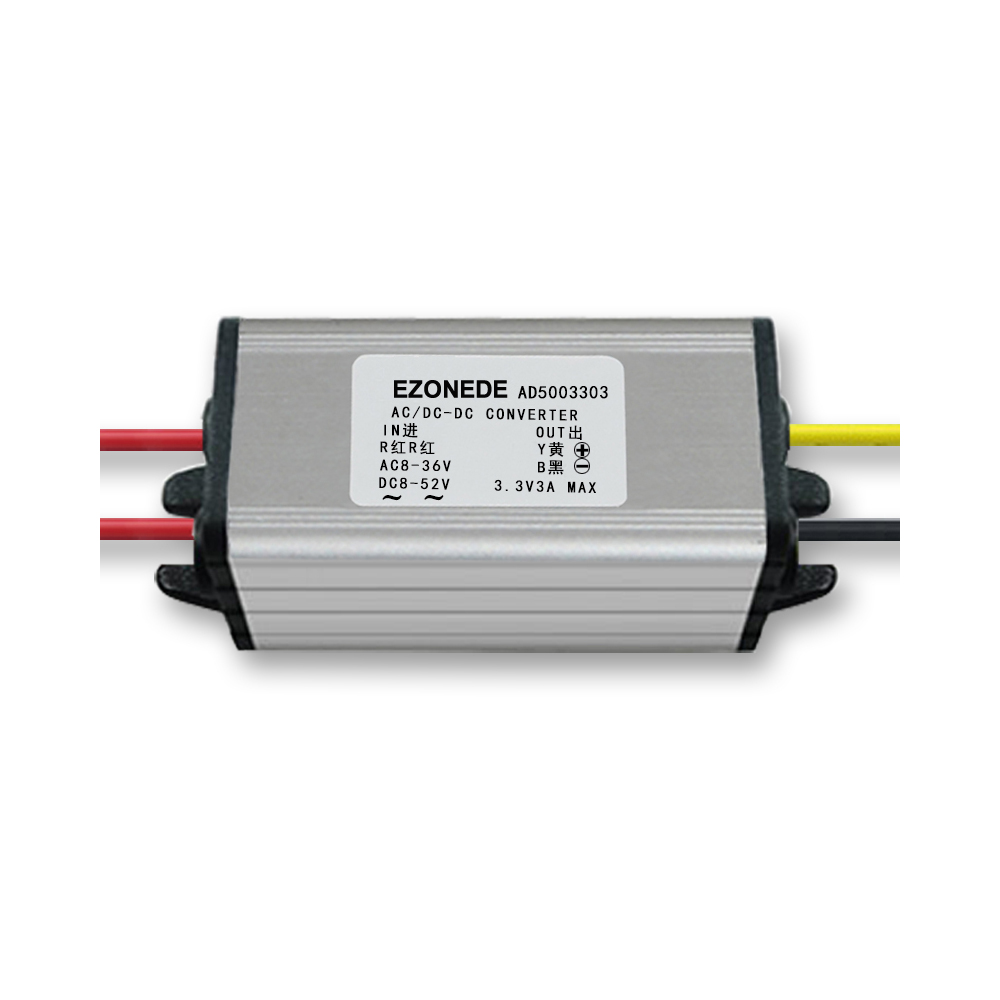

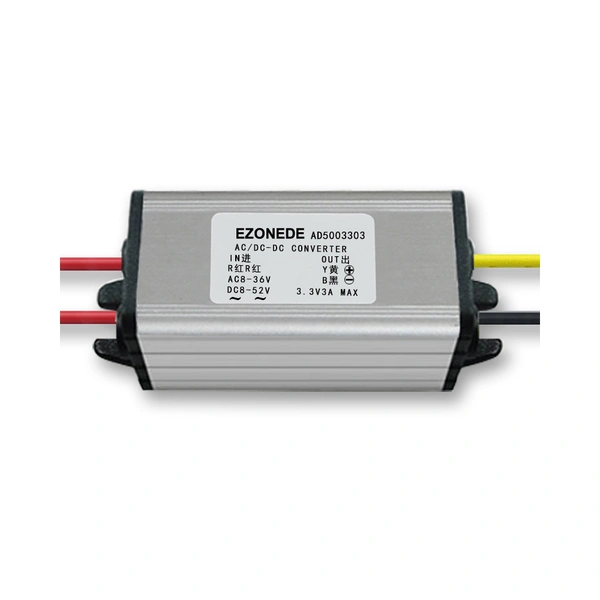

AC-DC Conveter AC 12V 24V to DC 3.3V 3A 9.9W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring

Input Voltage Range: AC 8-36V/ DC 8-52V

Output Voltage: DC 3.3V

Output Current: 3A

Output Power: 9.9W


SKU No.: ET38118353769V3.3

$

Description

AC-DC Conveter AC 12V 24V to DC 3.3V 3A 9.9W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring



Product nameAC-DC Converter 12V 24V to 3.3V
Input rated voltage12V 24V
Input voltage rangeAC 8-36V / DC 8-52V
Output voltageDC 3.3V
Output current3A MAX
Output rated power9.9 W
Output peak power13 W
Voltage regulation< 1%
Load regulation< 2%
Efficiency≥ 85%
Working temperature-25°C ~+65°C( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation)
Module PropertiesNon-isolated buck module(buck)
RectificationSynchronous rectification
Waterproof ratingIP68
Full load temperature rise:   50°C
ProtectionOver-current, Over-temperature, Input Reverse Polarity Protection
Waterproof IP68 design, anti-shock protection
NW75g

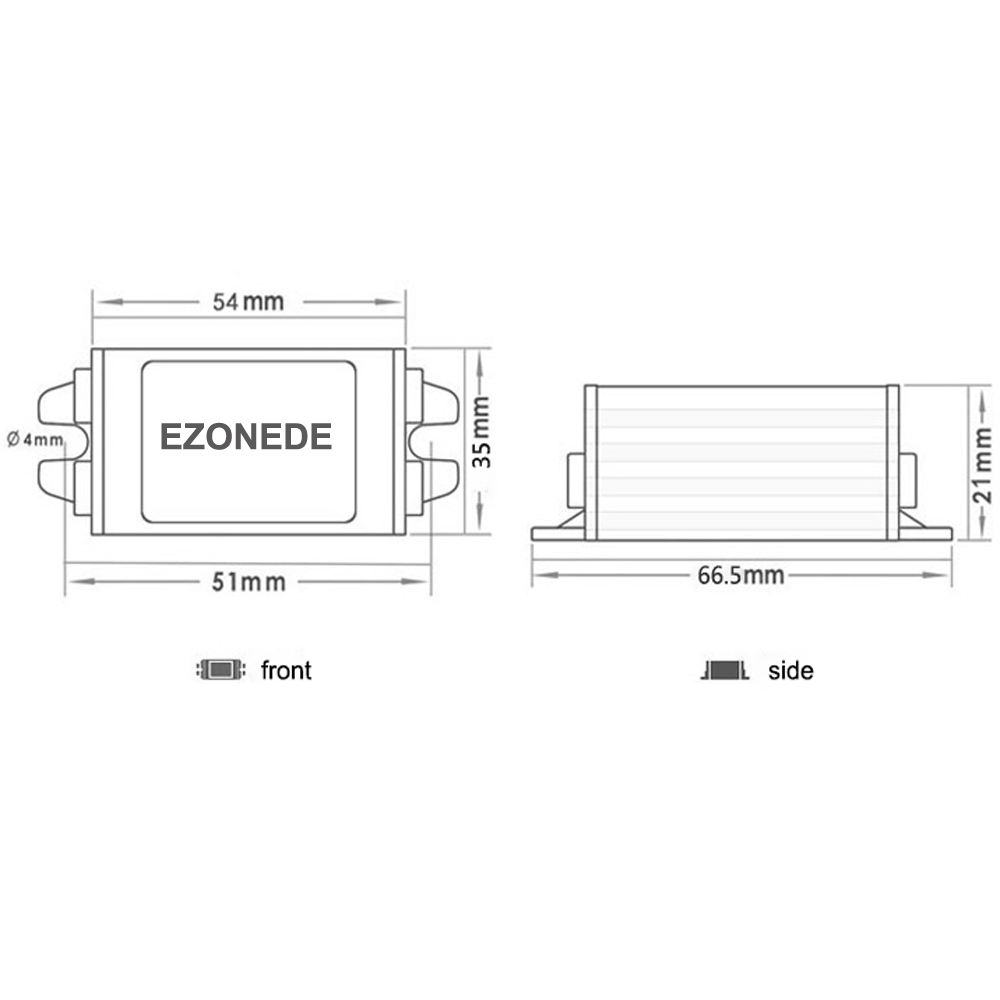

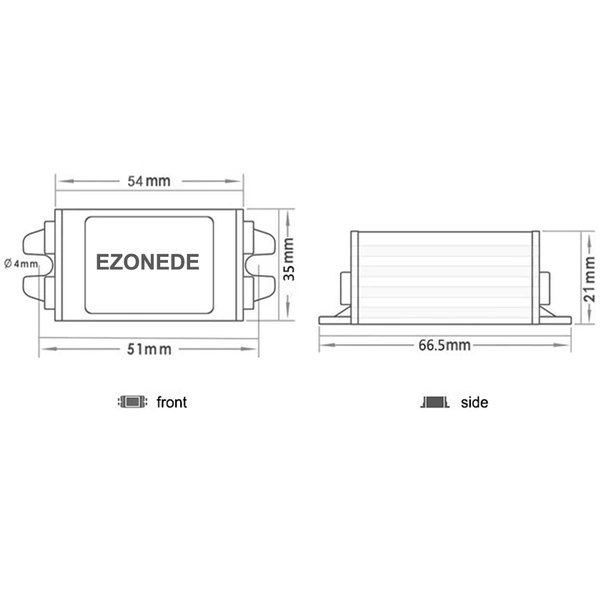

Product size54*35*21mm
Attention:
Please install according to the the label strictly,
To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough.
