AC-DC Conveter AC 12V 24V to DC 5V 10A 50W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring
| Product Name | AC 12V 24V to 5V DC converter |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | AC 12V/24V; DC 12V/24V |
| Input Voltage Range | AC10-28V / DC8-40V |
| Output Voltage | DC 5V |
| Output Current | 10A max |
| Output Power | 50W max |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 180mV |
| No-load current | <100mA |
| Working Temperature | -40℃~85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat protection | |
| Short circuit protection | |
| Application | Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment |
| Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

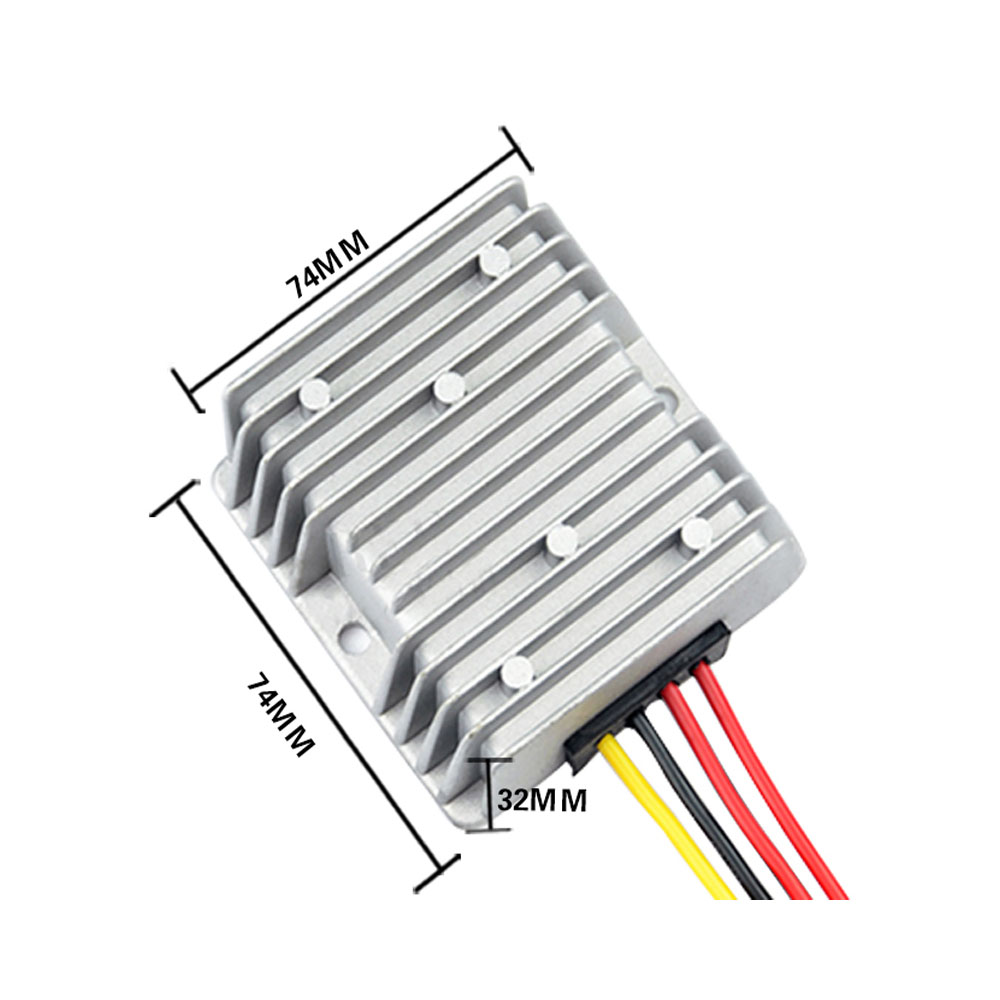

| Product Size (L x W x H) | 74*74*32mm |
| Product Weight | 290g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Accept |
