AC-DC Conveter AC 12V 24V to DC 5V 3A 15W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring
| Product Name | AC-DC Conveter AC 12V 24V to DC 5V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | AC 12V/24V; DC 12V/24V |
| Input Voltage Range | AC 7-35V / DC 8-52V |
| Output Voltage | DC 5V |
| Output Current | 3A, auto-adaption |
| Output Power | 15W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 100mV |
| No-load current | < 100mA |
| Working Temperature | -25℃~+60℃ |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat Protection | |
| Input Reverse Polarity Protection | |
| Application | GPS Navigation, Monitoring, Motors |
| DVD,LED bulb lights,LED Display,Solar Panels System | |
| Electrical appliances, industrial equipment, telecommunications and so on. | |
| Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

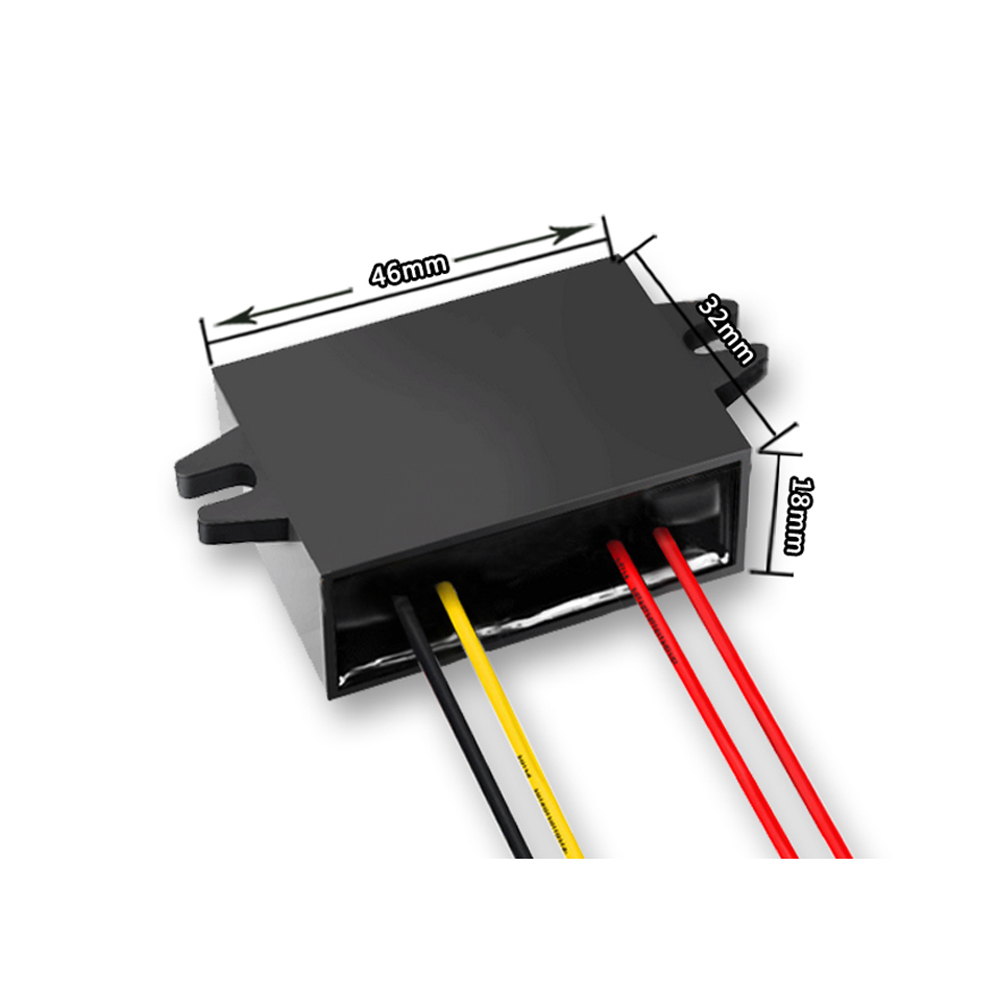

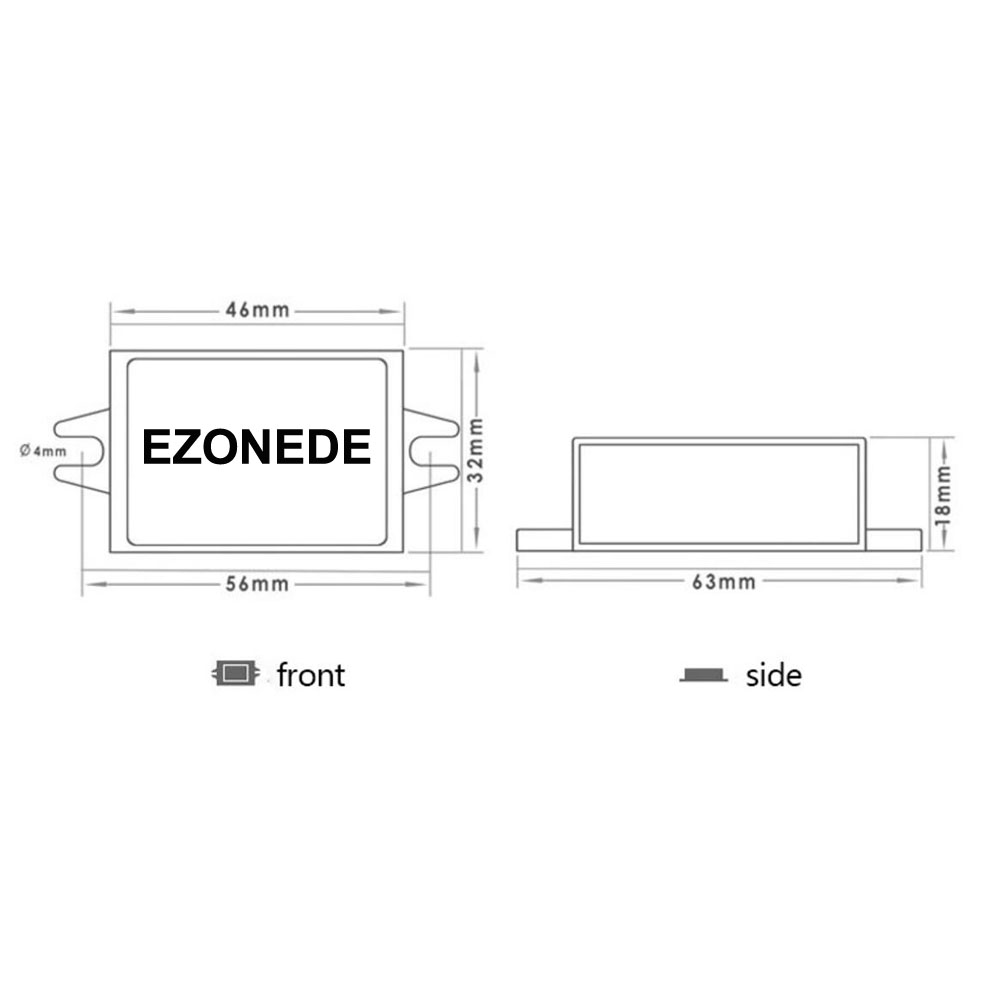

| Product Size (L x W x H) | 46*32*18mm |

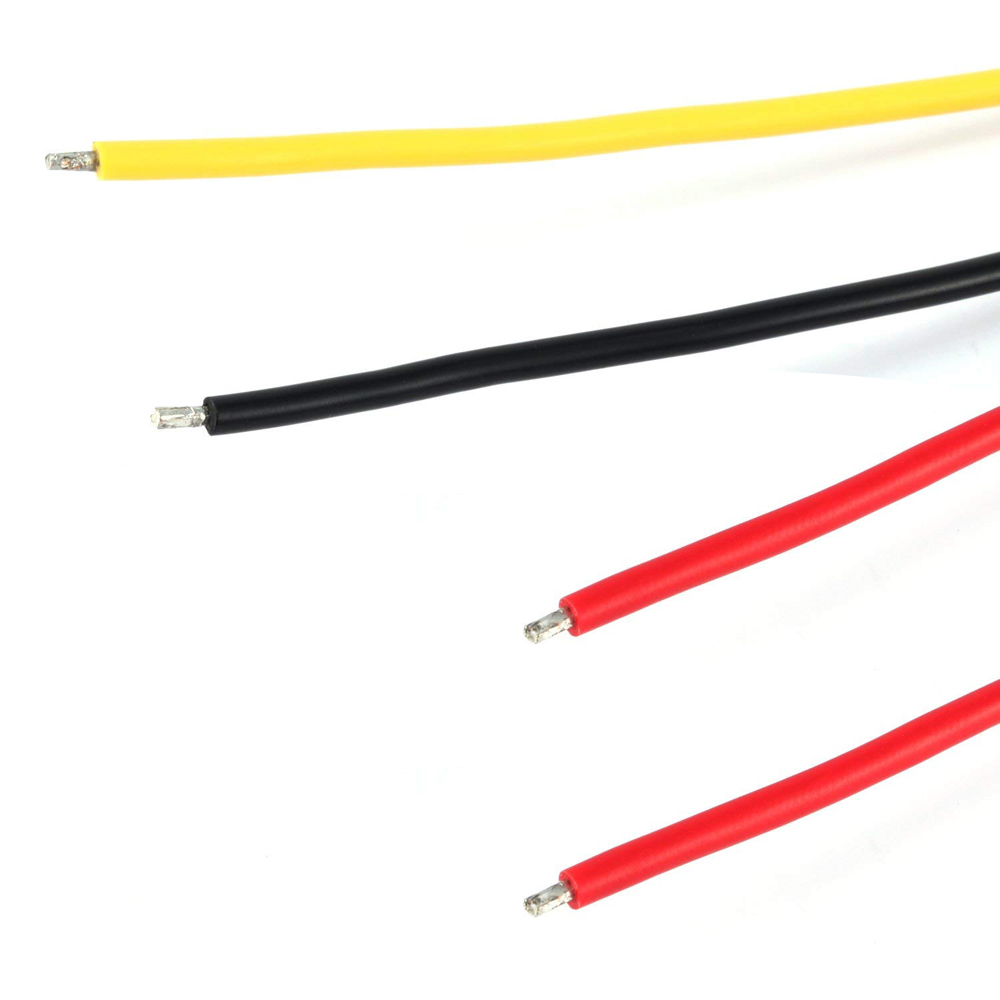

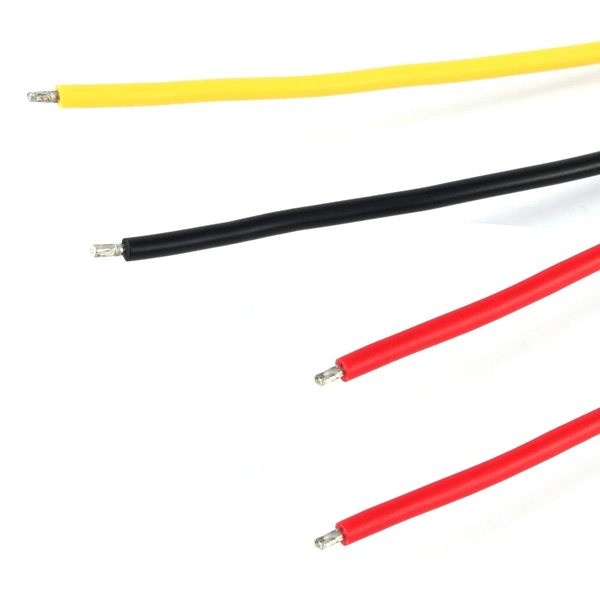

| Installation Cable Length | 13-14cm |
| Product Weight | 65g |
| Warranty | 12 months, lifetime >20,000 hours |
| Cooling Way | Free air convection |
| Customized OEM Service | Accept |
