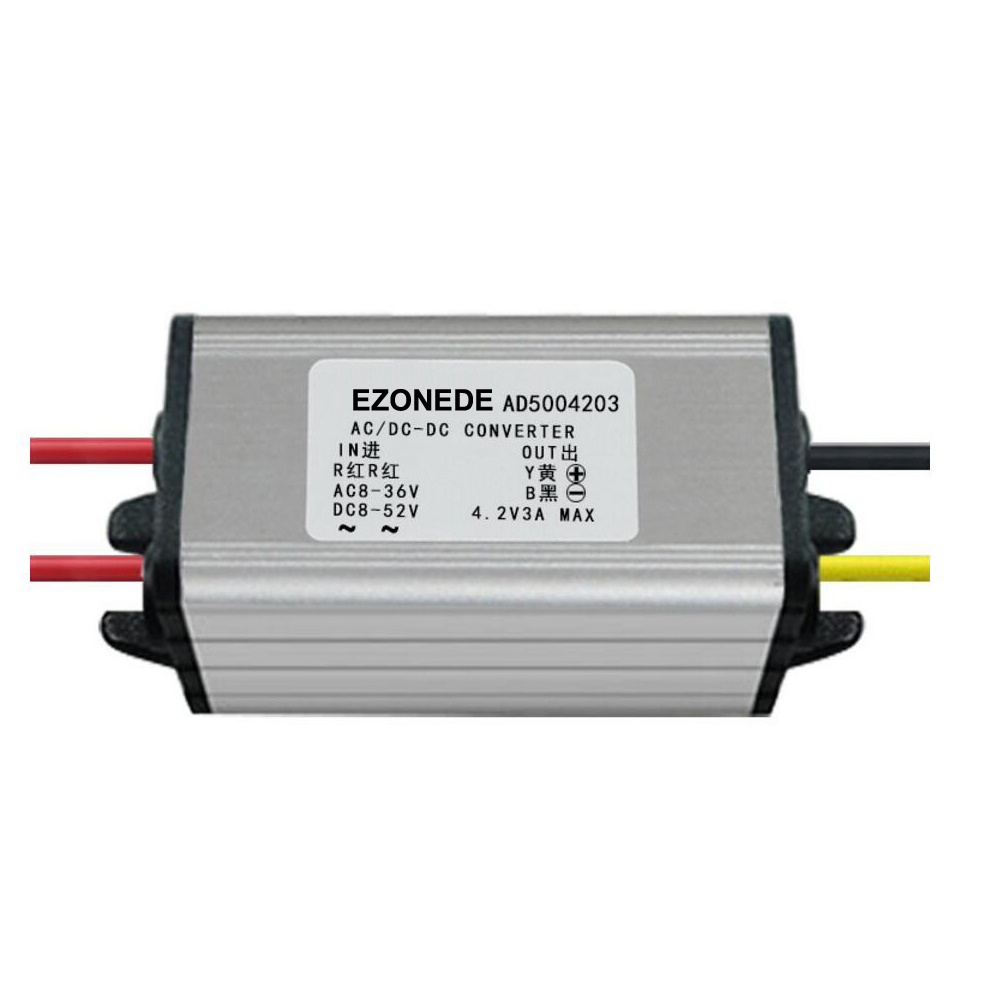

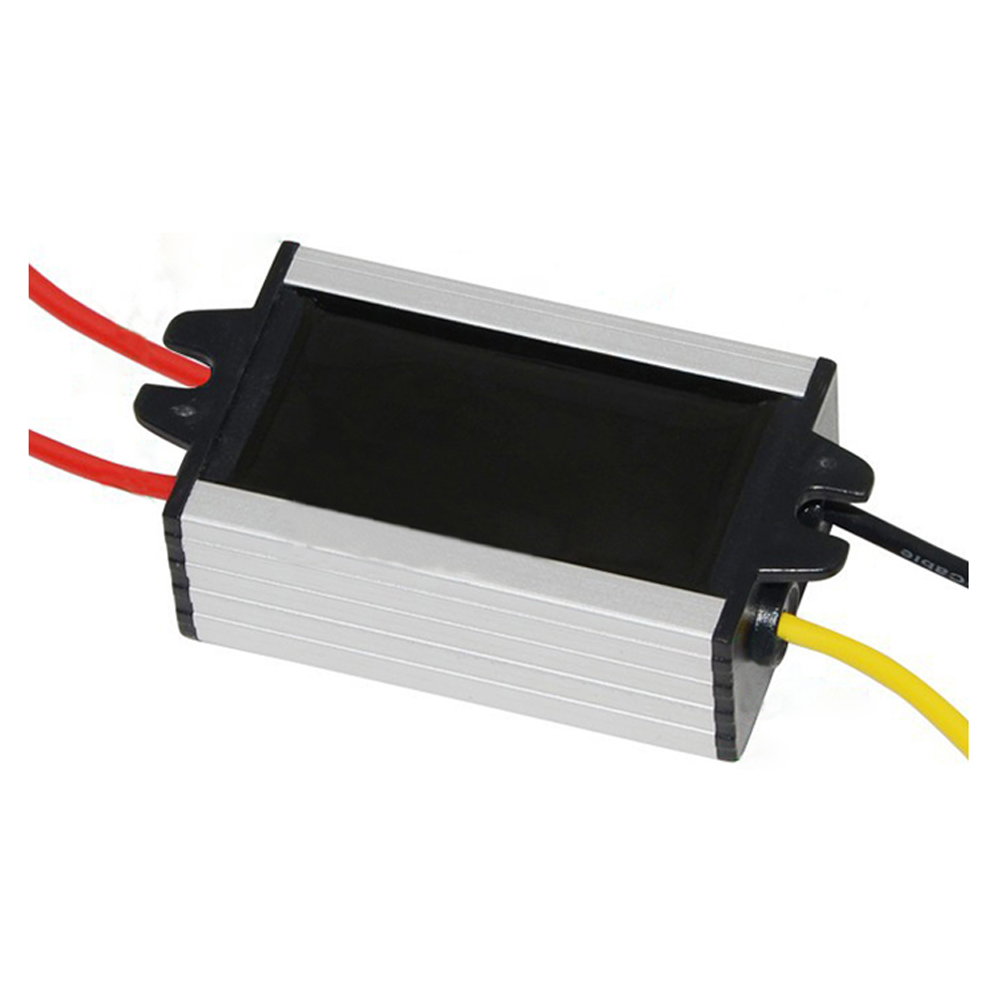

AC-DC Conveter AC 12V 24V to DC 4.2V 3A 12W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring
| Product name | AC 12V 24V to 4.2V DC Converter |
| Input rated voltage | 12V 24V |
| Input voltage range | AC 8-36V / DC 8-52V |
| Output voltage | DC 4.2V |
| Output current | 3A MAX |
| Output rated power | 12.6W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Efficiency | ≥ 85% |
| Working temperature | -25°C ~+65°C( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation) |
| Module Properties | Non-isolated buck module(buck) |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°C |
| Protection | Over-current, Over-temperature, Input Reverse Polarity Protection |
| Waterproof IP68 design, anti-shock protection | |
| NW | 75g |

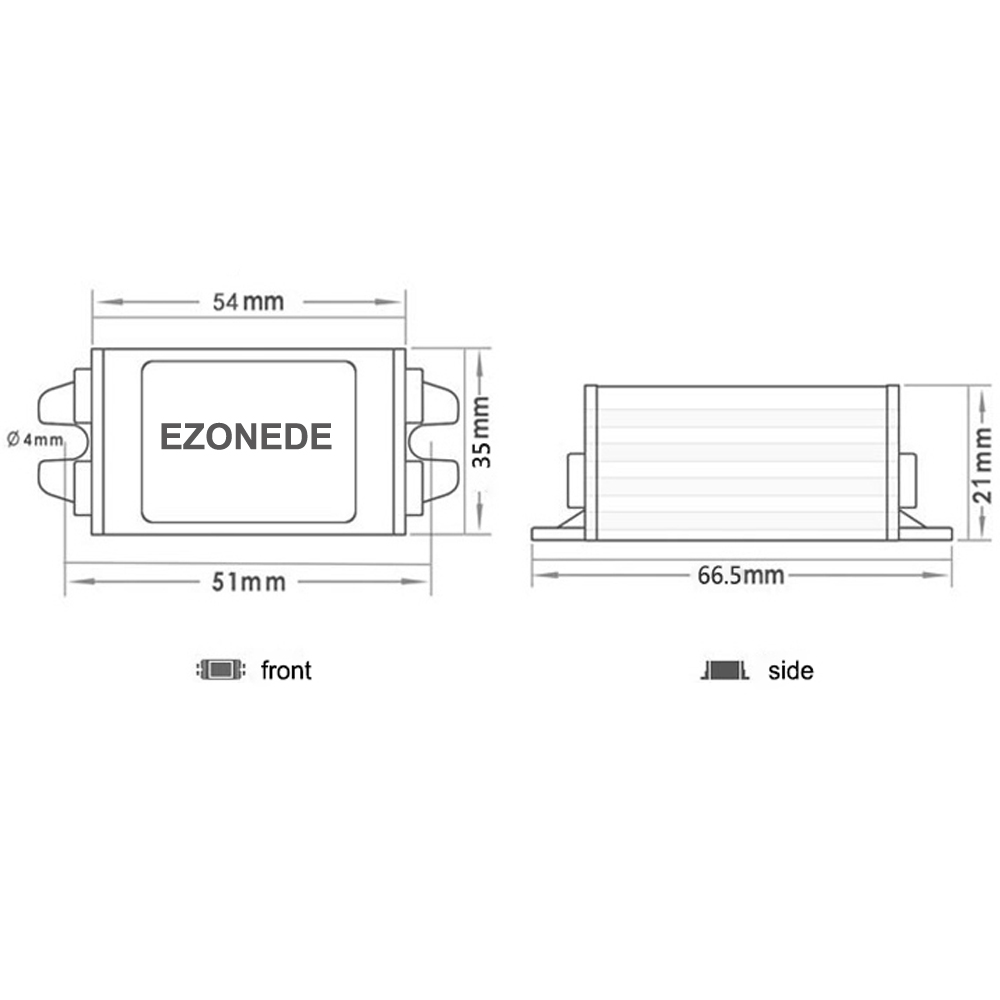

| Product size | 54*35*21mm |
| Attention: | |
| Please install according to the the label strictly, | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
