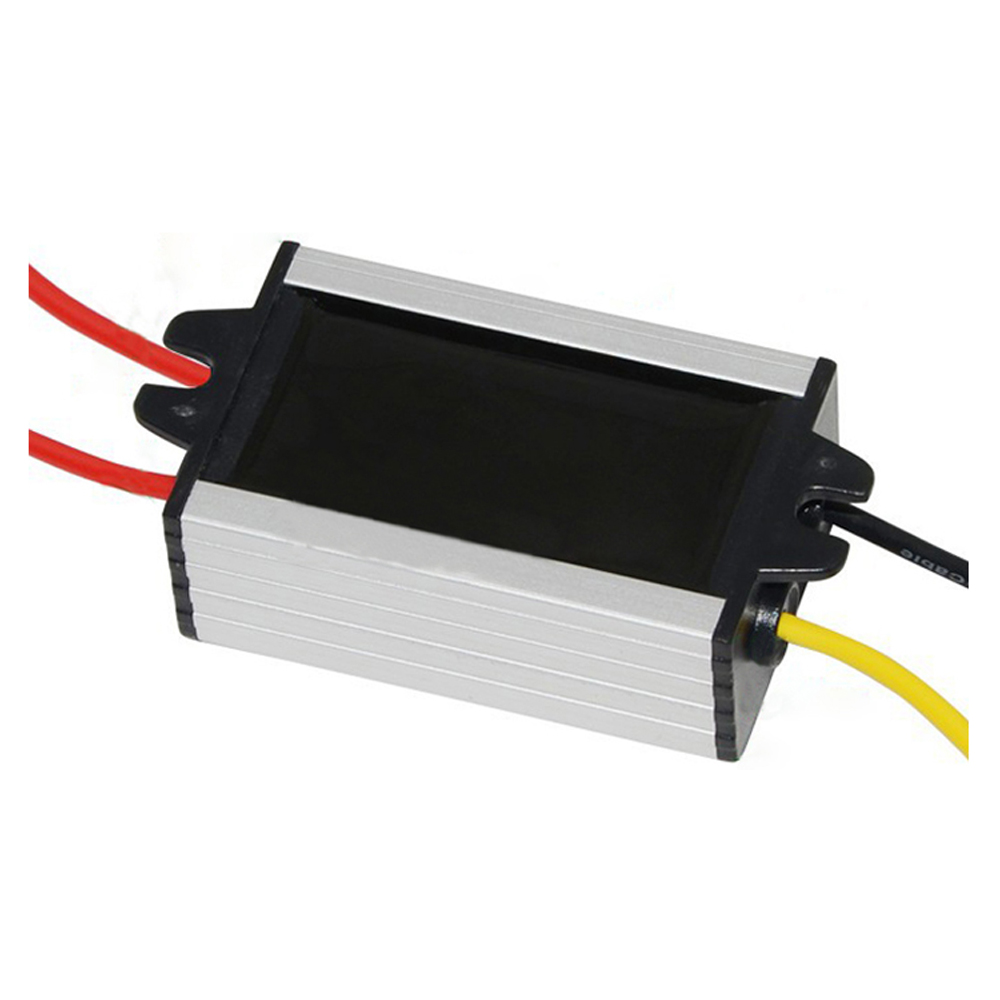

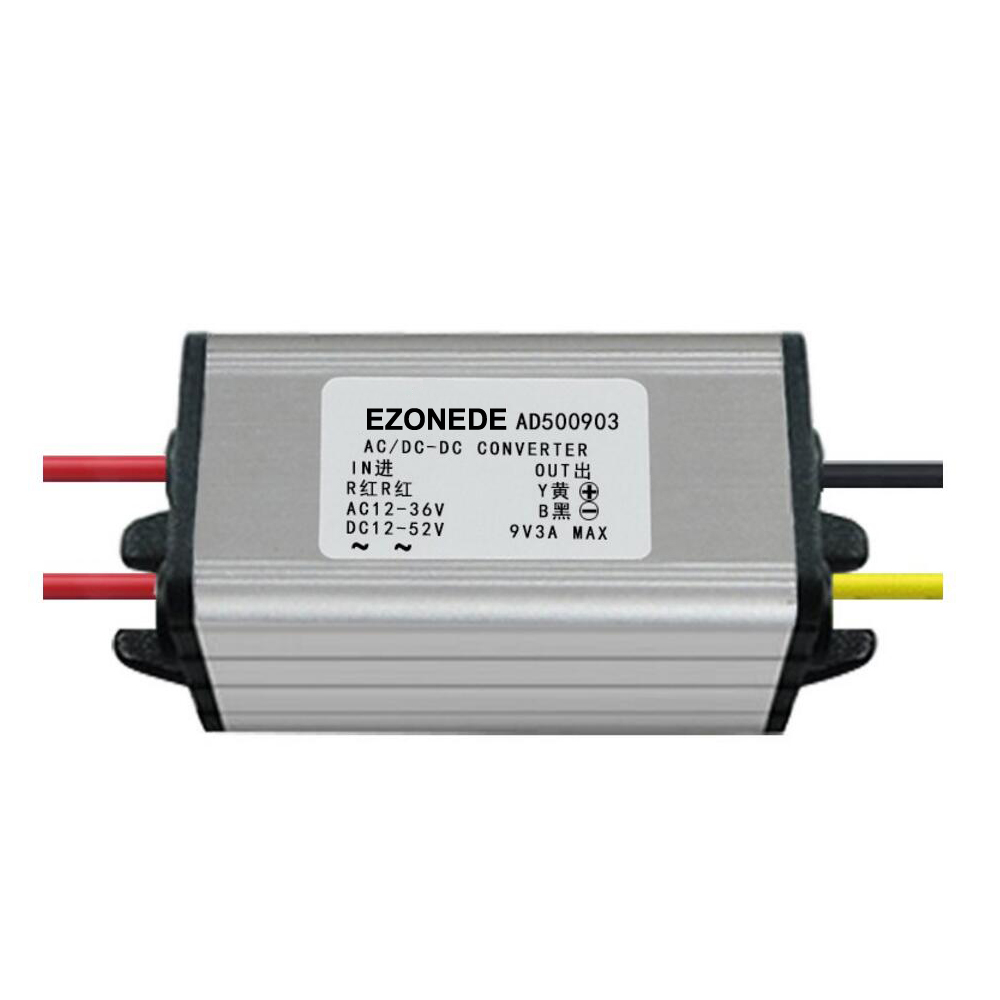

AC-DC Conveter AC 12V 24V to DC 9V 3A 27W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring

Input Voltage Range: AC 12-36V / DC 8-52V

Output Voltage: DC 9V

Output Current: 3A

Output Power: 27W


SKU No.: ET38118353769V9

$

Description

AC-DC Conveter AC 12V 24V to DC 9V 3A 27W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring


Product nameAC-DC Conveter AC 12V 24V to DC 9V
Input rated voltage12V 24V
Input voltage rangeAC 12-36V / DC 8-52V
Output voltageDC 9V
Output current3A MAX
Output rated power27W
Output peak power33W
Voltage regulation< 1%
Load regulation< 2%
Efficiency≥ 85%
Working temperature-25°C ~+65°C( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation)
Module PropertiesNon-isolated buck module(buck)
RectificationSynchronous rectification
Waterproof ratingIP68
Full load temperature rise:   50°C
ProtectionOver-current, Over-temperature, Input Reverse Polarity Protection
Waterproof IP68 design, anti-shock protection
NW75g

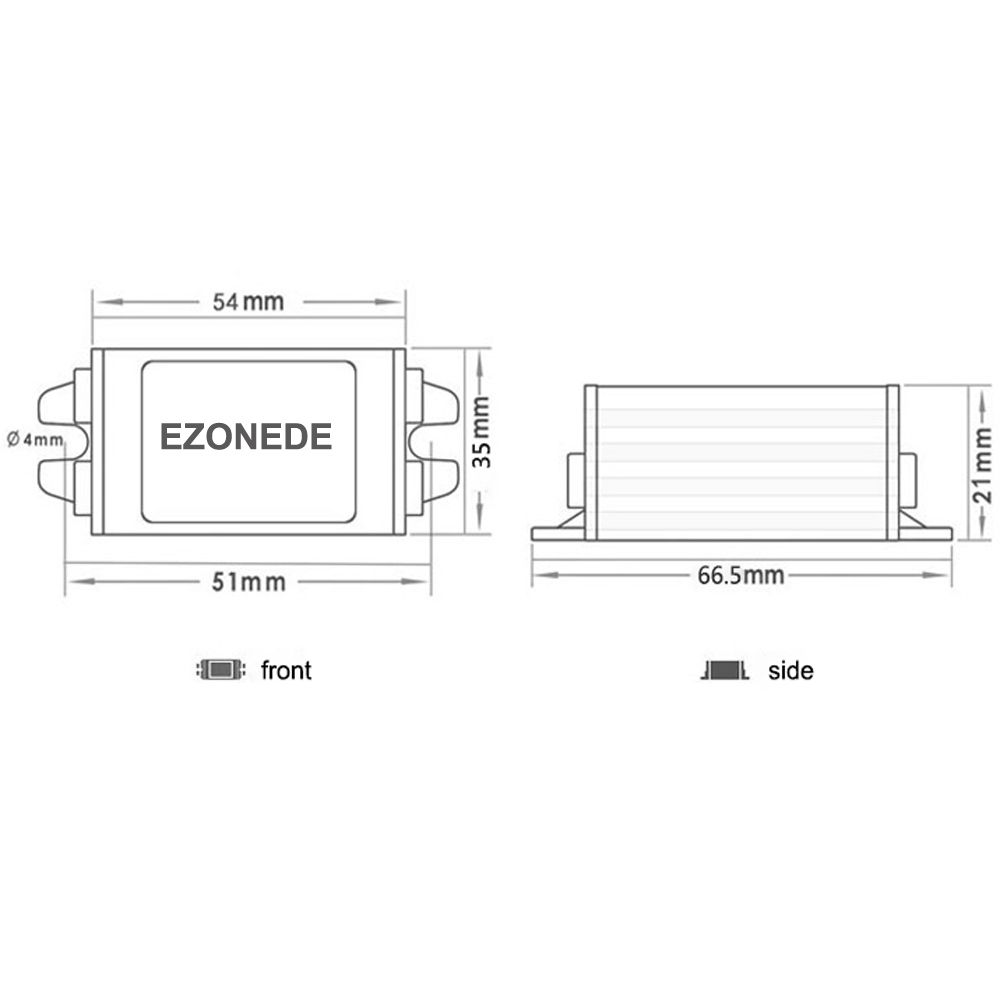

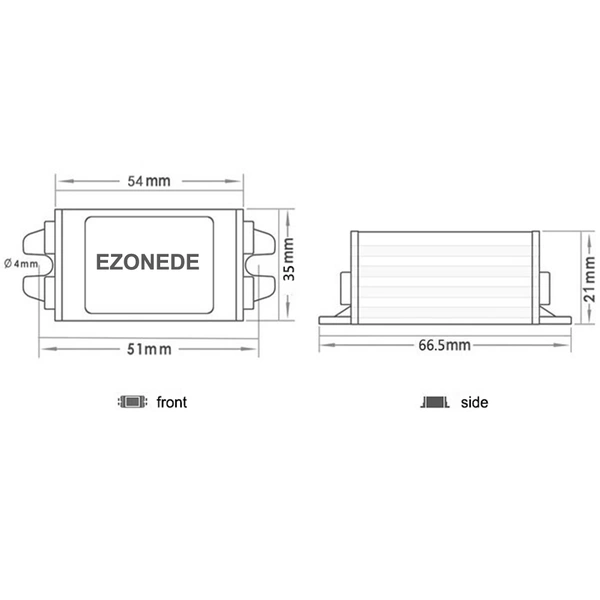

Product size54*35*21mm
Attention:
Please install according to the the label strictly,
To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough.
