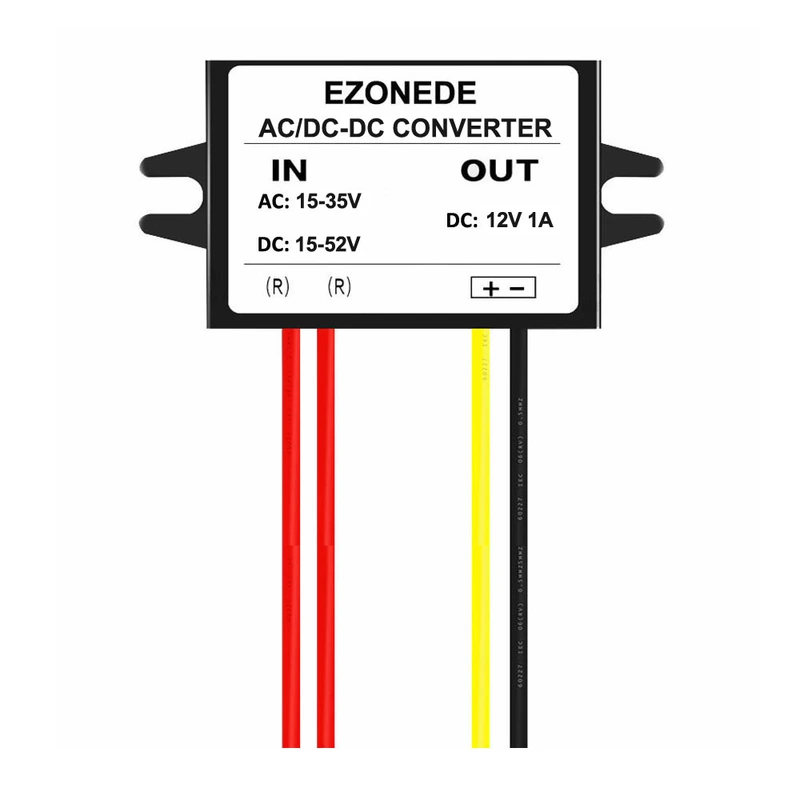

AC-DC Conveter AC 24V to DC 12V 1A 12W AC to DC Converter Step Down Power Supply Transformer Module Voltage Regulator Waterproof for DVR CCTV Security Camera
| Product Name | AC-DC Conveter AC 24V to DC 12V |
| Brand | EZONEDE |
| Model No. | AD120010B5 |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | AC24V / DC24V |
| Input Voltage Range | AC15-35V / DC17-52V |
| Output Voltage | DC 12V |
| Output Current | 1A |
| Output Power | 12W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -25℃~+60℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Overcurrent protection |
| over heat protection | |
| Input Reverse Polarity Protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | ABS Plastic |

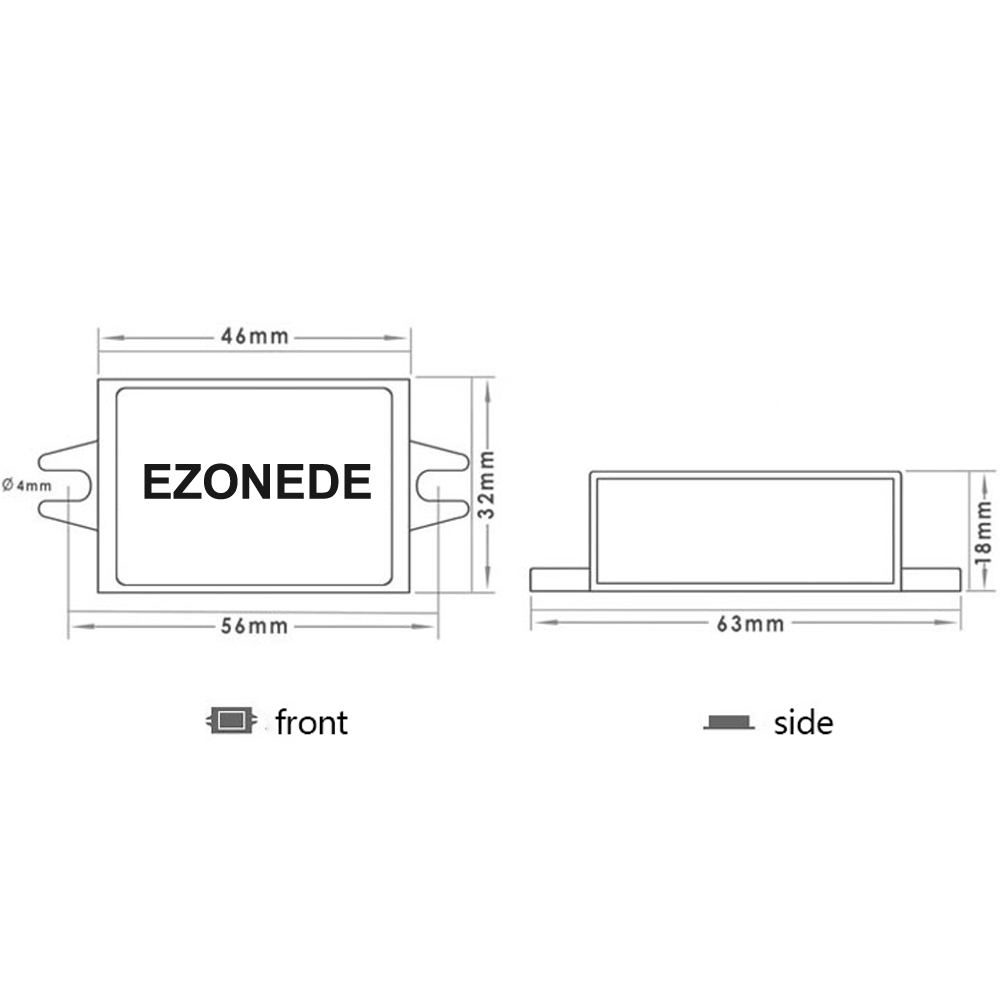

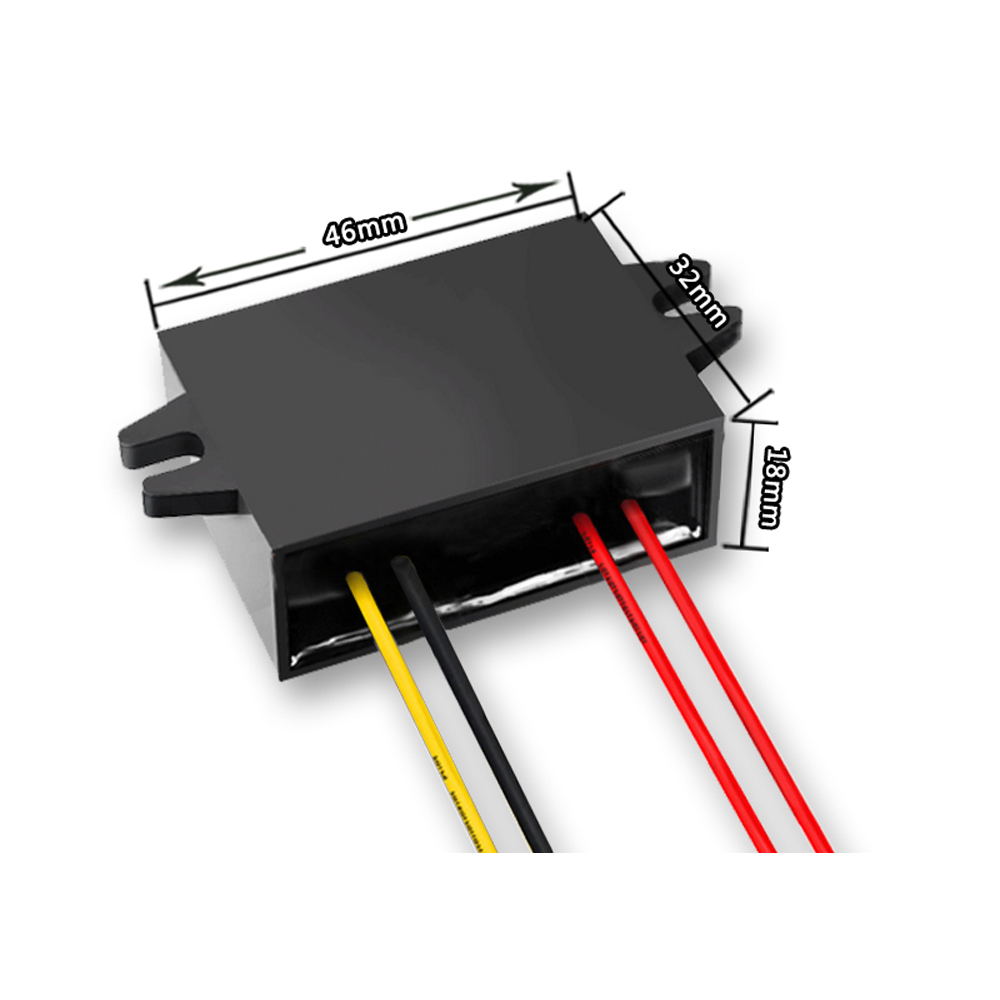

| Product Size (L x W x H) | 46*32*18mm |
| Product Weight | 65g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
