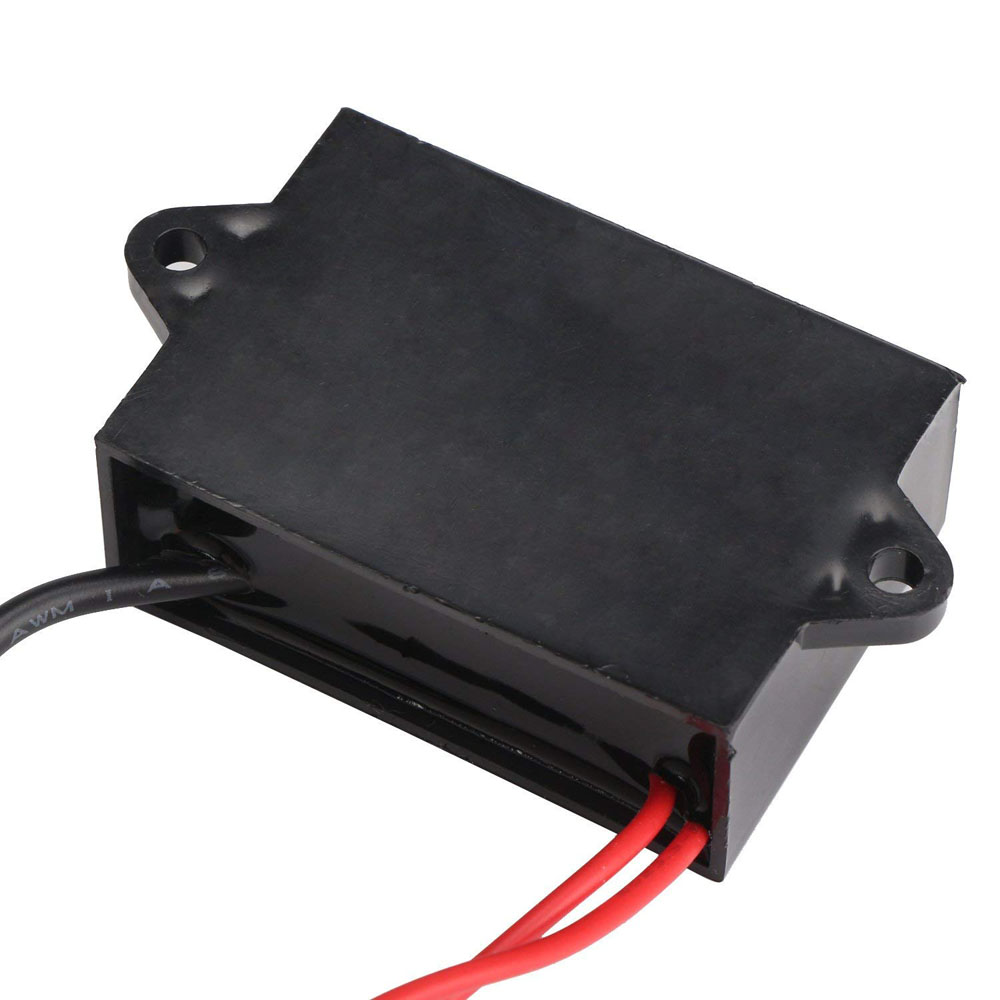

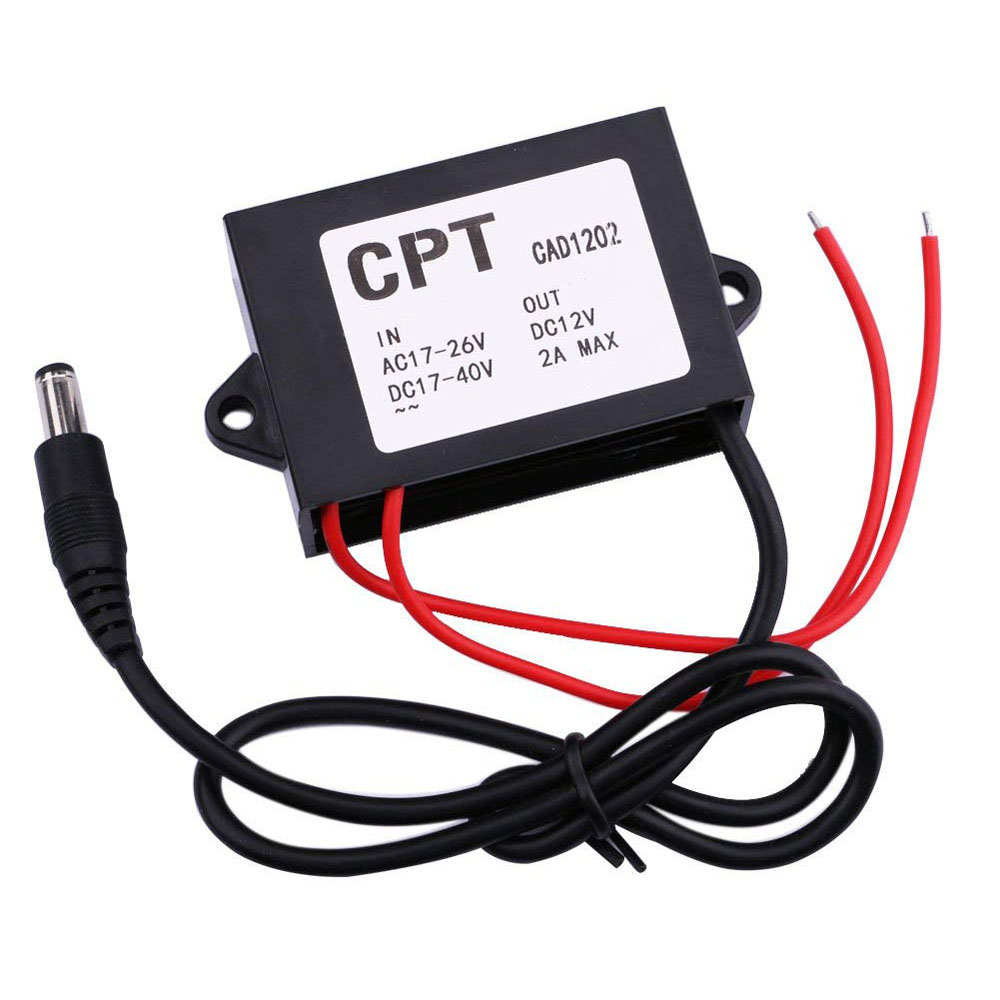

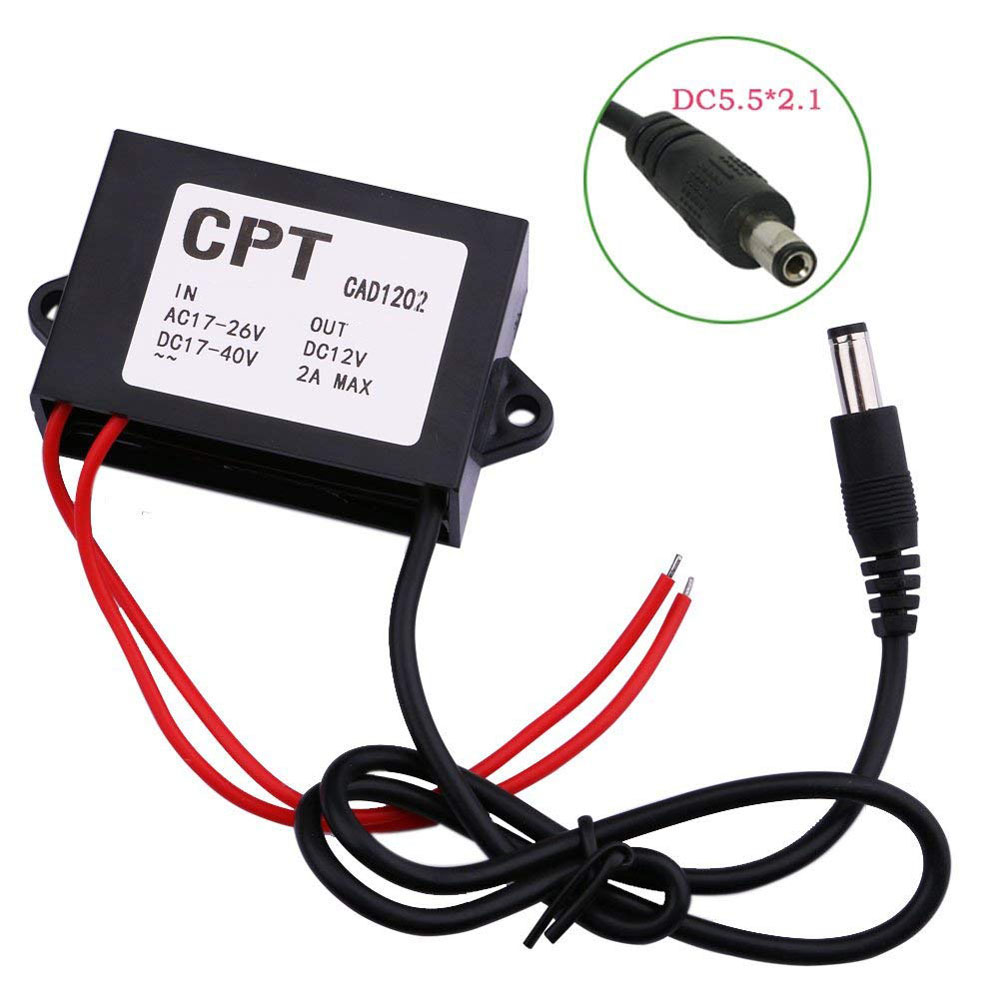

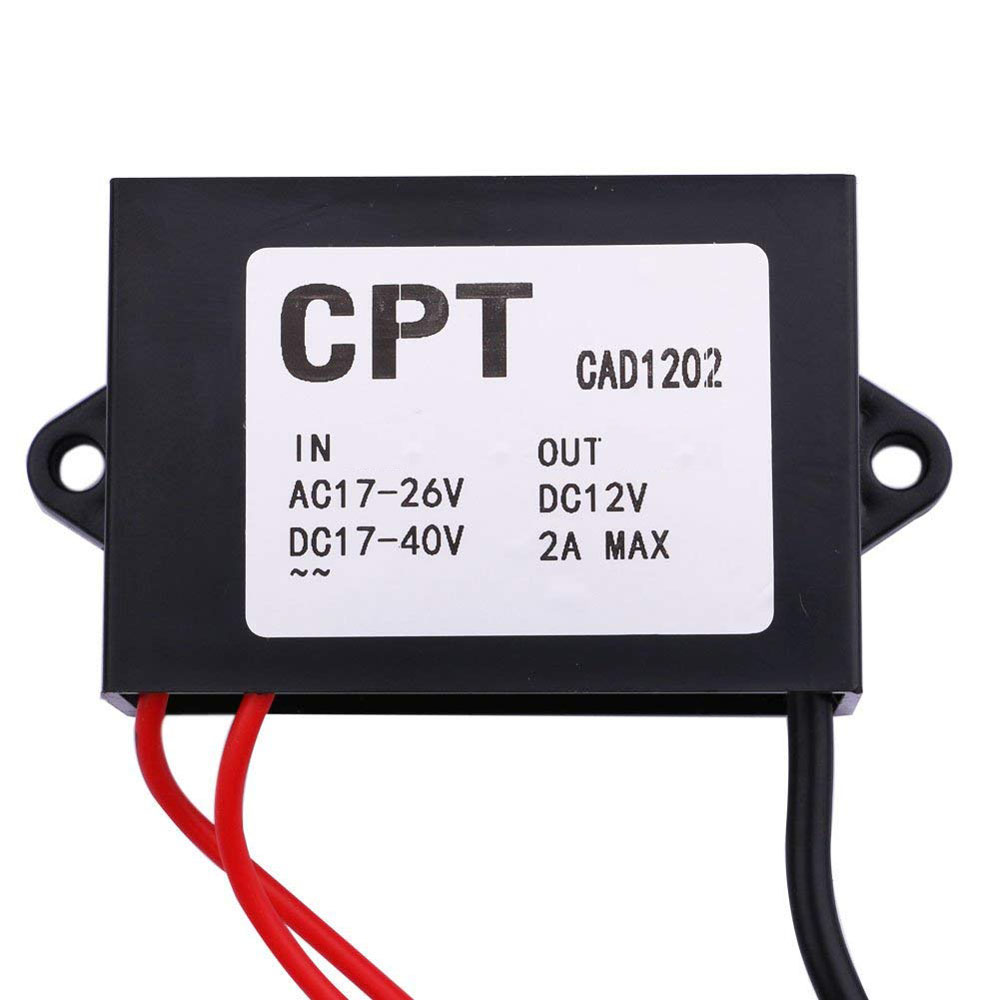

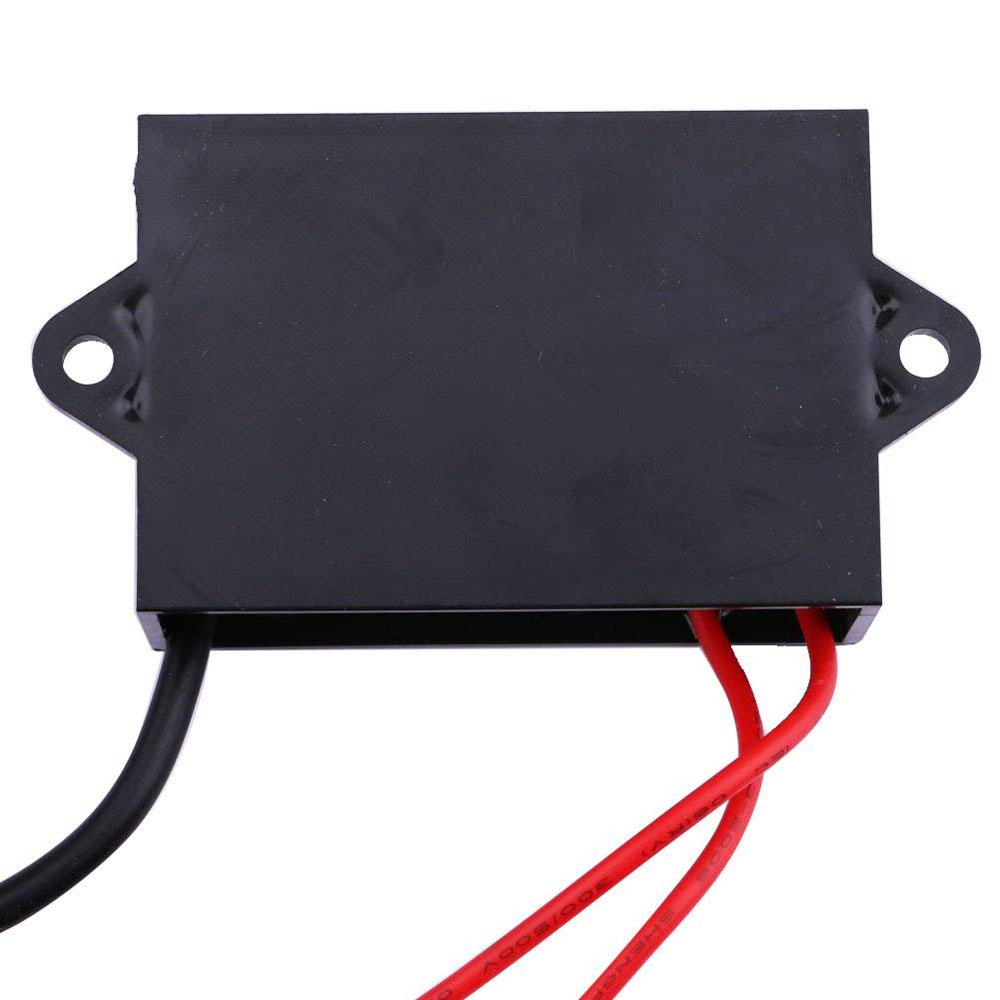

AC-DC Conveter AC 24V to DC 12V 2A 24W AC DC Power Converter Step Down Buck Transformer Module Waterproof for CCTV Camera Monitoring
| Product Name | AC-DC Conveter AC 24V to DC 12V |
| Brand | EZONEDE |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | AC 24V |
| Input Voltage Range | AC17-26V / DC17-40V |
| Output Voltage | DC 12V |
| Output Current | 2A max |
| Output Power | 24W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -25℃~+80℃( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Overcurrent protection |
| Short-circuit protection | |
| Over load protection | |
| Waterproof IP68 design, anti-shock protection | |
| Application | CCD Camera, CCTV System, Gateway, other 12V electronic equipment ect. |
| Case Material | ABS Plastic |

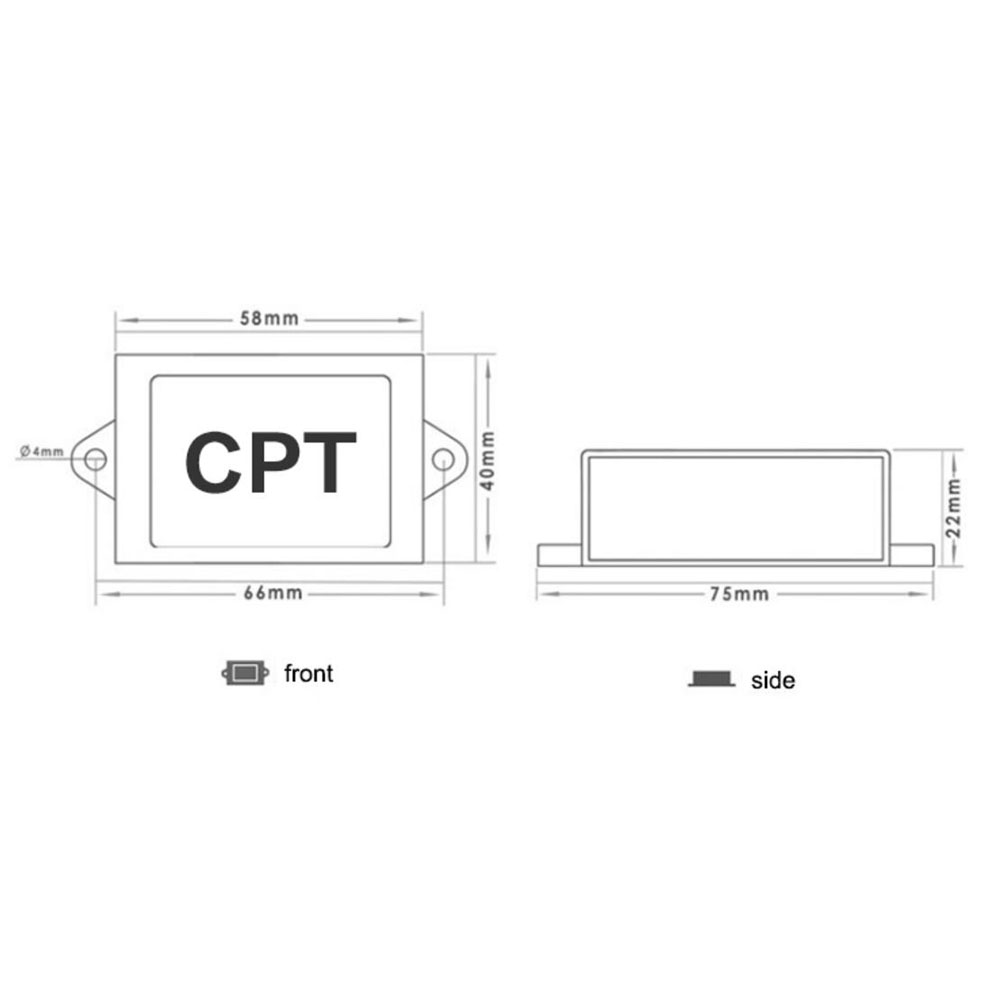

| Product Size (L x W x H) | 58*40*22mm |
| Product Weight | 100g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM&ODM Service | Acceptable |
