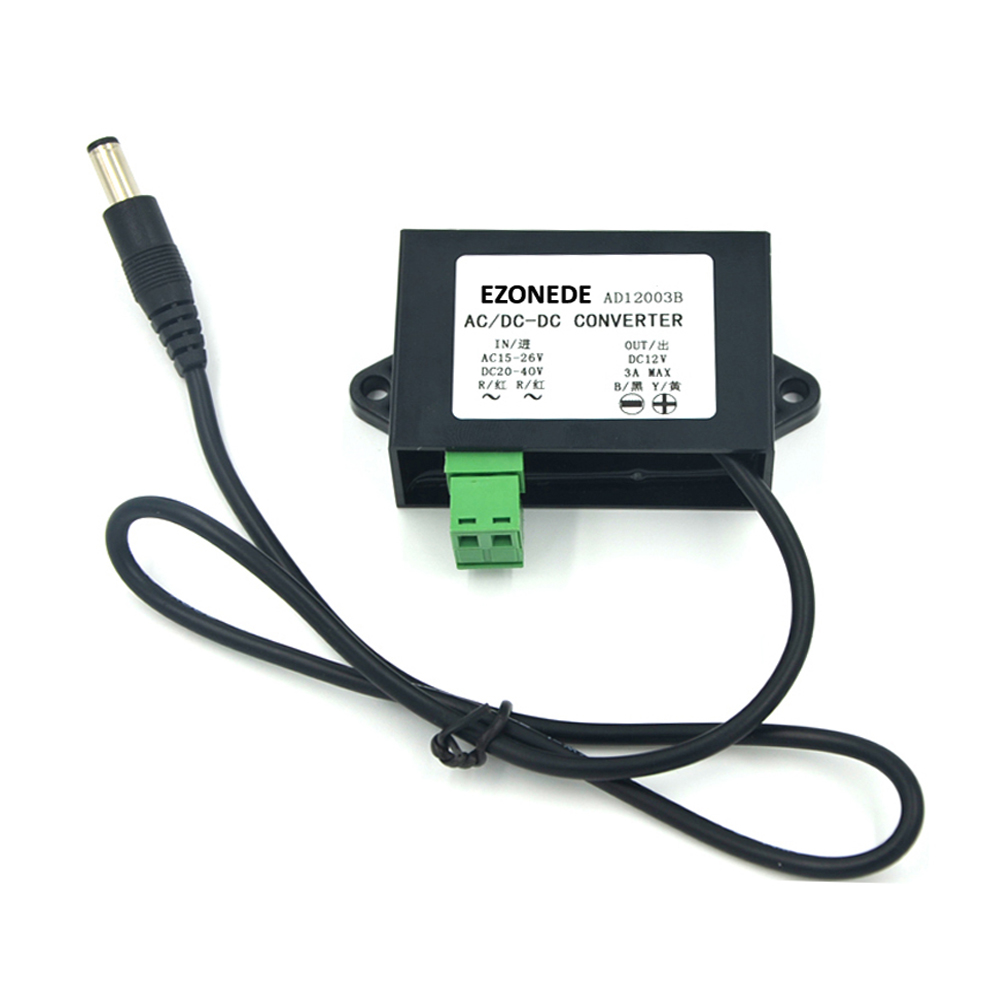

AC-DC Conveter AC 24V to DC 12V 3A 36W AC to DC Converter Step Down Power Supply Transformer Module Voltage Regulator Waterproof with 2.1 x 5.5mm DC Connector for DVR CCTV Security Camera
| Product Name | AC-DC Conveter AC 24V to DC 12V |
| Brand | EZONEDE |
| Model No. | AD12003B |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | AC/DC 24V |
| Input Voltage Range | AC 15-26V / DC 20-40V |
| Output Voltage | DC 12V |
| Output Current | 3A, auto-adaption |
| Output Power | 36W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 100mV |
| No-load current | < 100mA |
| Working Temperature | -20℃~+60℃( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Over-load Protection | |
| Short-circuit protection | |
| Application | GPS Navigation, Monitoring, Motors |
| DVD,LED bulb lights,LED Display,Solar Panels System | |
| Electrical appliances, industrial equipment, telecommunications and so on. | |
| Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

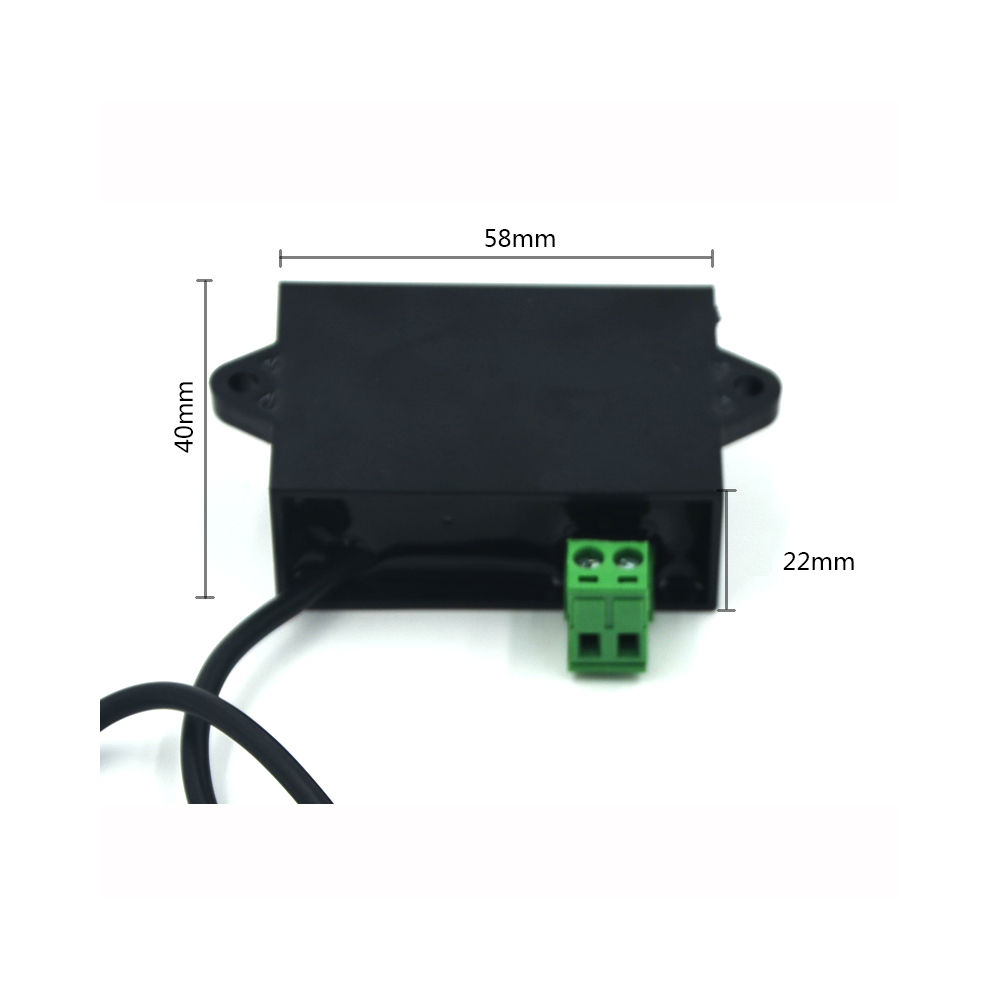

| Product Size (L x W x H) | 58*40*22mm |
| Installation Cable Length | Input 13-14cm |
| Product Weight | 75g |
| Warranty | 12 months, lifetime >20,000 hours |
| Cooling Way | Free air convection |
| Customized OEM Service | Accept |
