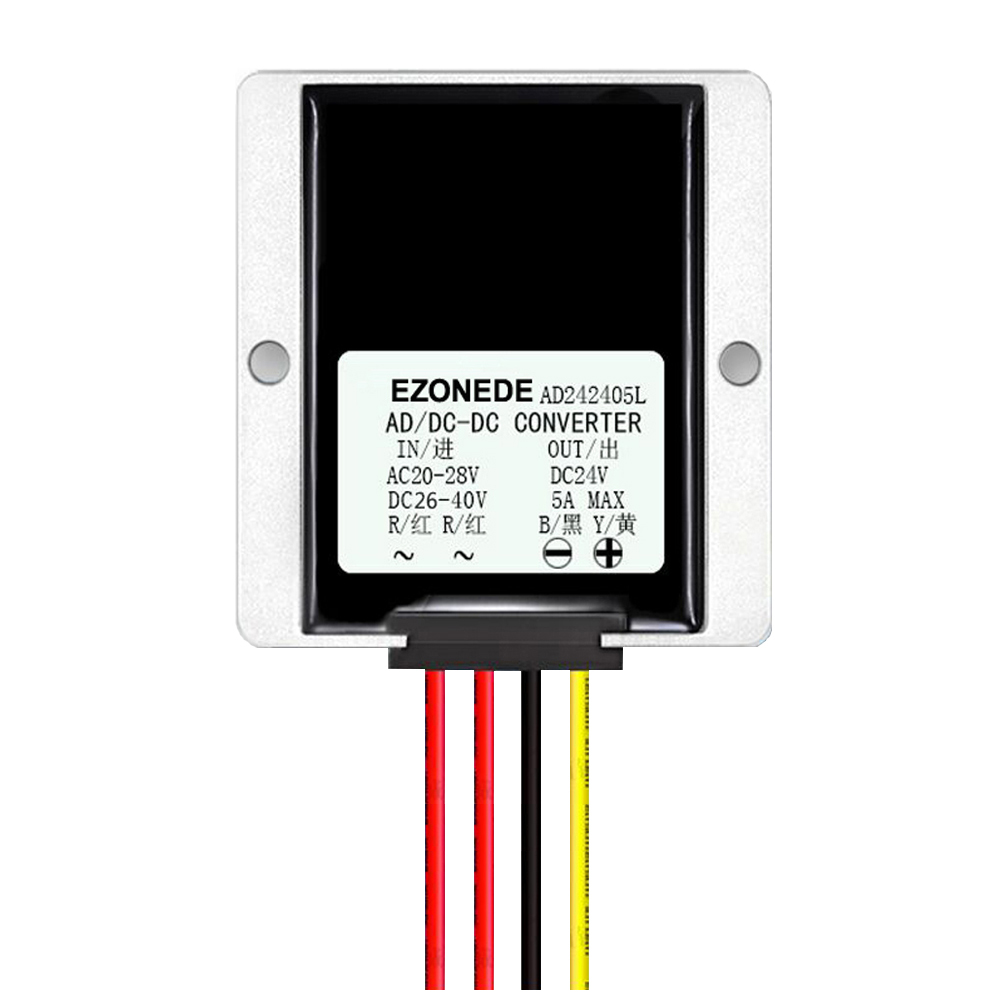

AC-DC Conveter AC 24V to DC 24V 5A 120W AC to DC Converter Step Down Power Supply Transformer Module Voltage Regulator Waterproof for DVR CCTV Security Camera
| Product Name | AC-DC Conveter AC 24V to DC 24V |
| Brand | EZONEDE |
| Model No. | AC24-DC24-120W |
| Module Properties | Non-isolated module |
| Rectification | Synchronous rectification |
| Input Voltage | AC 24V |
| Input Voltage Range | AC 22-28V / DC 26-40V |
| Output Voltage | DC 24V |
| Output Current | 5A |
| Output Power | 120W |
| Conversion Efficiency | 93% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -40℃~+80℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP68 |
| Protection | Over-current protection |
| Overheat protection | |
| Output Short circuit protection | |
| Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
| GPS Navigation, Monitoring, Air conditioning | |
| LED car display, DVD, LED bulb lights | |
| Wind Power System, Solar Panel Power System | |
| Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
| Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |

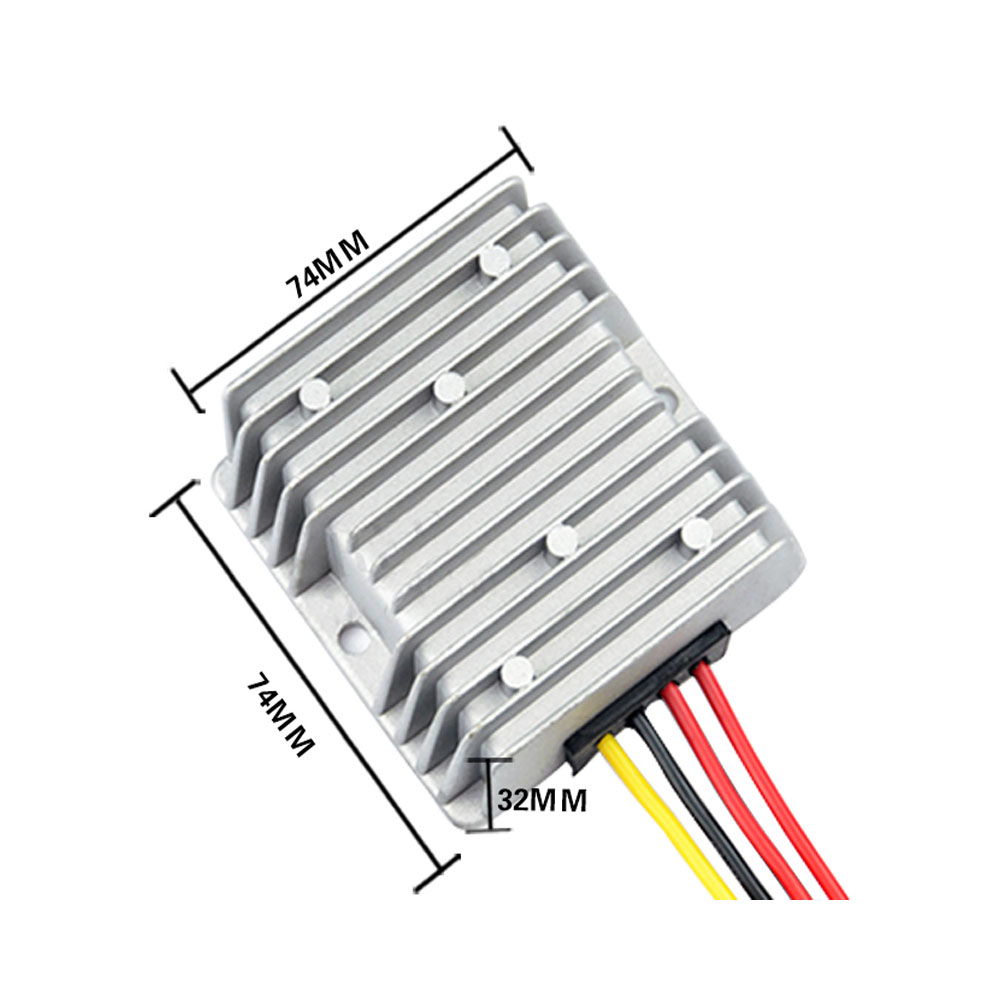

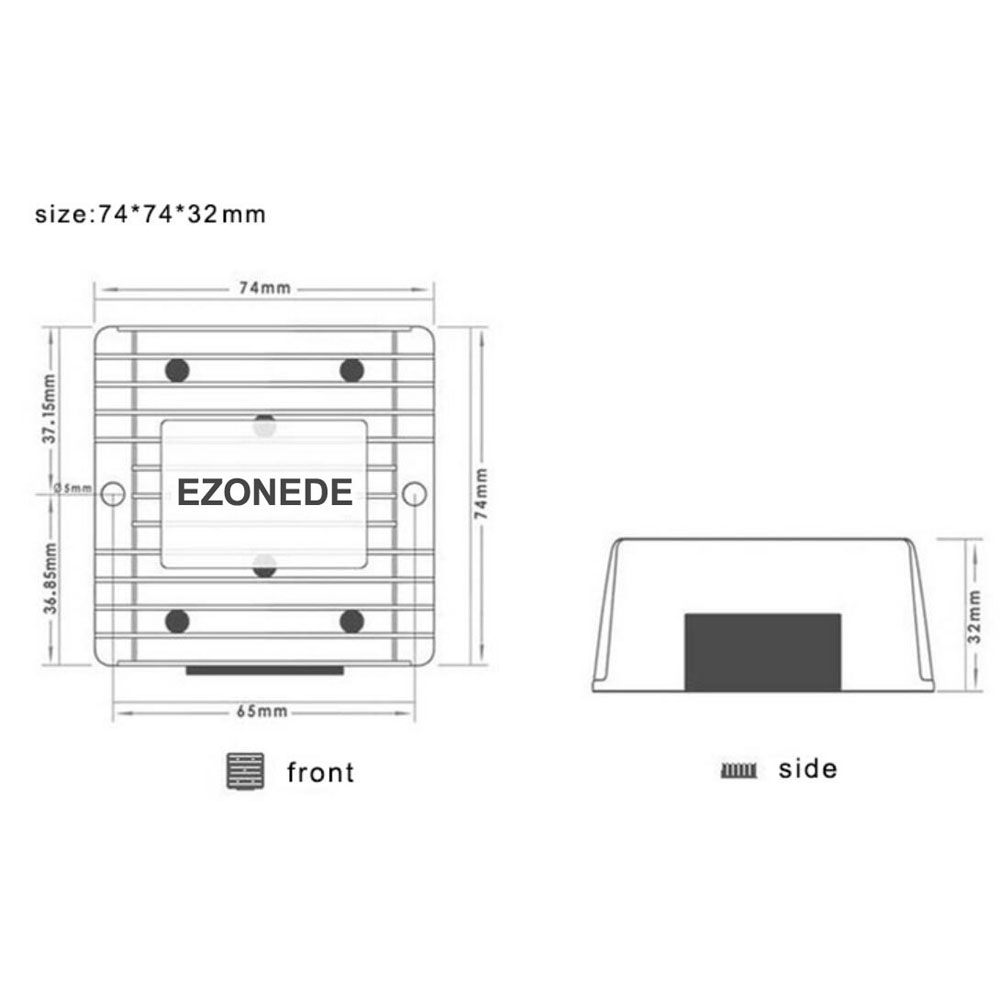

| Product Size (L x W x H) | 74*74*32mm |
| Product Weight | 290g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM&ODM Service | Accept |
