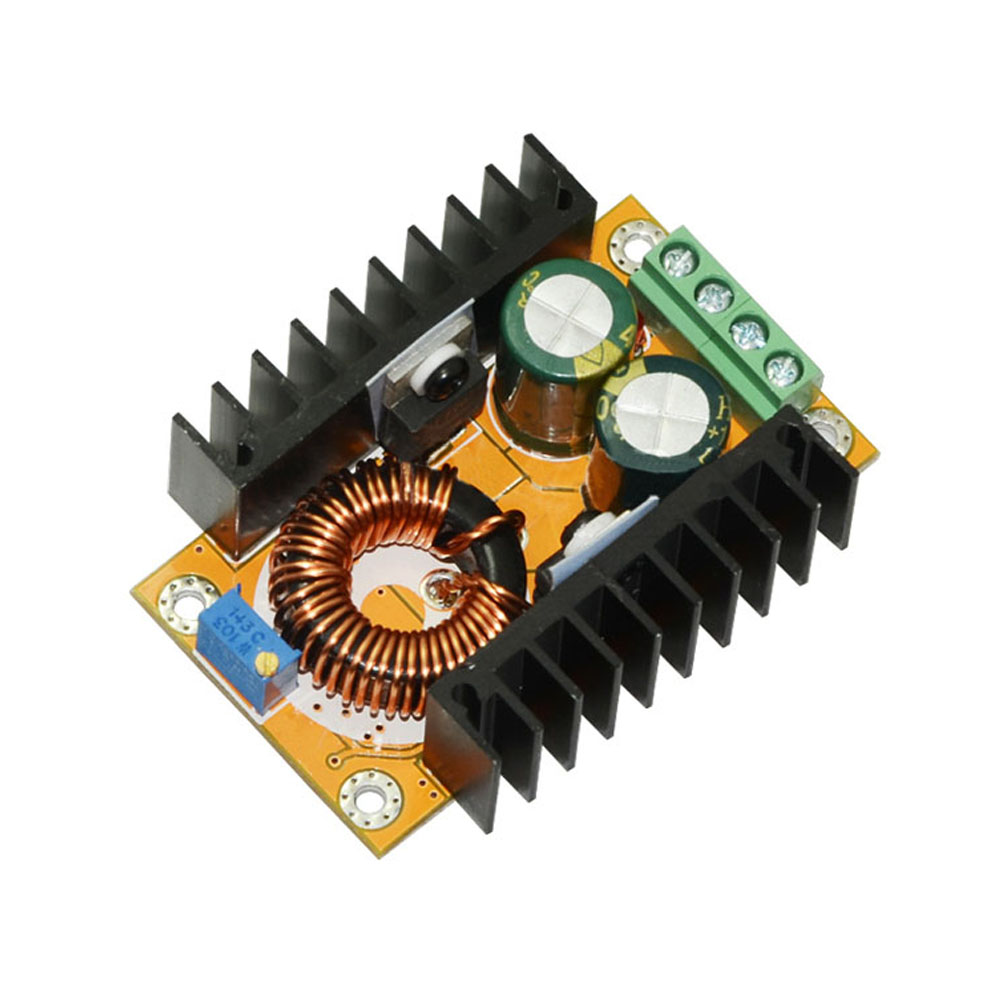

DC-DC Converter 10-30V to 12-35V Adjustable Step Up Boost Stabilizer 12V to 24V Voltage Regulator Power Supply Transformer Battery charging Car Power Inverter

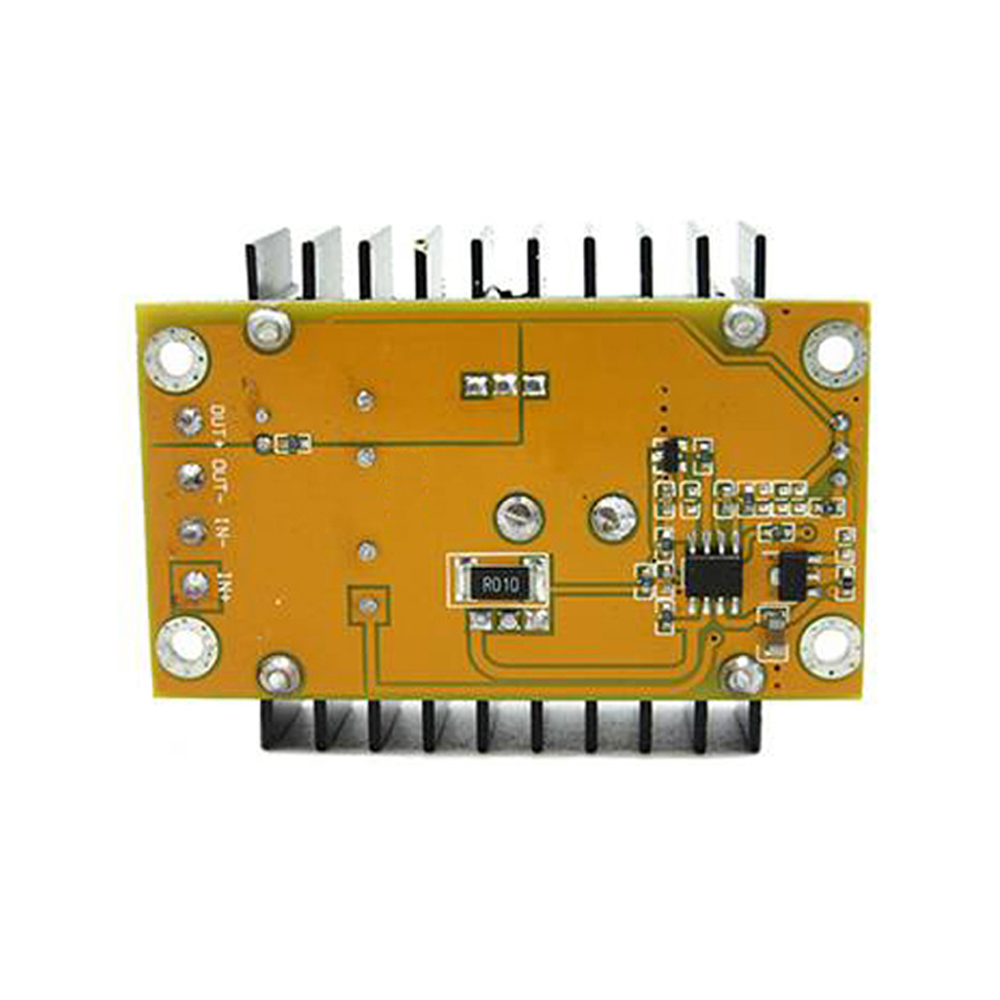

| Product Name | DC-DC Converter 10-30V to 12-35V |
| Module Properties | Non-isolated step-up module (BOOST) |
| Input rated voltage | DC 12V |
| Input voltage range | DC 10-30V |
| Input Current | 16A MAX (Please enhance heat dissipation if more than 10A) |
| Conversion efficiency | ＞90% |
| Output voltage | DC 12-35V Adjustable |
| Output current | 3A MAX |
| Output rated power | 100W MAX natural cooling |
| Easy to drive 65W 90W dual-core notebook. | |
| Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°C | |
| Non-load regulation | ± 1% |
| Load regulation | ± 5% |
| Working temperature | "-25℃~+65℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Output Ripple | 2% (MAX) 20M-bandwidth |
| Rectification | synchronous rectification |
| Full load temperature rise: | 45°C |
| No-load current | 25mA typical |
| Dynamic response speed | 5% 200uS |
| Protection | Over-current, Over-temperature |
| Short-circuit protection | NO, if need please add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| Connection | Solderless terminal |
| Wiring | IN + input positive, IN- input negative, OUT + output positive, OUT- output negative. |
| Product Weight | 40g |

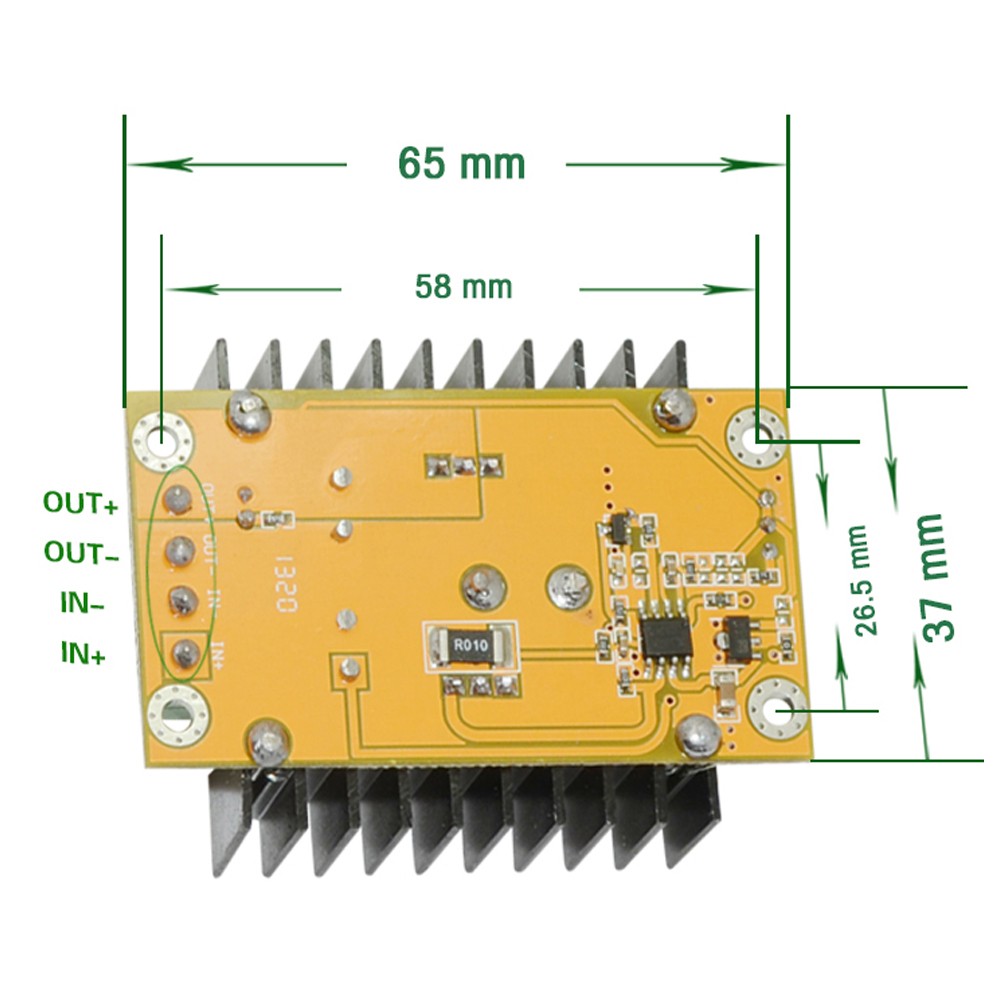

| Product size | 65*37*23.5mm |
| Applications: | 1. DIY output adjustable car power supply, connect 12V battery and output could be 14-35V(adjustable freely).Please make sure that the output voltage is higher than the input voltage. |
| 2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. | |
| 3. Boost charger, you can use the 12V power supply is higher than 12V battery charging, such as 24V battery. | |
| 4. The power supply for your electronic device, as long as the voltage is adjusted to the voltage you need and the current does not exceed the rated current is able to work properly. | |
| 5. Pre-supply system, when you do a project when the time 10-18V input, and your system board 24V power they need about its great power, with ordinary DC-DC power module too small, then you choose this module we will be your best choice, no debugging directly on the machine can work easily achieve efficient high-power boost | |
| Attention: | 1. Within one meter lead wire length not less than 1.5 square feet, if greater than 1 m length wire, bold, recommended 2.5 to 4 square feet of line is better |
| 2. The module operates at high power, high temperature, plus time to install the fan housing, low power without adding a fan, be sure the module heat sink temperature should not exceed 80 degrees. | |
| 3. Using the input can not be reversed output can not be shorted. | |
| 4.12V battery discharge voltage can not be lower than 10.5V, Li-ion battery used in tandem (single 3.7V) discharge voltage can not be lower than 2.7V. | |
| Attention: | |
| Please install according to the the label strictly,positive pole and negative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
