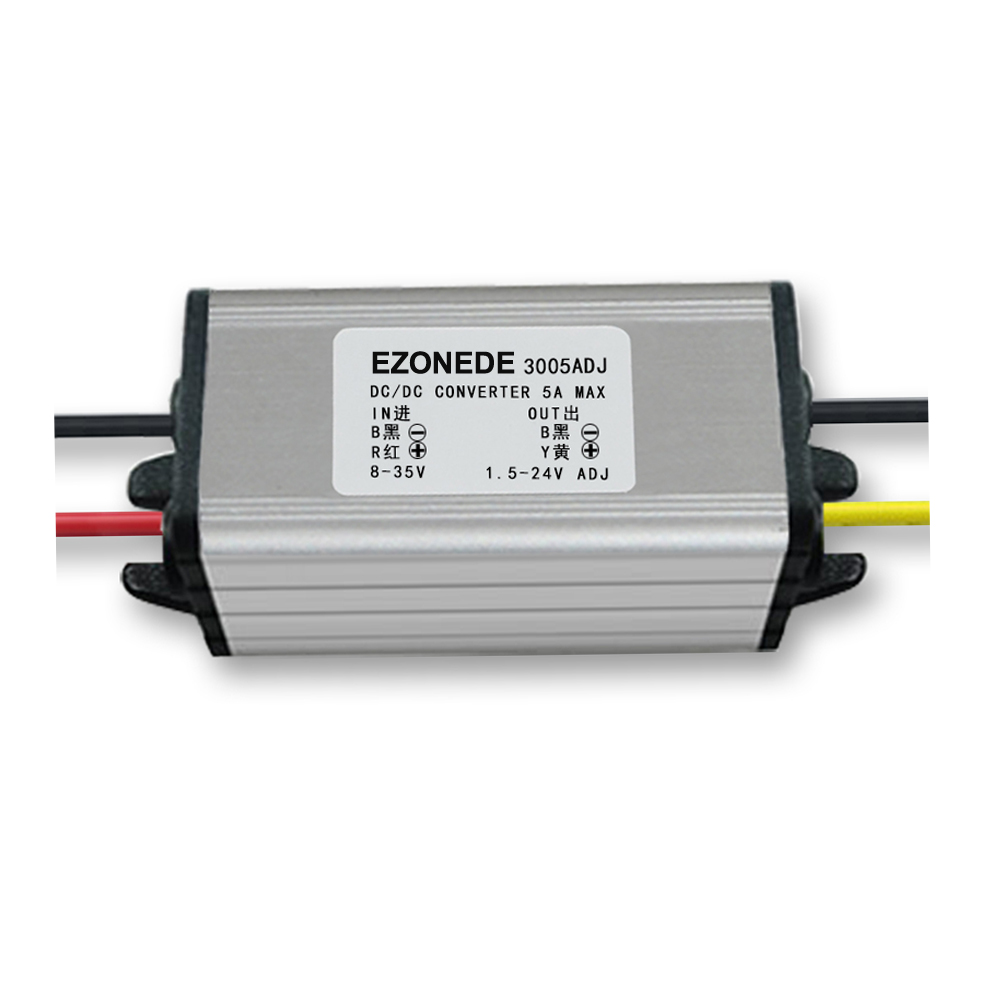

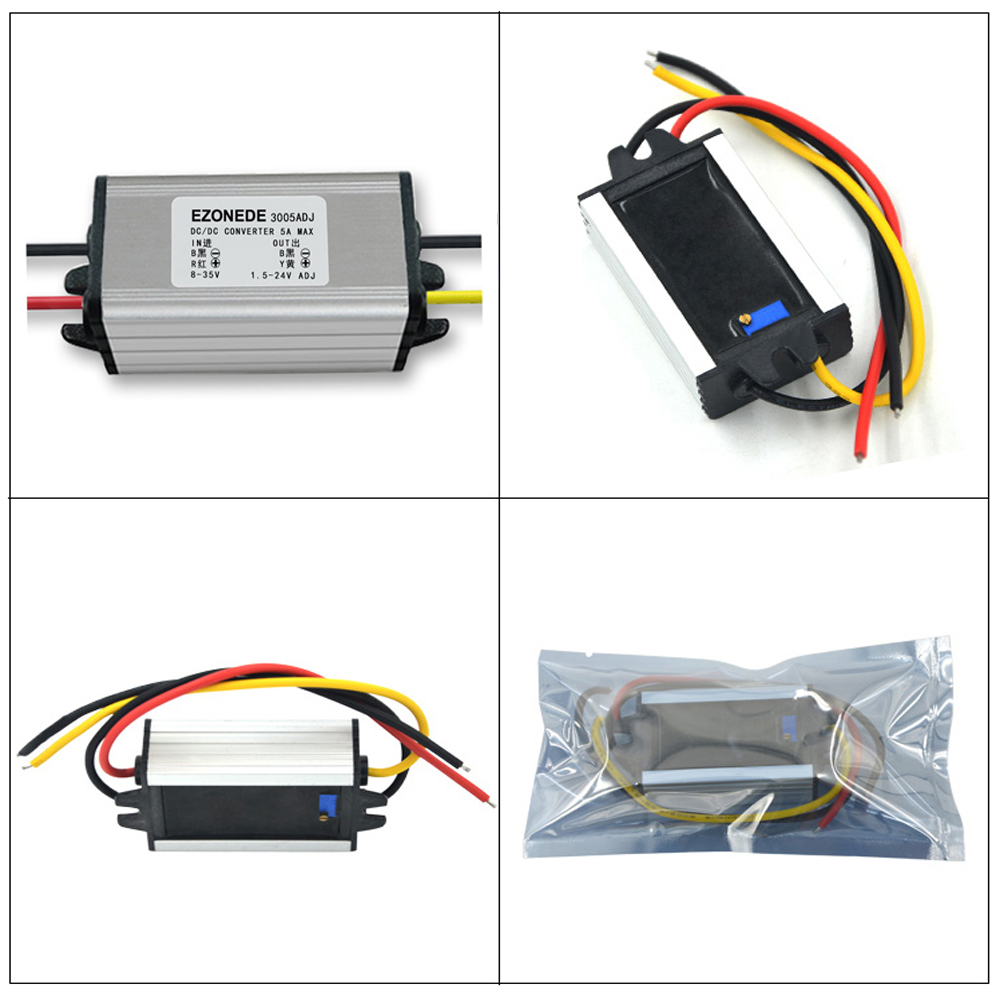

DC/DC Converter 8-35V to 1.5-24V Waterproof Voltage Regulator Buck Adjustable Output Power Supply Transformer
| Product Name | DC-DC Converter 8-35V to 1.5-24V |
| Model | 3005ADJ |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 8-35V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | 1.5-24V adjustable (minimum pressure difference:3V) |
| Output current | 5A MAX |
| Output rated power | 25W Max |
| Output peak power | 30W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | "-25℃~+60℃(extreme -40℃ ~ +80℃, if ambient temperature exceeds 40°c, lower power use,or to enhance heat dissipation) |
| Module Properties | Non-isolated buck module(buck) |
| Rectification | Synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 40°C |
| Protection | Over-current, Over-temperature, |
| Auto-recovery when device is back to normal operating, | |
| Waterproof IP68 design, anti-shock protection | |
| Input Reverse Polarity Protection | NONE( (Please Series diode at the input + in need) |
| Short-circuit protection | NONE(please series fuse at the input + in need) |
| NW | 68g |

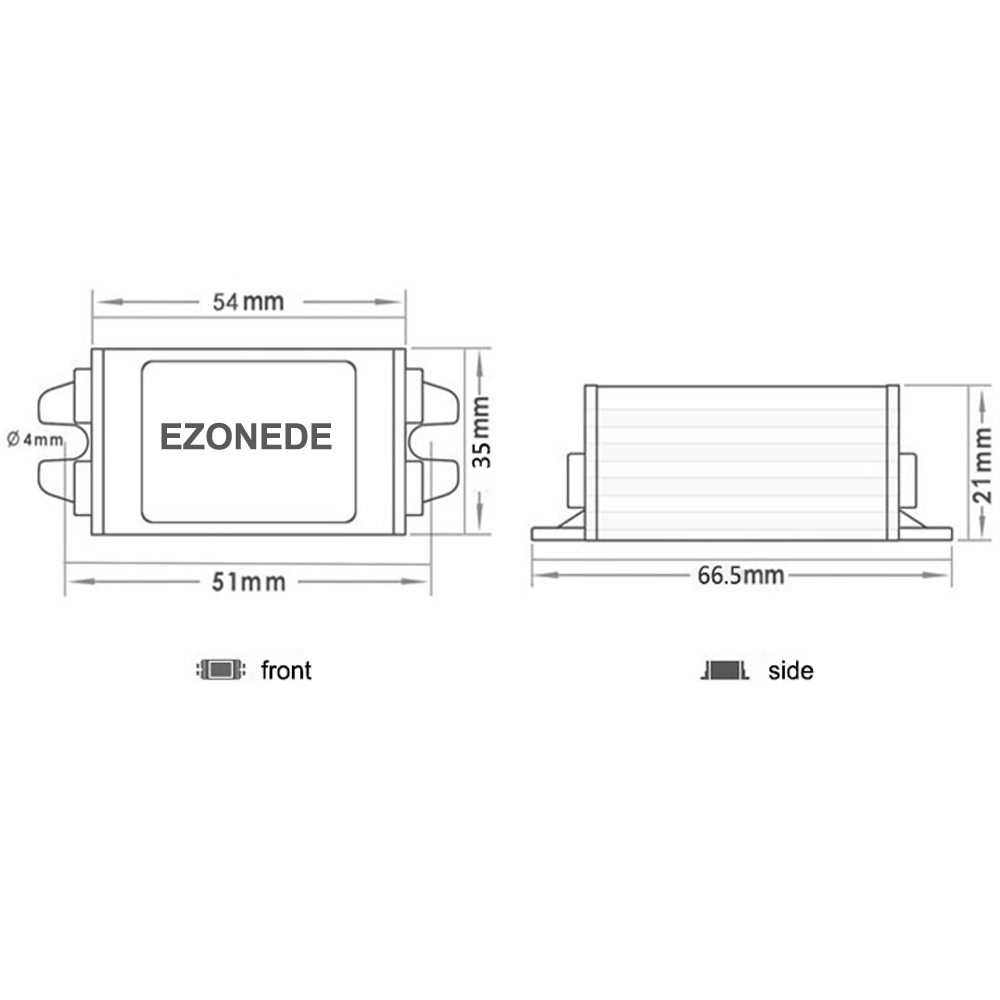

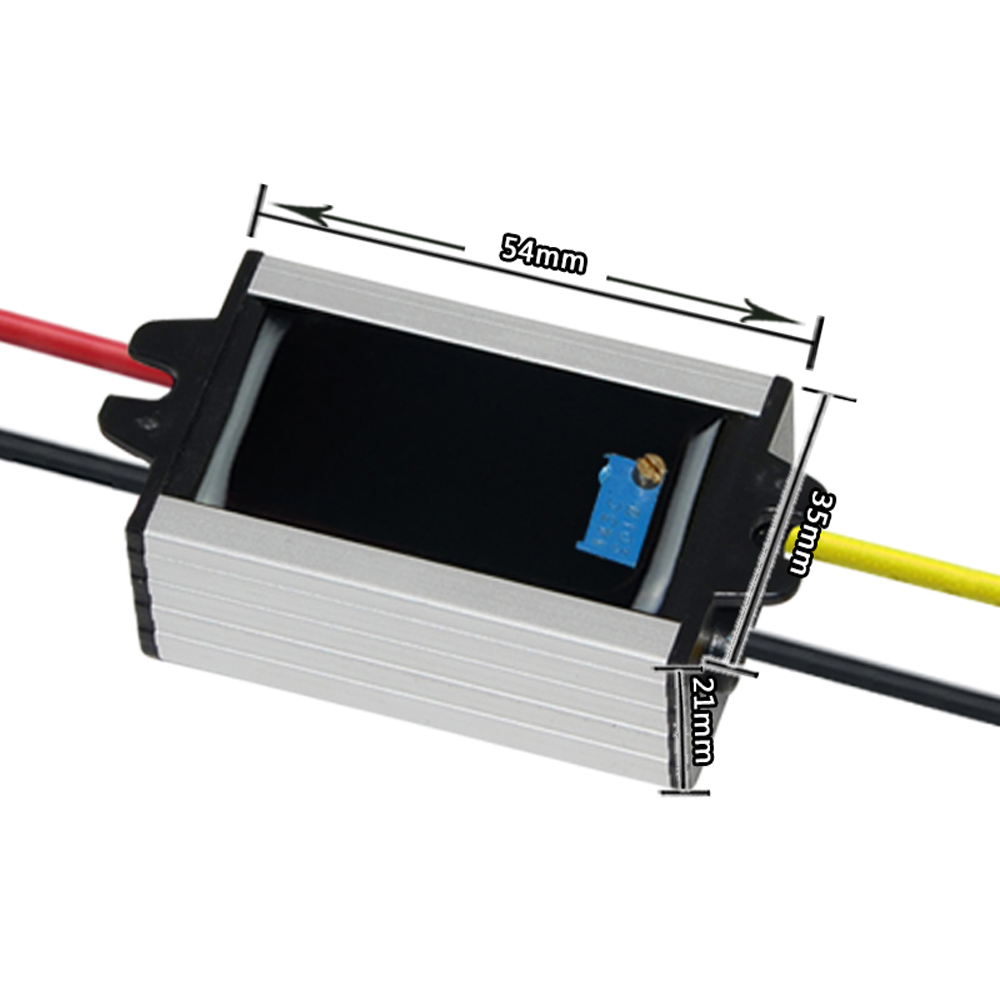

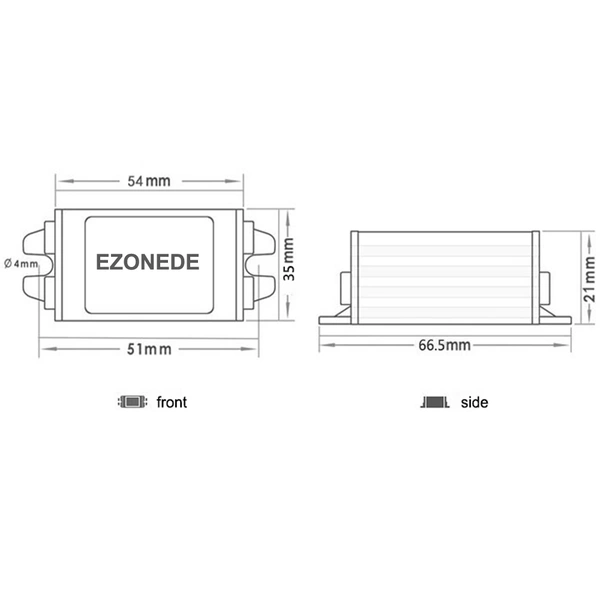

| Product size | 54*35*21mm |
| Attention: | |
| Please install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
| To assure this converter has the sufficient voltage and power please make sure the voltage and power input is enough. | |
