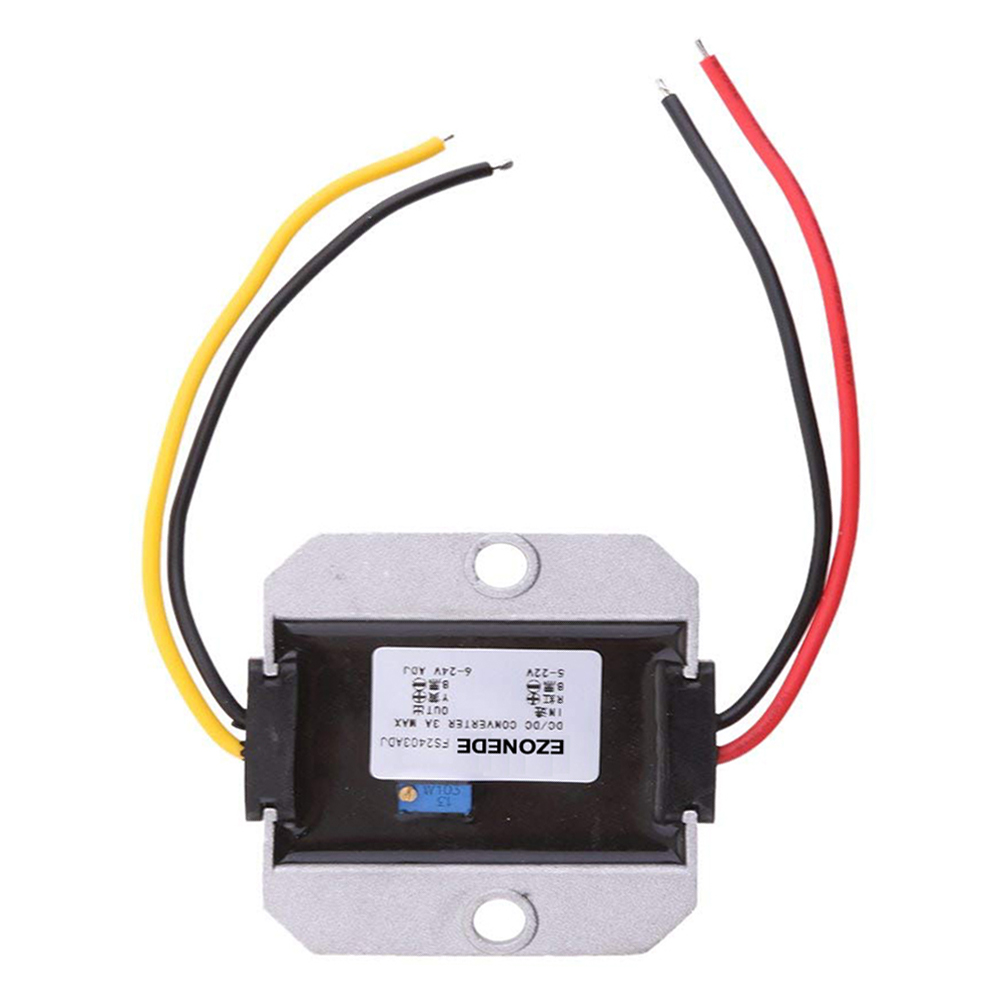

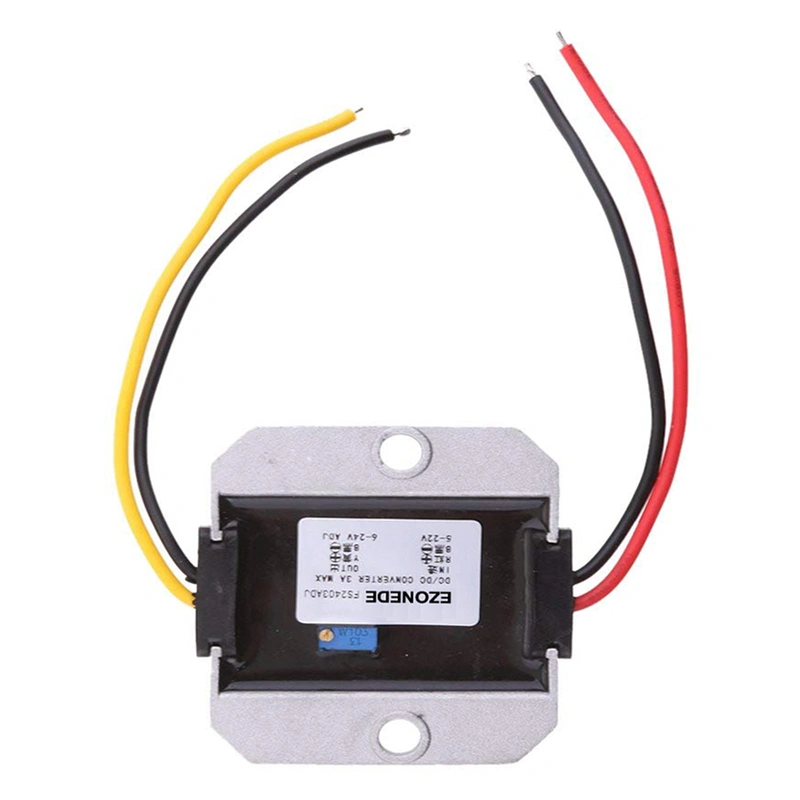

DC/DC Converter 5-22V to 6-24V Waterproof Voltage Regulator Buck Adjustable Output Power Supply Transformer
| Product Name | DC/DC Converter 5-22V to 6-24V |
| Brand | EZONEDE |

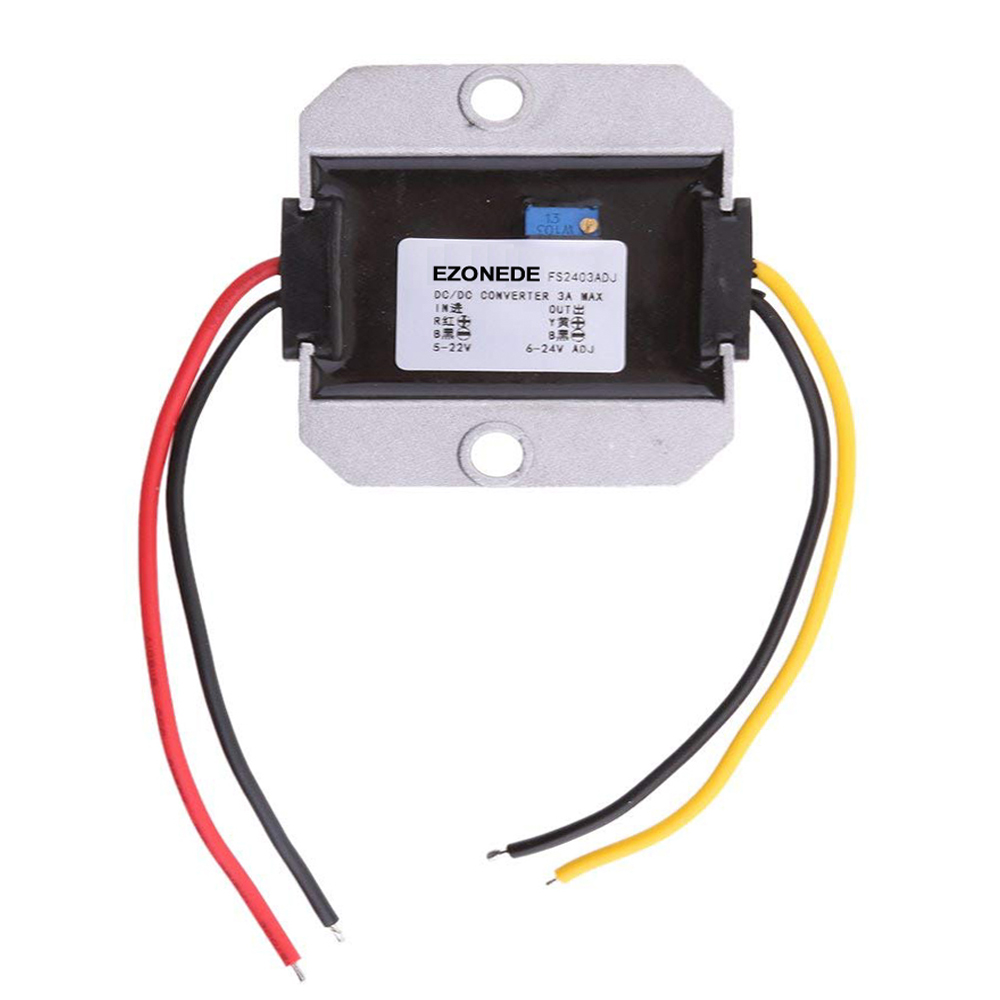

| Model No. | FS2403ADJ |
| Module Properties | Non-isolated boost module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 12V |
| Input Voltage Range | DC 5-22V |
| Output Voltage | DC 6-24V |
| Output Current | 3A |
| Output Power | 72W |
| Conversion Efficiency | 95% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 100mV |
| No-load current | <100mA |
| Working Temperature | -40℃~+85℃ ( If ambient temperature exceeds 40℃, lower power use, or to enhance heat dissipation) |
| Waterproof Rating | IP67 |
| Protection | Over-current protection |
| Over-voltage protection | |
| Overheat protection | |
| Application | DIY Electric motors, Trucks, Golf Carts, Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

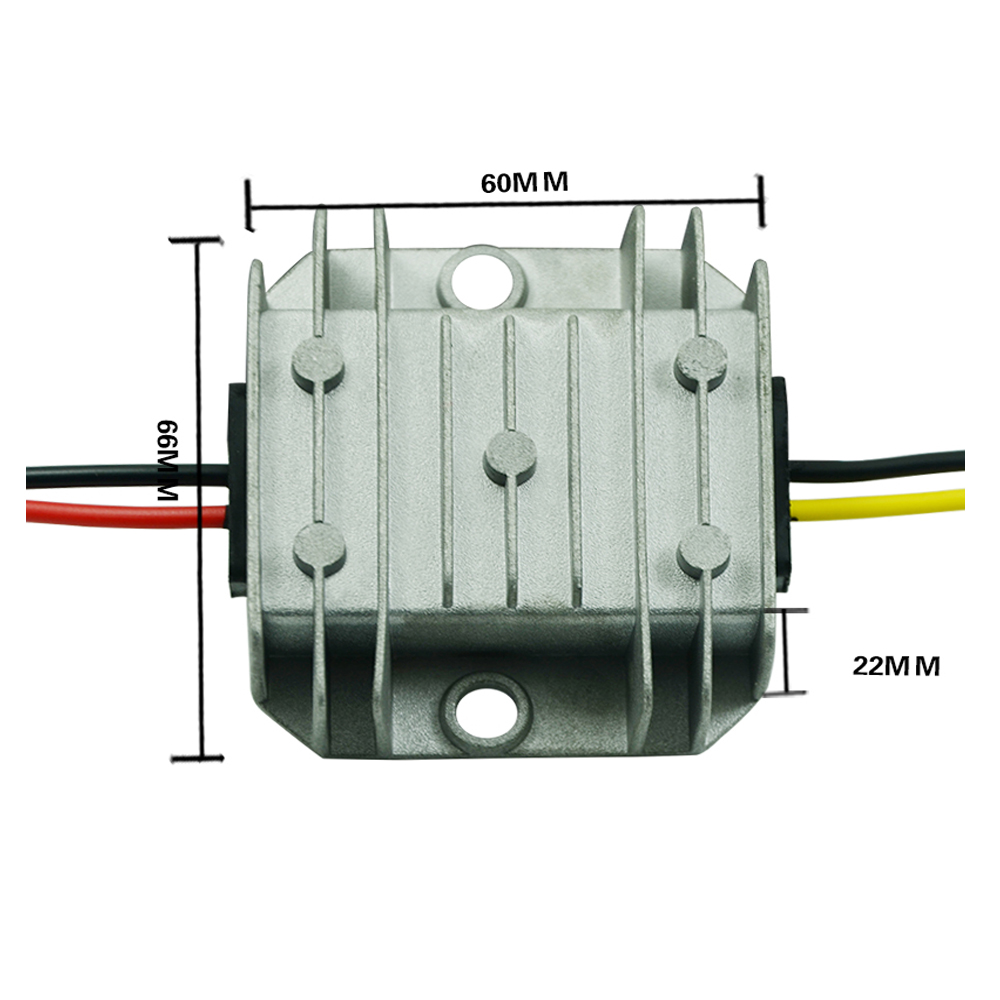

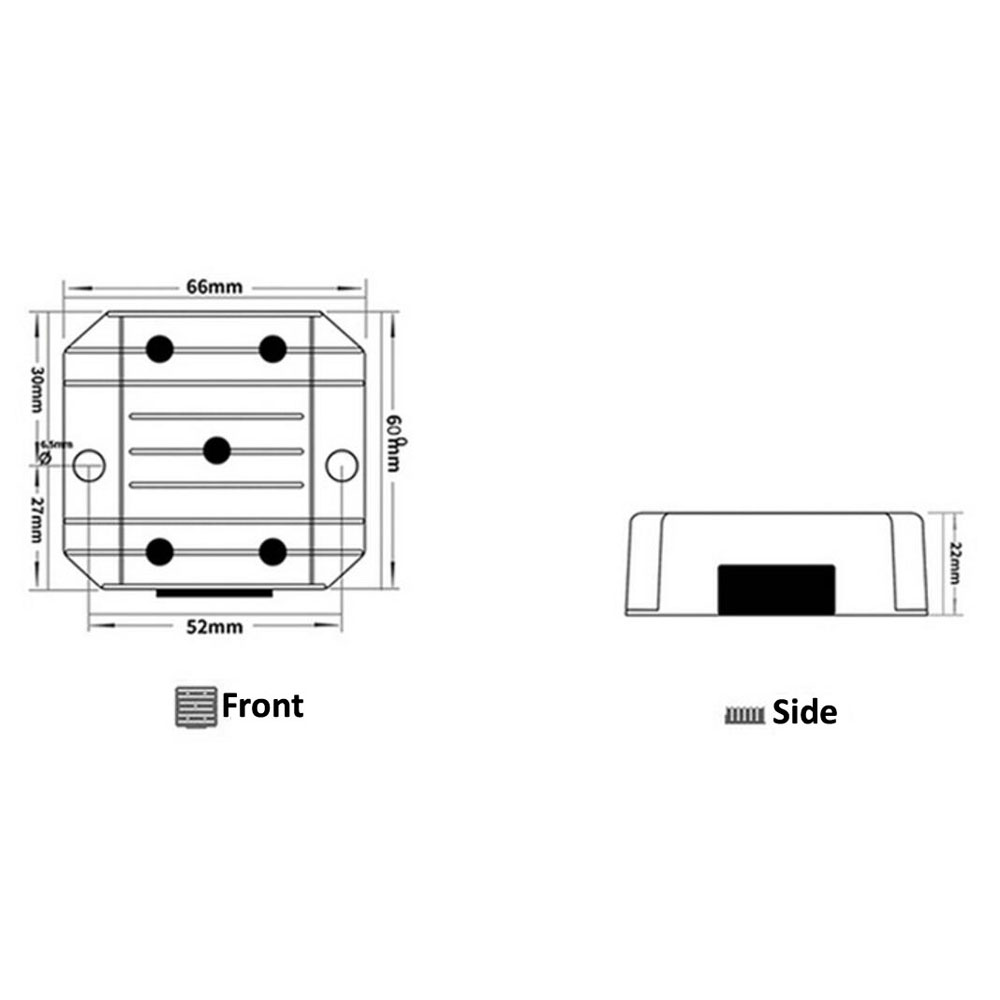

| Product Size (L x W x H) | 66*60*22mm |
| Product Weight | 109g |
| Warranty | 12 months, lifetime up to 100,000 hours |
| Cooling Way | Free air convection |
| OEM&ODM Service | Accept |
