DC/DC Converter 8-40V to 3.3-24V Waterproof Voltage Regulator Buck Adjustable Output Power Supply Transformer
| Product Name | 8-40V to 3.3-24V 3A DC Converter |
| Brand | EZONEDE |
| Model Number | 4003-ADJ |
| Module Properties | Non-isolated buck module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 8-40V |
| Input Voltage Range | DC 3.3-24V |
| Output Voltage | DC 3.3-24V Adjustable |
| Output Current | 3A |
| Output Power | 15W |
| Conversion Efficiency | >93% |
| Voltage regulation | ±1% |
| Load regulation | ± 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | <100mA |
| Working Temperature | -25℃ ~ +65℃(extreme -40℃ ~ +80℃) |
| ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) | |
| Full load temperature rise | 50°c |
| Waterproof Rating | IP68 |
| Protection | Over-current, Over-temperature, Short-circuit protection, |
| Auto-recovery when device is back to normal operating, | |
| Waterproof design, anti-shock protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material | Die-casting aluminum alloy |

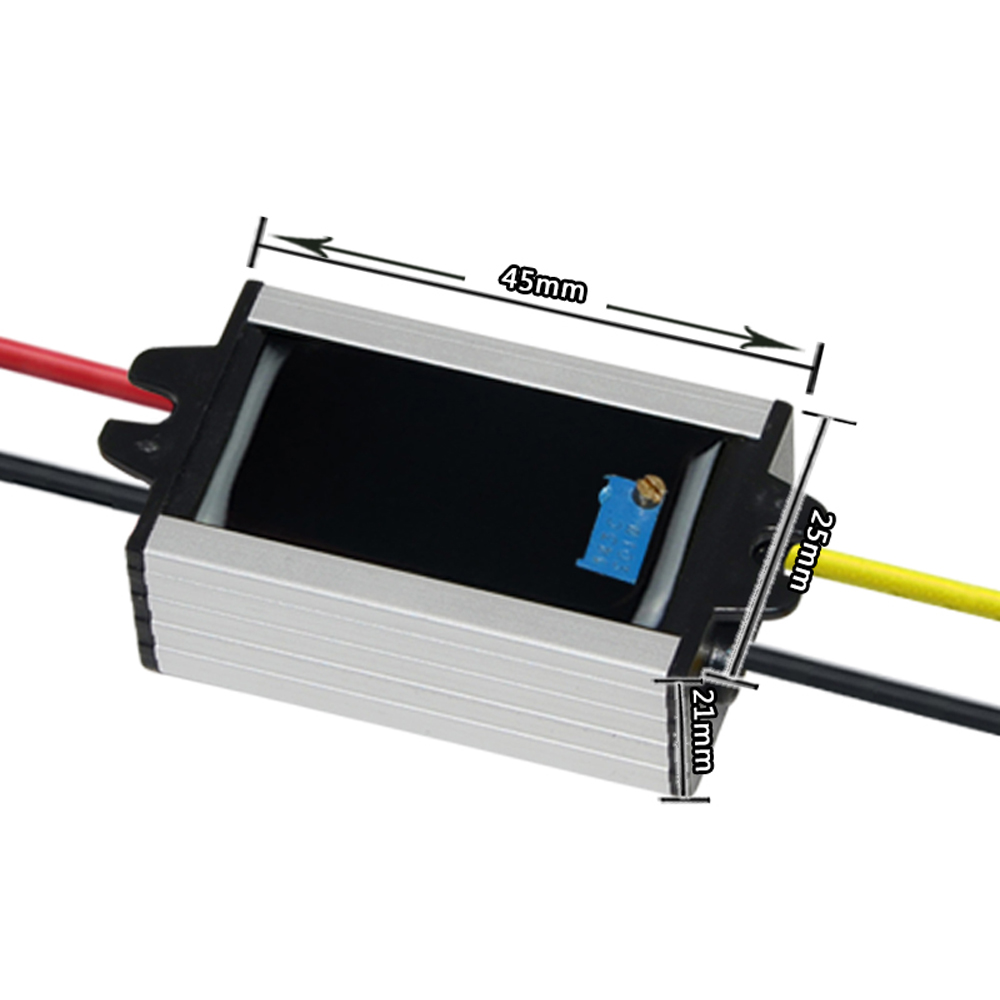

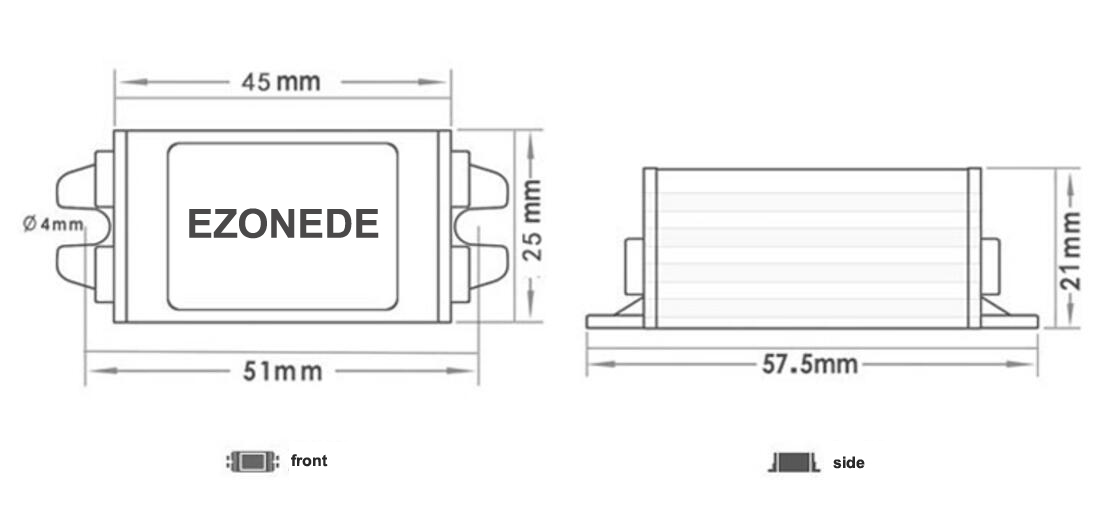

| Product Size (L x W x H) | 45*25*21mm |
| Product Weight | 50g |
| Warranty | 12 months |
| Cooling Way | Free air convection |
| OEM Service | Acceptable |
